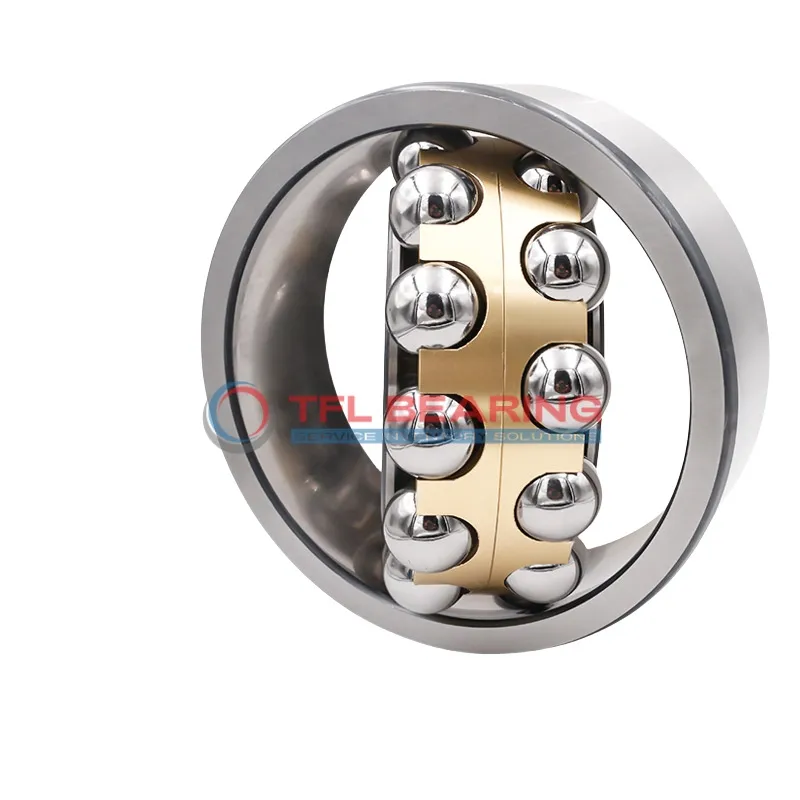

Self Aligning Ball Bearings 2320-M-C3

Brand: TFL Bearing Interchangeable: SKF 2320-M-C3 100 mm × 215 mm × 73 mm Metric Open
Part number: 2320-M-C3
Self Aligning Ball Bearings 2320-M-C3
In Stock
US$767.04 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia100 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia215 mm
Outer Dia Tolerance-0.03mm to 0
Width73 mm
Width Tolerance-0.2mm to 0
External Diameter On Inner Ring135.3 mm
Internal Diameter On Outer Ring183.3 mm
Chamfer Dimension3 mm
Performance
Dynamic Radial Load42,750 lbf
Static Radial Load18,000 lbf
Temperature Range-30° to 110 °C
Max Speed4,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceC3
Weight12.5 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2320-M-C3 is a self-aligning ball bearing with a 100mm bore and 215mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 42750 lbf and operates smoothly at speeds up to 4000 RPM.

Its double-row design and open seal allow for easy alignment and maintenance, while the brass cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial fans or conveyor systems where misalignment might occur.

Weighing 12.5kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

Performance Features of 2320-M-C3 Bearing

2320-M-C3 Bearing is built with chrome steel rings and balls, offering excellent resistance to radial loads.
Its dynamic radial load capacity reaches 42,750 lbf, making it suitable for heavy-duty applications.

The brass cage ensures smooth operation by keeping the balls properly aligned.
This design reduces friction and extends the bearing’s service life.

With a maximum speed of 4,000 rpm, 2320-M-C3 Bearing balances performance and durability.
Its C3 radial clearance allows for thermal expansion in various operating conditions.

2320-M-C3 Bearing operates efficiently in temperatures ranging from -30° to 110°C.
The open seal design simplifies maintenance while ensuring reliable performance.

Application

Industrial Uses of 2320-M-C3 Bearing
The 2320-M-C3 Bearing is commonly used in heavy machinery like conveyors and mixers, where its self-aligning feature compensates for minor misalignments. Its double-row design handles radial loads efficiently, making it suitable for industrial settings.

In automotive applications, 2320-M-C3 Bearing fits well in truck wheel hubs and transmissions, providing reliable performance under varying loads. The brass cage adds durability, ensuring longevity even in demanding conditions.

For automation systems, 2320-M-C3 Bearing supports robotic arms and assembly lines, where smooth rotation is essential. The C3 radial clearance allows for thermal expansion, maintaining performance in continuous operations.

Medical imaging devices benefit from 2320-M-C3 Bearing’s precision, ensuring quiet and stable operation. The chrome steel construction resists wear, making it a dependable choice for sensitive equipment.

In household appliances like washing machines, 2320-M-C3 Bearing reduces vibration and noise. Its robust design handles the constant motion typical in such devices.
