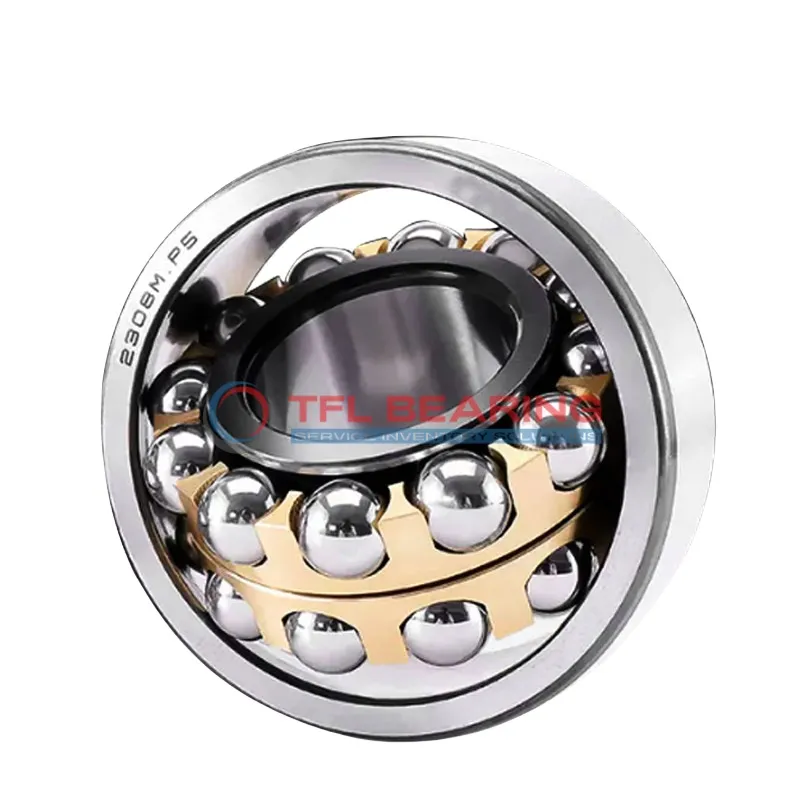

Self Aligning Ball Bearings 2319 M

Self Aligning Ball Bearings 2319 M

The 2319 M is a self-aligning ball bearing with a 95mm bore and 200mm outer diameter, built from sturdy chrome steel for durability. It handles radial loads up to 37125 lbf and operates smoothly at speeds up to 4300 RPM.
Its double-row design and nylon cage provide reliable performance, while the open seal allows for easy lubrication. The bearing works well in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial fans or conveyor systems where misalignment might occur.
Weighing 9.8kg, it’s robust yet manageable for its size, and complies with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2319 M
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 95 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 67 mm
  • Width Tolerance -0.2mm to 0
  • External Diameter On Inner Ring 128 mm
  • Internal Diameter On Outer Ring 170.6 mm
  • Chamfer Dimension 3 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 37125 lbf
  • Static Radial Load 14400 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4300 rpm
  • Weight 9.8 kg
  • Price（$） 476.93
Self Aligning Ball Bearings 2319 M dimension drawing
Download DWG Download PDF

Features

How Does 2319 M Bearing Reduce Friction?

2319 M Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its double-row design distributes radial loads evenly, enhancing performance and reducing wear.
The nylon cage helps maintain ball alignment, further lowering friction and noise.
With a dynamic radial load capacity of 37,125 lbf, it handles heavy-duty applications efficiently.

Engineered for Precision: 2319 M Bearing

2319 M Bearing’s precise dimensions (95 mm×200 mm×67 mm) ensure accurate fit and reliable performance.
The chrome steel construction provides durability, while the nylon cage reduces vibration and noise.
It supports a maximum speed of 4,300 rpm, making it suitable for high-speed applications.
Its open design allows for easy lubrication, maintaining smooth operation over time.

Why Choose 2319 M Bearing for Precision Tasks?

2319 M Bearing’s double-row design offers excellent radial load distribution, ideal for precision tasks.
The chrome steel components resist wear, ensuring long-lasting performance in demanding conditions.
With a static radial load capacity of 14,400 lbf, it provides reliable support for heavy machinery.
Its temperature range of -30° to 110 °C makes it versatile for various industrial applications.

Application

Industrial Uses of 2319 M Bearing
2319 M Bearing is commonly used in heavy industrial machinery, such as large conveyor systems and mining equipment, where its double-row design handles significant radial loads. The self-aligning feature ensures smooth operation even with slight shaft misalignments.

Where Is 2319 M Bearing Used?
In automotive applications, 2319 M Bearing supports components like drive shafts and wheel hubs, providing durability under high stress. Its metric sizing makes it a versatile choice for various vehicle designs.

Built for Heavy-Duty Use: 2319 M Bearing
For wind turbines, 2319 M Bearing’s chrome steel construction and nylon cage offer reliable performance in harsh outdoor conditions. The open seal design allows for easy lubrication, extending service life.

Automotive vs Aerospace: Applications of 2319 M Bearing
In automotive settings, 2319 M Bearing excels in transmissions and axles, while in aerospace, it supports auxiliary systems requiring precision and reliability. The wide temperature range ensures consistent performance in diverse environments.

Perfect Fit for Automation: 2319 M Bearing
2319 M Bearing is ideal for robotic arms and automated production lines, where its self-aligning capability reduces wear from misalignment. The high dynamic load rating ensures long-term reliability in continuous operation.
