Self Aligning Ball Bearings 2319-K-M-C3

Brand: TFL Bearing Interchangeable: SKF 2319-K-M-C3 95 mm × 200 mm × 67 mm Metric Open
Part number: 2319-K-M-C3
Self Aligning Ball Bearings 2319-K-M-C3
In Stock
US$723.61 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia95 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia200 mm
Outer Dia Tolerance-0.03mm to 0
Width67 mm
Width Tolerance-0.2mm to 0
External Diameter On Inner Ring128 mm
Internal Diameter On Outer Ring170.6 mm
Chamfer Dimension3 mm
Performance
Dynamic Radial Load37,125 lbf
Static Radial Load14,400 lbf
Temperature Range-30° to 110 °C
Max Speed4,300 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceC3
Weight9.8 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
REACHCompliant

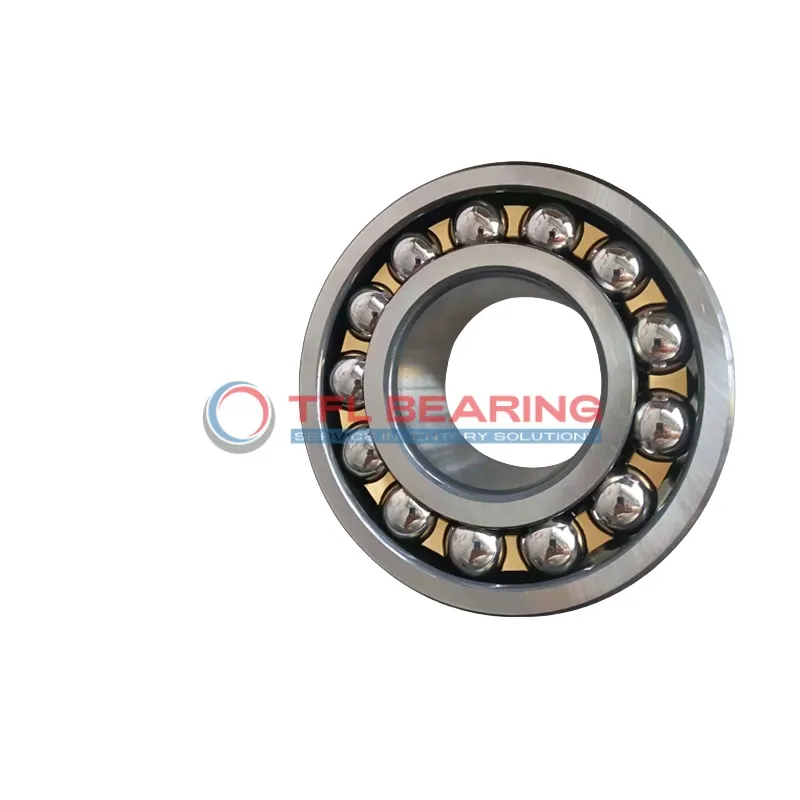

Dimension drawing · click to enlarge

Description

The 2319-K-M-C3 is a self-aligning ball bearing with a 95mm tapered bore and 200mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 37125 lbf and operates smoothly at speeds up to 4300 RPM.
Its double-row design and brass cage provide durability and stability, even under heavy use. The open seal type allows for easy lubrication and maintenance.
This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for industrial machinery or equipment where misalignment might occur.
Weighing 9.8kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for various applications.

Features

Why Choose 2319-K-M-C3 Bearing for Precision Tasks?

2319-K-M-C3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load reaches 37125 lbf, making it suitable for heavy-duty applications.
The brass cage maintains ball alignment, reducing friction and enhancing durability.
With a maximum speed of 4,300 rpm, it offers reliable performance in various industrial settings.

Application

Industrial Uses of 2319-K-M-C3 Bearing
2319-K-M-C3 Bearing is commonly used in heavy machinery like paper mills and mining equipment, where its self-aligning feature compensates for shaft misalignment. The brass cage ensures smooth operation even under high radial loads.

In automotive applications, 2319-K-M-C3 Bearing fits well in truck wheel hubs and drivetrains, thanks to its tapered bore design for secure mounting. Its C3 clearance allows for thermal expansion in high-speed scenarios.

For wind turbines, 2319-K-M-C3 Bearing handles variable loads and misalignment caused by tower flexing. The chrome steel construction provides long service life in harsh outdoor conditions.

Where Is 2319-K-M-C3 Bearing Used?
You’ll often find 2319-K-M-C3 Bearing in conveyor systems, where its double-row design manages heavy radial loads. The open seal type simplifies relubrication during maintenance cycles.

In industrial fans, 2319-K-M-C3 Bearing accommodates slight shaft deflections while maintaining stable rotation. Its metric dimensions make it compatible with European-designed equipment.

Built for Heavy-Duty Use: 2319-K-M-C3 Bearing
2319-K-M-C3 Bearing excels in construction equipment like cranes, where shock loads are frequent. The tapered bore ensures firm seating on shafts during intense vibration.

For printing presses, 2319-K-M-C3 Bearing maintains precise alignment of rollers under fluctuating speeds. The lubricated design reduces friction during continuous operation.

Light-Duty vs Heavy-Duty: Best Uses for 2319-K-M-C3 Bearing
In light-duty applications like agricultural machinery, 2319-K-M-C3 Bearing offers reliable performance with minimal maintenance. The brass cage resists corrosion from occasional chemical exposure.

For heavy-duty uses like steel rolling mills, 2319-K-M-C3 Bearing withstands extreme radial forces. Its C3 clearance accommodates heat buildup during prolonged operation.
