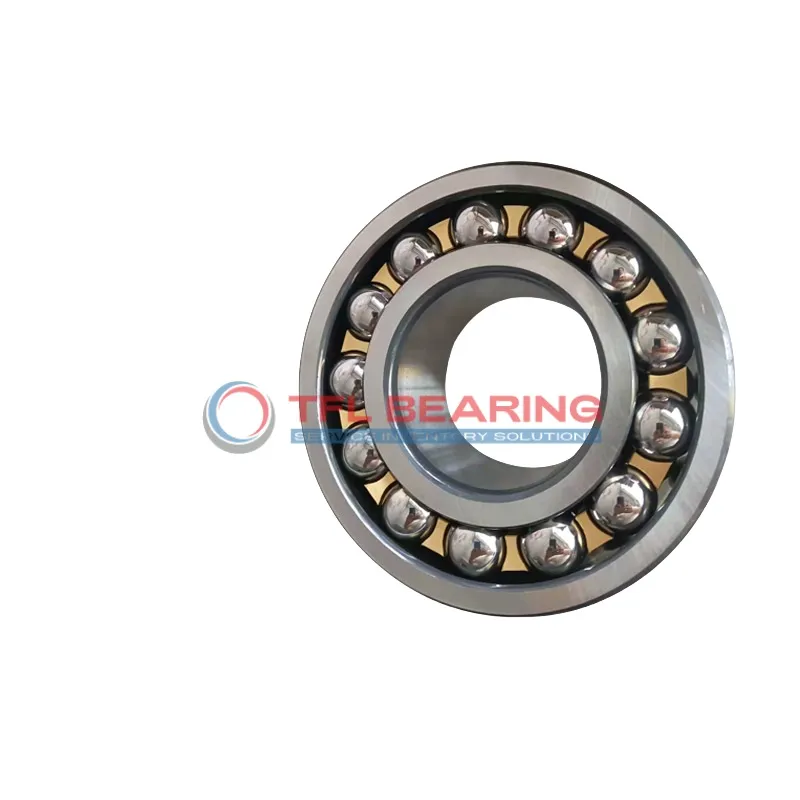

Self Aligning Ball Bearings 2318-K-M-C3

Brand: TFL Bearing Interchangeable: SKF 2318-K-M-C3 90 mm × 190 mm × 64 mm Metric Open
Part number: 2318-K-M-C3
Self Aligning Ball Bearings 2318-K-M-C3
In Stock
US$671.50 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia90 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia190 mm
Outer Dia Tolerance-0.03mm to 0
Width64 mm
Width Tolerance-0.2mm to 0
External Diameter On Inner Ring121 mm
Internal Diameter On Outer Ring162.2 mm
Chamfer Dimension3 mm
Performance
Dynamic Radial Load33,975 lbf
Static Radial Load12,825 lbf
Temperature Range-30° to 110 °C
Max Speed4,500 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceC3
Weight8.2 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2318-K-M-C3 is a self-aligning ball bearing with a 90mm tapered bore and 190mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 33975 lbf and runs smoothly at speeds up to 4500 RPM.

Its double-row design and brass cage offer reliable performance, while the open seal allows for easy lubrication. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial fans or conveyor systems where misalignment might occur.

Weighing 8.2kg, it’s built to handle demanding conditions. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

How Is 2318-K-M-C3 Bearing Engineered for Reliability?

2318-K-M-C3 Bearing features a double-row design with chrome steel rings and balls, offering strong radial load capacity up to 33975 lbf.
Its brass cage ensures smooth ball alignment, reducing friction and wear during operation.

The bearing’s C3 radial clearance allows for thermal expansion, making it suitable for varying temperatures.
With a maximum speed of 4,500 rpm, it maintains performance in high-speed applications.

2318-K-M-C3 Bearing’s tapered bore design simplifies installation and enhances stability.
Its open seal type facilitates easy lubrication, ensuring long service life with minimal maintenance.

Application

Key Fields for 2318-K-M-C3 Bearing
2318-K-M-C3 Bearing is commonly used in heavy industrial equipment like conveyor systems and large fans, where its self-aligning feature compensates for minor misalignments. The double-row design provides excellent radial load capacity, making it reliable for continuous operation.

In automotive applications, 2318-K-M-C3 Bearing fits well in truck wheel hubs and transmissions, handling radial loads with ease. The brass cage ensures smooth rotation even under high temperatures and heavy loads.

For automation systems, 2318-K-M-C3 Bearing is a solid choice for robotic arms and assembly lines, where precision and durability are key. Its C3 radial clearance allows for thermal expansion, maintaining performance in varying conditions.

Medical imaging devices benefit from 2318-K-M-C3 Bearing’s consistent performance and low maintenance needs. The chrome steel construction offers long-lasting reliability in critical healthcare environments.

In household appliances like washing machines, 2318-K-M-C3 Bearing reduces vibration and noise. Its open design simplifies lubrication, extending the bearing’s service life in everyday use.
