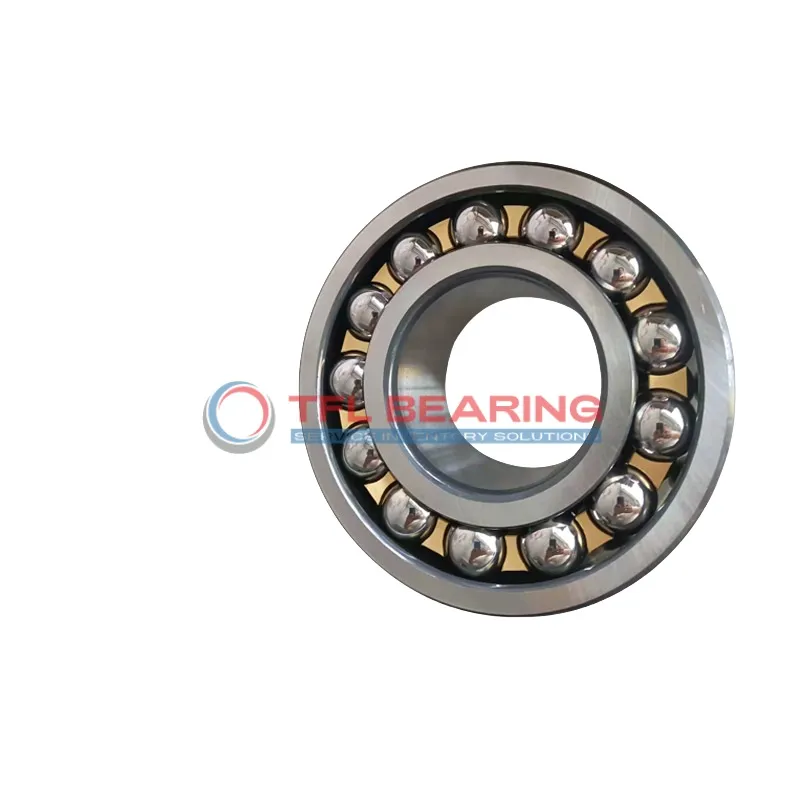

Self Aligning Ball Bearings 2316 KM

Self Aligning Ball Bearings 2316 KM

The 2316 KM is a self-aligning ball bearing with an 80mm bore and 170mm outer diameter, crafted from sturdy chrome steel for durability. It handles radial loads up to 30375 lbf and operates smoothly at speeds up to 5300 RPM.

Its double-row design and nylon cage provide stability and reduce friction, making it suitable for misaligned shafts. The open seal allows for easy lubrication, ensuring long service life.

This bearing works well in temperatures ranging from -30°C to 110°C, making it versatile for various environments. It’s interchangeable with SKF bearings, offering a reliable replacement option.

Weighing 6.13kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, it’s a safe choice for machinery like conveyors or fans where alignment flexibility is needed.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2316 KM
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 58 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 104.4 mm
  • Internal Diameter On Outer Ring 145.1 mm
  • Chamfer Dimension 2.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 30375 lbf
  • Static Radial Load 11025 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5300 rpm
  • Weight 6.13 kg
  • Price（$） 307.82
Self Aligning Ball Bearings 2316 KM dimension drawing
Download DWG Download PDF

Features

Performance Features of 2316 KM Bearing

2316 KM Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 30,375 lbf, making it suitable for heavy-duty applications.

The double-row design enhances stability and load distribution, ensuring smooth operation.
With a maximum speed of 5,300 rpm, it balances performance and durability.

Nylon cage material reduces friction and noise, improving efficiency.
2316 KM Bearing operates reliably in temperatures ranging from -30° to 110°C.

Its open seal type allows for easy lubrication, extending maintenance intervals.
The precise dimensions ensure compatibility with interchangeable brands like SKF.

Application

Industrial Uses of 2316 KM Bearing
2316 KM Bearing is commonly used in heavy machinery like paper mills and mining equipment, where its self-aligning feature compensates for shaft misalignment. The double-row design ensures reliable performance under heavy radial loads.

In automotive applications, 2316 KM Bearing fits well in truck wheel hubs and transmissions, thanks to its durable chrome steel construction. The open seal design allows for easy lubrication, extending service life in demanding conditions.

For conveyor systems, 2316 KM Bearing’s nylon cage reduces friction and noise, making it ideal for continuous operation. Its metric dimensions ensure compatibility with standard industrial components across various regions.

In wind turbines, 2316 KM Bearing handles variable loads and misalignment caused by wind forces. The wide temperature range ensures stable performance in both hot and cold environments.
