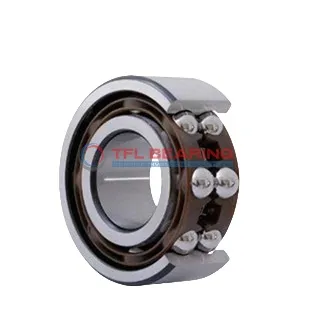

Double Row Angular Contact Ball Bearings (General) 3208 ATN9

Brand: TFL Bearing Interchangeable: SKF 3208 ATN9 40 mm × 80 mm × 30.2 mm Metric Open
Part number: 3208 ATN9
Double Row Angular Contact Ball Bearings (General) 3208 ATN9
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia40 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia80 mm
Outer Dia Tolerance-0.011mm to 0
Width30.2 mm
Width Tolerance-0.05mm to 0
Chamfer Dimension1.1 mm
Performance
Dynamic Radial Load10,800 lbf
Static Radial Load8,212 lbf
Max Speed8,000 rpm
Temperature Range-30° to 110 °C
Characteristics
System of MeasurementMetric
Bearing TypeBall
For Load DirectionAngular Contact
ConstructionDouble Row
Seal TypeOpen
Distance Pressure Point (a)46 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight0.57 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 3208 ATN9 is a double-row angular contact ball bearing with a 40mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 10800 lbf and operates smoothly at speeds up to 8000 RPM.

Its open design and nylon cage reduce friction, ensuring quiet and efficient performance. The bearing is pre-lubricated for easy installation and works in temperatures from -30°C to 110°C.

With a P6 tolerance class, it offers reliable precision for demanding applications. Ideal for machinery like pumps or gearboxes where angular contact and high radial loads are needed.

Weighing 0.57kg, it balances durability with manageable size. Compliant with RoHS and REACH standards, it’s a safe and versatile choice.

Features

Performance Features of 3208 ATN9 Bearing

3208 ATN9 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 10800 lbf, ensuring reliable performance in various applications.
The nylon cage helps maintain ball alignment, reducing friction and extending service life.
With a maximum speed of 8,000 rpm, it delivers a balance of durability and efficiency.

Why Choose 3208 ATN9 Bearing for Precision Tasks?

3208 ATN9 Bearing features a double-row angular contact design, ideal for handling combined loads.
The P6 tolerance class ensures high precision, making it suitable for demanding applications.
Its chrome steel construction provides excellent wear resistance and long-term reliability.
The open design allows for easy lubrication, enhancing performance in various conditions.

Engineered for Precision: 3208 ATN9 Bearing

3208 ATN9 Bearing’s double-row design enhances load distribution, improving overall stability.
The precise chamfer dimension of 1.1 mm ensures smooth integration into assemblies.
With a temperature range of -30° to 110 °C, it performs well in diverse environments.
The lubricated design reduces maintenance needs while maintaining optimal performance.

Steel vs Ceramic Bearings: Strengths of 3208 ATN9 Bearing

3208 ATN9 Bearing uses chrome steel for both rings and balls, offering durability and cost-effectiveness.
Its static radial load capacity of 8212 lbf ensures reliable operation under heavy loads.
The nylon cage minimises noise, making it suitable for precision machinery.
Weighing just 0.57 kg, it provides a good balance between strength and weight.

Application

Industrial Uses of 3208 ATN9 Bearing
3208 ATN9 Bearing is commonly used in machine tools, where its double-row design handles combined radial and axial loads efficiently. The open seal type allows for easy lubrication, extending service life in demanding conditions.

Where Is 3208 ATN9 Bearing Used?
In automotive applications, 3208 ATN9 Bearing supports wheel hubs and transmission systems, thanks to its high dynamic radial load capacity. The metric sizing ensures compatibility with a variety of vehicle designs.

Built for Heavy-Duty Use: 3208 ATN9 Bearing
This bearing excels in conveyor systems, where its chrome steel construction withstands continuous operation. The nylon cage reduces friction, making it suitable for high-speed environments.

Automotive vs Aerospace: Applications of 3208 ATN9 Bearing
In automotive settings, 3208 ATN9 Bearing provides reliable performance in steering systems. For aerospace, its precision tolerances make it ideal for auxiliary equipment requiring consistent accuracy.

Perfect Fit for Automation: 3208 ATN9 Bearing
3208 ATN9 Bearing is a great choice for robotic arms, where its angular contact design ensures smooth movement. The P6 tolerance class guarantees reliable performance in precision-driven tasks.
