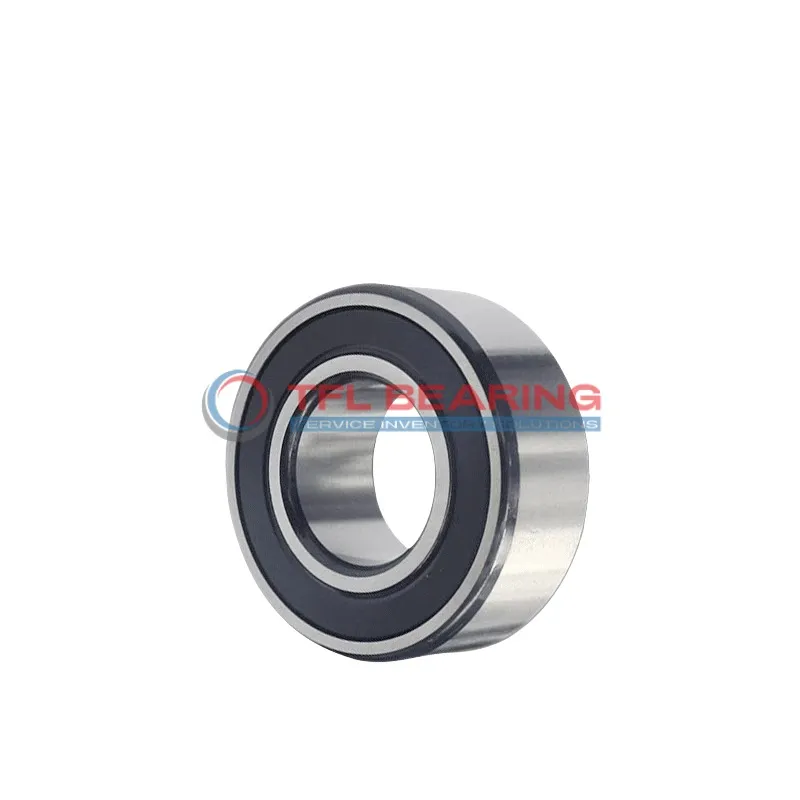

Double Row Angular Contact Ball Bearings (General) 3210 A-2RS1

Brand: TFL Bearing Interchangeable: SKF 3210 A-2RS1 50 mm × 90 mm × 30.2 mm Metric Sealed
Part number: 3210 A-2RS1
Double Row Angular Contact Ball Bearings (General) 3210 A-2RS1
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia50 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia90 mm
Outer Dia Tolerance-0.013mm to 0
Width30.2 mm
Width Tolerance-0.05mm to 0
Chamfer Dimension1.1 mm
Performance
Dynamic Radial Load11,475 lbf
Static Radial Load9,562 lbf
Max Speed4,800 rpm
Temperature Range-30° to 110 °C
Characteristics
System of MeasurementMetric
Bearing TypeBall
For Load DirectionAngular Contact
ConstructionDouble Row
Seal TypeSealed
Distance Pressure Point (a)52 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight0.65 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialStainless Steel
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 3210 A-2RS1 is a double-row angular contact ball bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 11475 lbf and operates smoothly at speeds up to 4800 RPM.

Its sealed design keeps lubrication in and contaminants out, while the stainless steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like pumps or gearboxes where angular contact loads are common.

Weighing 0.65kg, it offers a robust yet manageable size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

Why Choose 3210 A-2RS1 Bearing for Precision Tasks?

3210 A-2RS1 Bearing features a double-row angular contact design, ensuring precise load distribution and smooth operation.
Its chrome steel rings and balls provide excellent durability, while the stainless steel cage maintains alignment under stress.

With a dynamic radial load capacity of 11475 lbf, it handles demanding applications with ease.
The sealed design protects against contaminants, extending its service life in harsh environments.

3210 A-2RS1 Bearing operates efficiently at speeds up to 4,800 rpm, balancing performance and reliability.
Its P6 tolerance class ensures consistent precision, making it ideal for high-accuracy tasks.

Application

Industrial Uses of 3210 A-2RS1 Bearing
3210 A-2RS1 Bearing is commonly used in machine tools, where its double-row design handles combined radial and axial loads efficiently. The sealed construction helps keep contaminants out, extending service life in dusty workshop environments.

In automotive applications, 3210 A-2RS1 Bearing works well in wheel hubs and transmissions, thanks to its angular contact capability. The P6 tolerance ensures precise alignment, which is crucial for smooth vehicle operation.

For automation equipment, 3210 A-2RS1 Bearing provides reliable performance in robotic arms and conveyor systems. Its chrome steel rings and stainless steel cage offer good resistance to wear in continuous operation.

Where Is 3210 A-2RS1 Bearing Used?
You’ll often find 3210 A-2RS1 Bearing in industrial fans, where its sealed design protects against airborne particles. The lubricated construction reduces maintenance needs while operating at moderate speeds.

In packaging machinery, 3210 A-2RS1 Bearing supports rotating shafts that require both radial and thrust load capacity. The 90mm outer diameter makes it suitable for medium-duty applications across various industries.

Built for Heavy-Duty Use: 3210 A-2RS1 Bearing
3210 A-2RS1 Bearing handles demanding conditions in construction equipment like small cranes and hoists. Its 30.2mm width provides stability under heavy loads while maintaining compact dimensions.

The bearing’s 50mm bore size fits standard shafts in agricultural machinery, where sealed protection against dirt and moisture is essential. Chrome steel components ensure durability in these tough environments.

Medical vs Industrial: Where 3210 A-2RS1 Bearing Excels
While not typically used in medical devices, 3210 A-2RS1 Bearing shines in industrial settings like food processing equipment. The sealed design prevents lubricant contamination, meeting hygiene requirements.

In printing presses, this bearing’s angular contact design accommodates the axial forces from roller movements. The ABEC-3 precision ensures consistent print quality over long production runs.
