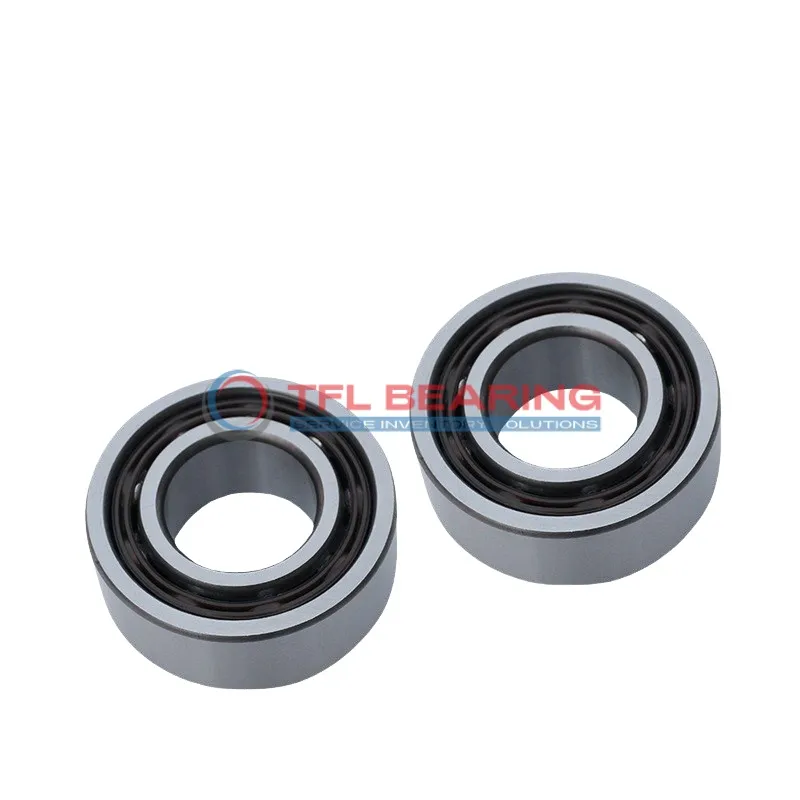

Double Row Angular Contact Ball Bearings (General) 3213 A-2RS1

Brand: TFL Bearing Interchangeable: SKF 3213 A-2RS1 65 mm × 120 mm × 38.1 mm Metric Sealed
Part number: 3213 A-2RS1
Double Row Angular Contact Ball Bearings (General) 3213 A-2RS1
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia65 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia120 mm
Outer Dia Tolerance-0.013mm to 0
Width38.1 mm
Width Tolerance-0.05mm to 0
Chamfer Dimension1.5 mm
Performance
Dynamic Radial Load18,135 lbf
Static Radial Load16,538 lbf
Max Speed3,600 rpm
Temperature Range-30° to 110 °C
Characteristics
System of MeasurementMetric
Bearing TypeBall
For Load DirectionAngular Contact
ConstructionDouble Row
Seal TypeSealed
Distance Pressure Point (a)71 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight1.75 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialStainless Steel
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 3213 A-2RS1 is a double-row angular contact ball bearing with a 65mm bore and 120mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 18135 lbf and operates smoothly at speeds up to 3600 RPM.

Its sealed design keeps lubrication in and contaminants out, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for applications like pumps or gearboxes where angular contact and radial loads are present.

Weighing 1.75kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use. The P6 tolerance class provides consistent precision for demanding tasks.

Features

Performance Features of 3213 A-2RS1 Bearing

3213 A-2RS1 Bearing is built with double-row angular contact design, offering excellent radial load capacity.
Its dynamic radial load rating of 18135 lbf ensures reliable performance in demanding applications.

The sealed construction of 3213 A-2RS1 Bearing protects against contaminants, extending its service life.
Chrome steel rings and balls provide durability, while the stainless steel cage maintains precise ball alignment.

With a maximum speed of 3,600 rpm, 3213 A-2RS1 Bearing balances efficiency and stability.
Its P6 tolerance class ensures consistent performance for precision applications.

3213 A-2RS1 Bearing operates smoothly in temperatures from -30° to 110°C, adapting to various environments.
The pre-lubricated design reduces maintenance needs, making it a practical choice for long-term use.

Application

Industrial Uses of 3213 A-2RS1 Bearing
3213 A-2RS1 Bearing is commonly used in machine tools, where its double-row design handles combined radial and axial loads efficiently. The sealed construction helps keep contaminants out, extending service life in dusty workshop environments.

What Makes 3213 A-2RS1 Bearing a Preferred Choice?
In automotive applications like wheel hubs, 3213 A-2RS1 Bearing offers stable performance thanks to its chrome steel construction. The P6 tolerance ensures precise fitment for smooth rotation at moderate speeds.

Perfect Fit for Automation: 3213 A-2RS1 Bearing
Robotic arms benefit from 3213 A-2RS1 Bearing’s angular contact design, which maintains accuracy during repetitive movements. Its lubricated seals reduce maintenance needs in continuous operation scenarios.

Medical vs Industrial: Where 3213 A-2RS1 Bearing Excels
While suitable for industrial gearboxes, 3213 A-2RS1 Bearing also meets medical imaging equipment requirements with its consistent torque characteristics. The stainless steel cage prevents corrosion in sterilised environments.

Essential Roles of 3213 A-2RS1 Bearing
In conveyor systems, 3213 A-2RS1 Bearing withstands heavy loads while maintaining alignment. The 38.1mm width provides stability for prolonged operation between service intervals.
