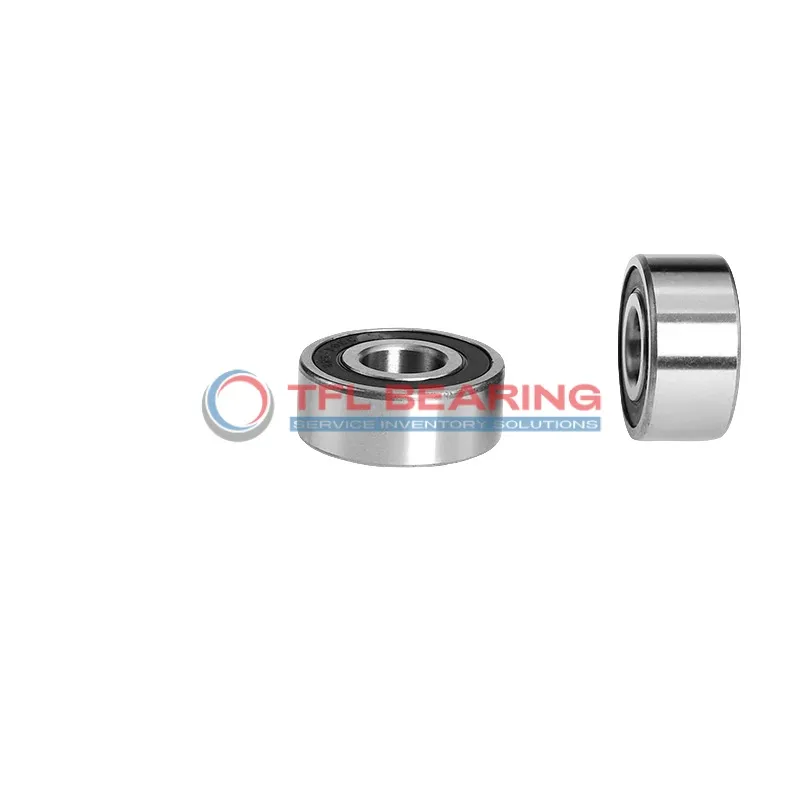

Double Row Angular Contact Ball Bearings (General) 3206 A-2RS1

Brand: TFL Bearing Interchangeable: SKF 3206 A-2RS1 30 mm × 62 mm × 23.8 mm Metric Sealed
Part number: 3206 A-2RS1
Double Row Angular Contact Ball Bearings (General) 3206 A-2RS1
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia30 mm
Bore Dia Tolerance-0.008mm to 0
Outer Dia62 mm
Outer Dia Tolerance-0.011mm to 0
Width23.8 mm
Width Tolerance-0.05mm to 0
Chamfer Dimension1 mm
Performance
Dynamic Radial Load6,862 lbf
Static Radial Load4,950 lbf
Max Speed7,500 rpm
Temperature Range-30° to 110 °C
Characteristics
System of MeasurementMetric
Bearing TypeBall
For Load DirectionAngular Contact
ConstructionDouble Row
Seal TypeSealed
Distance Pressure Point (a)36 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight0.29 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialStainless Steel
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 3206 A-2RS1 is a double-row angular contact ball bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 6862 lbf and operates smoothly at speeds up to 7500 RPM.

Its sealed design keeps lubrication in and contaminants out, while the stainless steel cage adds durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like pumps or gearboxes where angular contact and radial loads are present.

Weighing 0.29kg, it’s a compact yet robust choice. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

Performance Features of 3206 A-2RS1 Bearing

3206 A-2RS1 Bearing is built with double-row angular contact design, offering enhanced load capacity and stability.
Its chrome steel rings and balls ensure durability, while the stainless steel cage maintains precise alignment.

The sealed design of 3206 A-2RS1 Bearing protects against contaminants, extending its service life.
It handles dynamic radial loads up to 6862 lbf, making it suitable for demanding applications.

With a maximum speed of 7,500 rpm, 3206 A-2RS1 Bearing delivers reliable performance.
Its P6 tolerance class ensures consistent precision in operation.

3206 A-2RS1 Bearing operates smoothly in temperatures from -30° to 110°C.
The lubricated design reduces maintenance needs, saving time and effort.

Application

Industrial Uses of 3206 A-2RS1 Bearing
3206 A-2RS1 Bearing is commonly used in machine tools, where its double-row design handles combined radial and axial loads efficiently. The sealed construction helps keep contaminants out, extending service life in dusty workshops.

Where Is 3206 A-2RS1 Bearing Used?
You’ll often find 3206 A-2RS1 Bearing in conveyor systems, supporting smooth material handling in factories. Its chrome steel rings and stainless steel cage provide reliable performance even with continuous operation.

Built for Heavy-Duty Use: 3206 A-2RS1 Bearing
3206 A-2RS1 Bearing works well in gearboxes, managing high-speed rotations without compromising stability. The P6 tolerance class ensures precise alignment for demanding industrial applications.

Automotive vs Aerospace: Applications of 3206 A-2RS1 Bearing
In cars, 3206 A-2RS1 Bearing supports wheel hubs, while in aircraft, it assists in auxiliary systems. The lubricated design maintains performance across different temperature ranges.

Perfect Fit for Automation: 3206 A-2RS1 Bearing
3206 A-2RS1 Bearing is ideal for robotic arms, offering smooth angular movement. Its 23.8mm width fits compact spaces without sacrificing load capacity.
