Constant Section (CS) Bearings SB090XP0

Constant Section (CS) Bearings SB090XP0

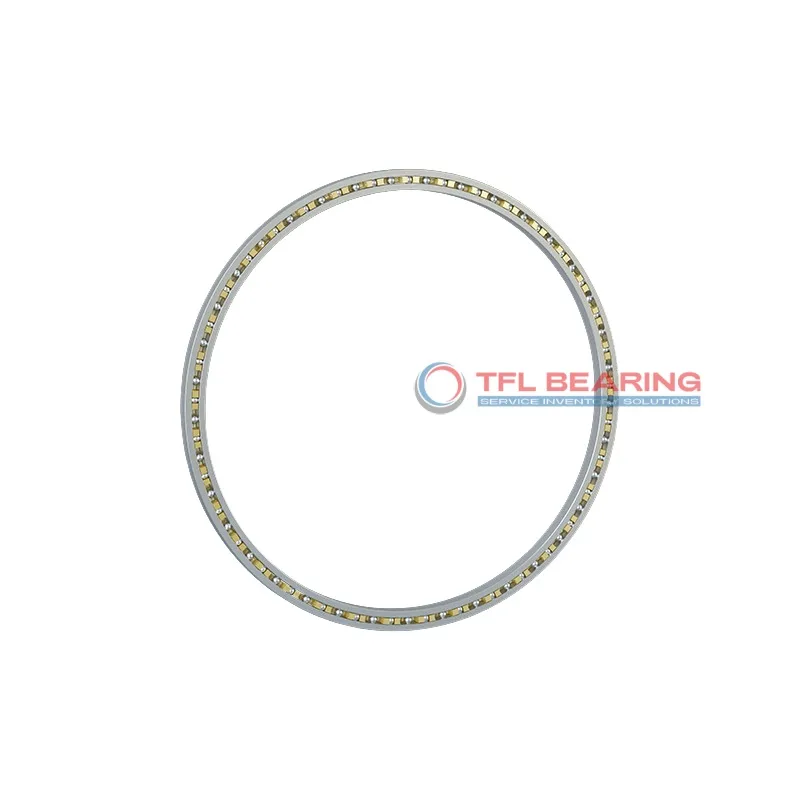

The SB090XP0 is a slim stainless steel bearing with a 9-inch bore and 9.625-inch outer diameter, designed for four-point contact. Its thin 0.3125-inch width makes it ideal for compact spaces, while the brass cage ensures smooth operation.

This bearing handles radial loads up to 1732 lbf and thrust loads up to 2880 lbf, with a temperature range of -30°C to 110°C. It’s pre-lubricated for easy use and meets RoHS standards.

The open design allows for simple maintenance, and its ABEC-1 tolerance ensures reliable performance. Suitable for applications like robotics or precision machinery where space is limited.

Weighing just 0.66 lbs, it’s lightweight yet durable. Interchangeable with KAYDON bearings, offering a practical replacement option.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SB090XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 9"
  • Bore Dia Tolerance -0.0012"- 0"
  • Outer Dia 9.625"
  • Outer Dia Tolerance -0.0012"- 0"
  • Width 0.3125"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Stainless Steel Bearings
  • Series SB 5/16" x 5/16"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 9.231"
  • Internal Diameter On Outer Ring (Small Side Face) 9.393"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Brass
  • Dynamic Radial Load 1732 lbf
  • Static Radial Load 3780 lbf
  • Static Thrust Load 9450 lbf
  • Static Moment 17600 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 6 lbf
  • Dynamic Thrust Load 2880 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.66 lbs
  • price（$） 403.7

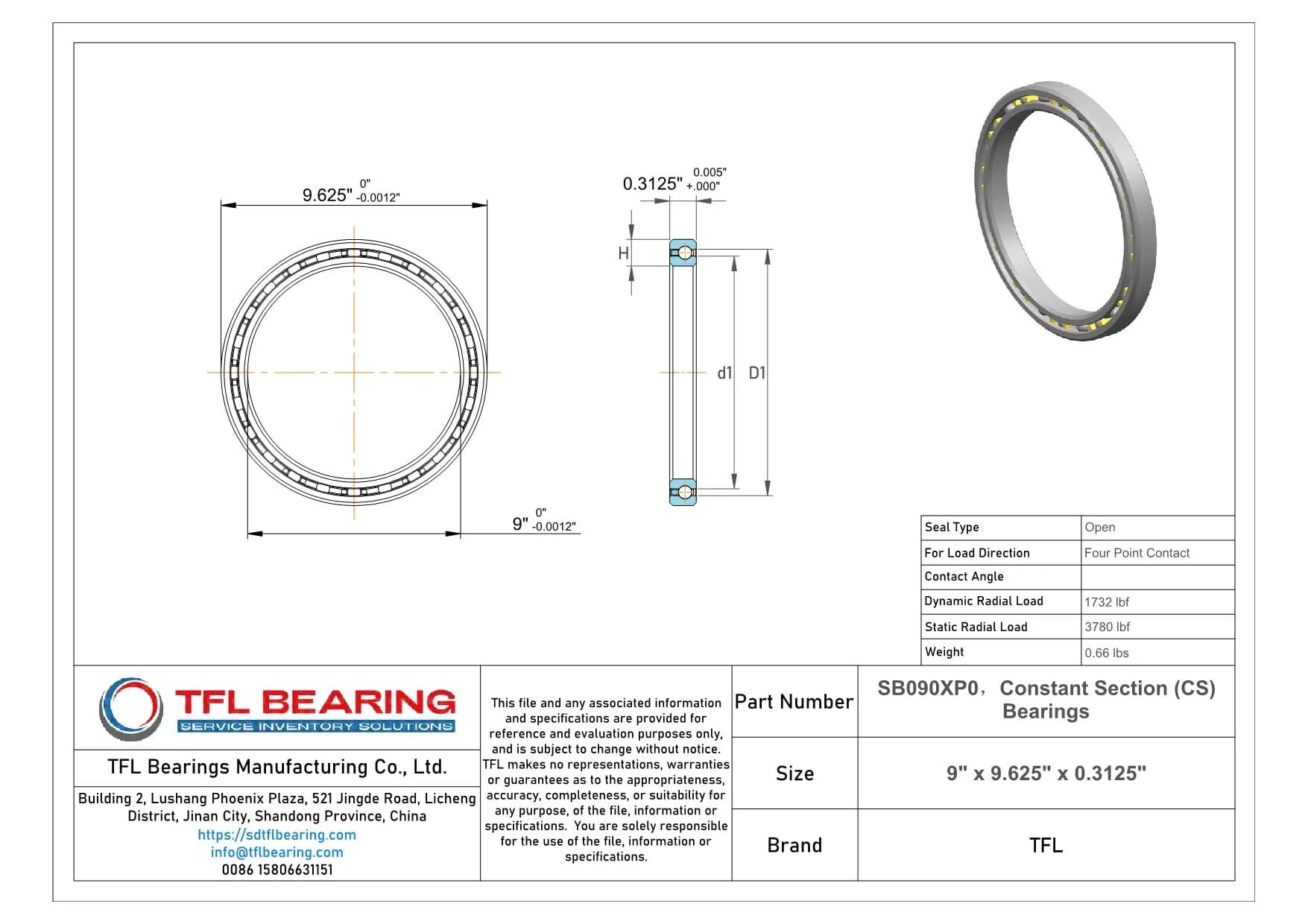

Constant Section (CS) Bearings SB090XP0 dimension drawing
Download DWG Download PDF
