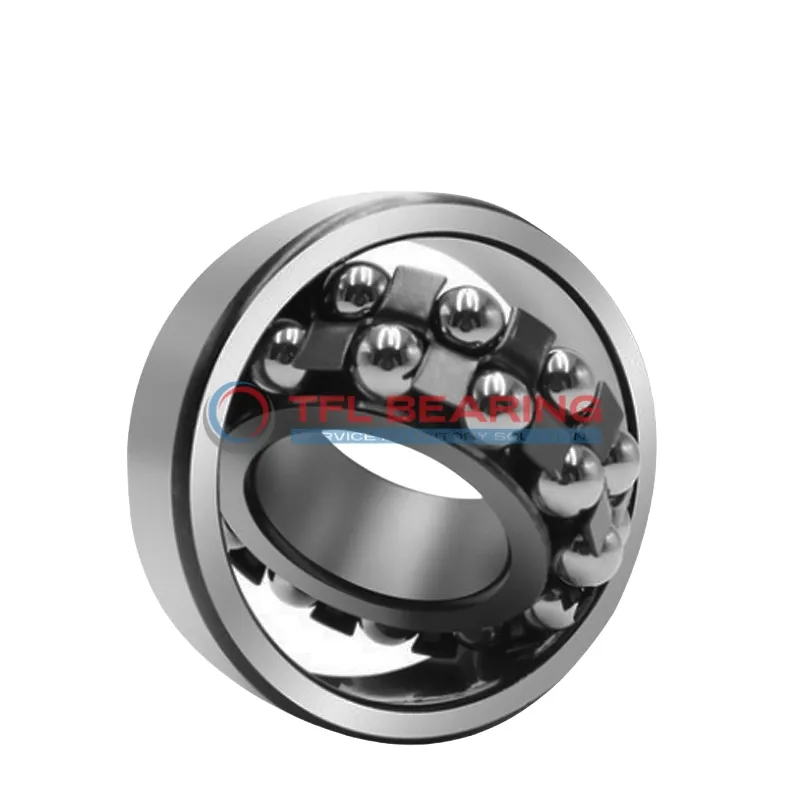

Self Aligning Ball Bearings 2315KJ

Self Aligning Ball Bearings 2315KJ

The 2315KJ is a self-aligning ball bearing with a 75mm tapered bore and 160mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 27900 lbf and operates smoothly at speeds up to 5600 RPM.

Its double-row design and open seal allow for easy lubrication and alignment adjustments, while the steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for machinery with misalignment issues, such as conveyor systems or agricultural equipment.

Weighing 4.7kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2315KJ
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 160 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 55 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 97.8 mm
  • Internal Diameter On Outer Ring 136.4 mm
  • Chamfer Dimension 2.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 27900 lbf
  • Static Radial Load 9675 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5600 rpm
  • Weight 4.7 kg
  • Price（$） 318.97
Self Aligning Ball Bearings 2315KJ dimension drawing
Download DWG Download PDF

Features

Performance Features of 2315KJ Bearing

2315KJ Bearing is built with double-row chrome steel balls, offering strong radial load capacity up to 27900 lbf.
Its tapered bore design ensures secure fitting, reducing slippage during operation.

The steel cage maintains ball alignment, enhancing durability and smooth performance.
With a maximum speed of 5,600 rpm, it suits various industrial applications.

2315KJ Bearing operates efficiently in temperatures from -30° to 110°C.
Its open design allows for easy lubrication, ensuring consistent performance over time.

Application

Industrial Uses of 2315KJ Bearing
2315KJ Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable radial load support in demanding environments.

In automotive applications, 2315KJ Bearing fits well in gearboxes and drivetrains, handling radial loads with ease. Its tapered bore provides a secure fit, reducing slippage during high-torque operations.

For automation equipment, 2315KJ Bearing’s open design allows efficient lubrication, extending service life in robotic arms and assembly lines. The chrome steel construction offers consistent performance under continuous use.

Medical imaging devices benefit from 2315KJ Bearing’s precision and low maintenance needs. Its steel cage enhances durability, making it suitable for high-rotation equipment like CT scanners.
