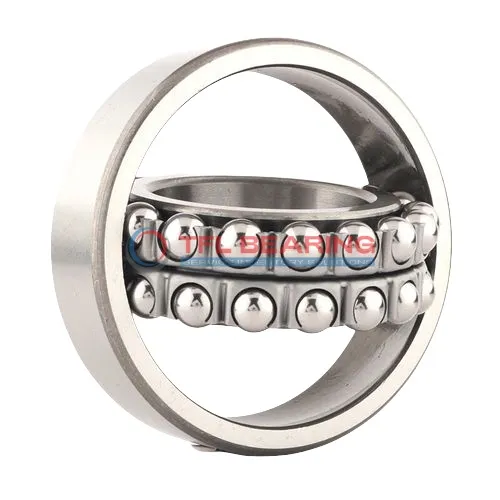

Self Aligning Ball Bearings 2312 C/3

Self Aligning Ball Bearings 2312 C/3

The 2312 C/3 is a self-aligning ball bearing with a 60mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 19598 lbf and operates smoothly at speeds reaching 7000 RPM.

Its double-row design allows for slight misalignment, reducing stress on the bearing. The open seal type makes lubrication straightforward, while the stainless steel cage enhances durability.

This bearing works well in temperatures from -30°C to 110°C, making it versatile for various environments. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing 2.6kg, it’s robust yet manageable for industrial use. Ideal for applications like conveyor systems or electric motors where alignment flexibility is needed. Compliant with RoHS and REACH standards for safe operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2312 C/3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 46 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 77.1 mm
  • Internal Diameter On Outer Ring 109.2 mm
  • Chamfer Dimension 2.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 19598 lbf
  • Static Radial Load 6412 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 7000 rpm
  • Weight 2.6 kg
  • Price（$） 164.33
Self Aligning Ball Bearings 2312 C/3 dimension drawing
Download DWG Download PDF

Features

How Is 2312 C/3 Bearing Engineered for Reliability?

2312 C/3 Bearing features a double-row design with chrome steel rings and balls, offering strong radial load support.
Its dynamic radial load capacity reaches 19598 lbf, ensuring stable performance in various applications.

The stainless steel cage maintains proper ball alignment, reducing friction and extending operational life.
With a maximum speed of 7,000 rpm, it delivers consistent efficiency under demanding conditions.

2312 C/3 Bearing operates smoothly within a temperature range of -30° to 110 °C, adapting to diverse environments.
Its open seal design allows for easy lubrication, enhancing long-term reliability.

Application

Industrial Uses of 2312 C/3 Bearing
2312 C/3 Bearing is commonly used in heavy machinery like conveyor systems and industrial mixers, where its self-aligning feature compensates for minor misalignments. The double-row design ensures stable performance under radial loads, making it suitable for continuous operation.

In automotive applications, 2312 C/3 Bearing fits well in transmission systems and wheel hubs, providing reliable support under varying loads. Its chrome steel construction offers durability, even in high-temperature environments.

For automation equipment, 2312 C/3 Bearing is a solid choice for robotic arms and assembly lines, where precision and smooth movement are key. The open seal design allows for easy lubrication, extending its service life.

In household appliances like washing machines, 2312 C/3 Bearing handles the constant motion and vibrations with ease. The stainless steel cage adds resistance to wear, ensuring long-term reliability.
