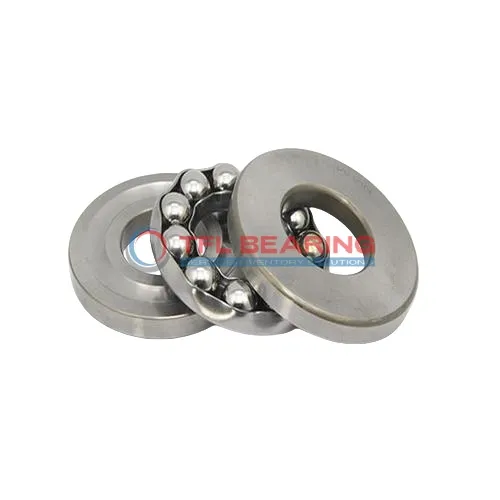

Metric Single Direction Thrust Ball Bearing 53215

Metric Single Direction Thrust Ball Bearing 53215

The 53215 is a single-direction thrust ball bearing with a 75mm bore and 110mm outer diameter, crafted from sturdy 52100 chrome steel. It manages thrust loads up to 14332 lbf and operates smoothly at speeds up to 3400 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial presses or lifting equipment where high thrust loads are expected.

Weighing 1kg, it balances strength and practicality. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 53215
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Thrust
  • Seal Type Open
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.02mm to 0
  • Outer Dia Shaft Washer 110 mm
  • Width 28.3 mm
  • Width Tolerance +0.02mm to -0.3mm
  • Inner Dia Housing Washer 77 mm
  • Chamfer Dimension 1 mm
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Thrust Load 14332 lbf
  • Static Thrust Load 38250 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3400 rpm
  • Weight 1 kg
Metric Single Direction Thrust Ball Bearing 53215 dimension drawing
Download DWG Download PDF

Features

How Does 53215 Bearing Handle Heavy Loads?

53215 Bearing is built with 52100 chrome steel rings and balls, offering robust resistance to high thrust loads.
Its dynamic thrust load capacity reaches 14332 lbf, making it suitable for demanding industrial applications.

The stainless steel cage ensures proper ball alignment, reducing friction and enhancing durability.
With a maximum speed of 3,400 rpm, it delivers reliable performance under heavy-duty conditions.

53215 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open design simplifies maintenance while maintaining consistent performance.

Application

Industrial Uses of 53215 Bearing
53215 Bearing is commonly used in heavy machinery like hydraulic presses and industrial gearboxes, where its high thrust load capacity handles axial forces effectively. The open design simplifies lubrication, extending service life in demanding conditions.

What Makes 53215 Bearing a Preferred Choice?
With its chrome steel construction, 53215 Bearing offers reliable performance in automotive applications such as clutch release mechanisms. The metric sizing ensures easy integration with European and Asian vehicle designs.

Built for Heavy-Duty Use: 53215 Bearing
In automation systems, 53215 Bearing supports robotic arms and conveyor belts, providing stability under continuous operation. Its stainless steel cage resists wear, making it suitable for high-cycle environments.

Medical vs Industrial: Where 53215 Bearing Excels
While 53215 Bearing isn’t typically used in medical devices, it shines in industrial settings like crane hooks and lifting equipment. The robust design handles static loads up to 38,250 lbf without compromising performance.

Perfect Fit for Automation: 53215 Bearing
53215 Bearing works well in 3D printers and assembly line robots, where precision and durability are key. The temperature range of -30° to 110°C ensures reliability in varied operating conditions.
