Metric Single Direction Thrust Ball Bearing 1015

Brand: TFL Bearing Interchangeable: SKF 1015 75 mm × 100 mm × 20 mm Metric Open
Part number: 1015
Metric Single Direction Thrust Ball Bearing 1015
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia75 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia100 mm
Outer Dia Tolerance-0.02mm to 0
Width20 mm
Width Tolerance+0.02mm to -0.3mm
Inner Dia Housing Washer75.2 mm
Chamfer Dimension0.5 mm
Performance
Dynamic Thrust Load2,545 lbf
Static Thrust Load23,460 lbf
Temperature Range-30° to 110 °C
Max Speed3,350 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
For Load DirectionThrust
Seal TypeOpen
LubricationRequired
Weight0.45 kg
Material
Ring Material52100 Chrome Steel
Ball Material52100 Chrome Steel
Cage MaterialChrome Steel
Compliance
RoHSCompliant
REACHCompliant

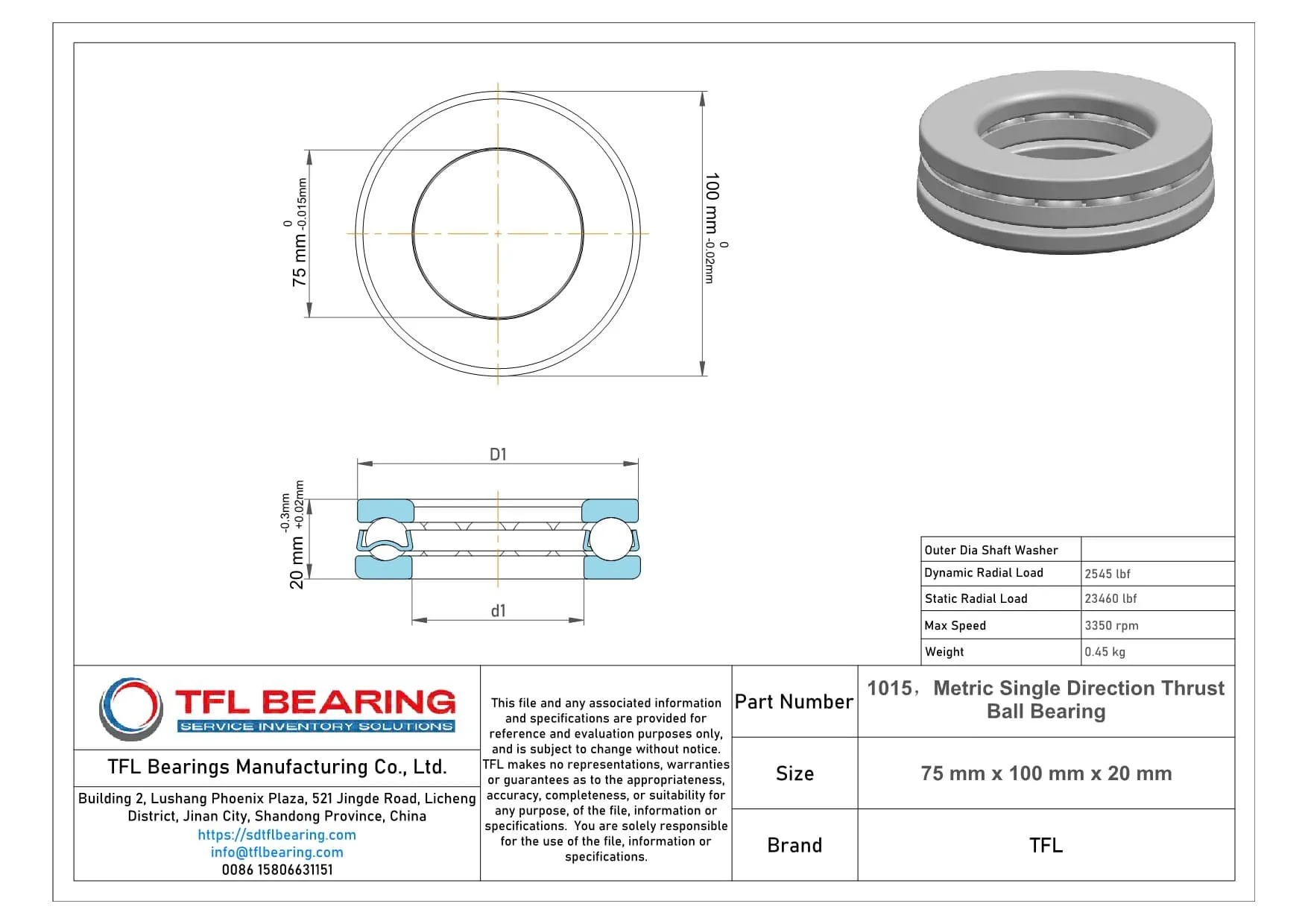

Dimension drawing · click to enlarge

Description

The 1015 is a single-direction thrust ball bearing with a 75mm bore and 100mm outer diameter, crafted from sturdy 52100 chrome steel. It manages thrust loads up to 2545 lbf and operates smoothly at speeds up to 3350 RPM.

Its open design simplifies lubrication, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like pumps or machinery where single-direction thrust loads are present.

Weighing 0.45kg, it balances strength and portability. Compliant with RoHS and REACH standards for safe usage.

Features

How Does 1015 Bearing Reduce Friction?

1015 Bearing features chrome steel rings and balls, which help minimise friction during operation.
The precision-engineered design ensures smooth movement, even under significant thrust loads.

With a dynamic thrust load capacity of 2545 lbf, it performs reliably in various applications.
The open seal type allows for easy lubrication, maintaining optimal performance over time.

1015 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its durable construction makes it suitable for both industrial and mechanical uses.

Application

Industrial Uses of 1015 Bearing
1015 Bearing is commonly used in heavy machinery, such as hydraulic presses and gearboxes, where its robust design handles axial loads efficiently. The open seal type simplifies lubrication, ensuring long service life in demanding conditions.

What Makes 1015 Bearing a Preferred Choice?
In automotive applications, 1015 Bearing fits well in clutch mechanisms and steering systems, offering reliable performance under thrust forces. Its metric dimensions make it a versatile option for various vehicle designs.

Built for Heavy-Duty Use: 1015 Bearing
For industrial fans and pumps, 1015 Bearing’s chrome steel construction provides durability and resistance to wear. The wide temperature range allows it to perform consistently in both hot and cold environments.

Automotive vs Aerospace: Applications of 1015 Bearing
While 1015 Bearing excels in car transmissions, its precision also suits aerospace components like actuator systems. The high static load capacity ensures stability in critical operations.

Perfect Fit for Automation: 1015 Bearing
In robotic arms and conveyor systems, 1015 Bearing delivers smooth movement with minimal maintenance. Its compatibility with standard lubricants makes it a practical choice for automated setups.
