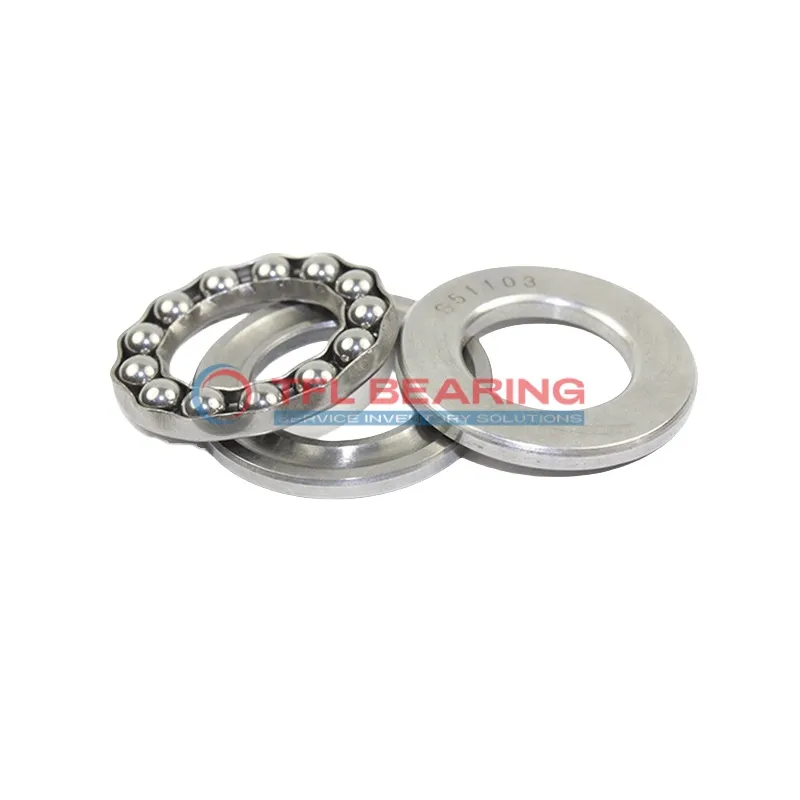

Metric Single Direction Thrust Ball Bearing 1001

Metric Single Direction Thrust Ball Bearing 1001

The 1001 is a compact single-direction thrust ball bearing with a 12mm bore and 28mm outer diameter, crafted from sturdy 52100 chrome steel. It manages thrust loads up to 435 lbf and spins efficiently at speeds reaching 11,740 RPM.

Its open design simplifies lubrication, while the chrome steel cage enhances durability. The bearing operates reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for light-duty applications like small motors or precision instruments where space is limited.

Weighing only 0.04kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it ensures safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1001
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Thrust
  • Seal Type Open
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 28 mm
  • Outer Dia Tolerance -0.01mm to 0
  • Width 12 mm
  • Width Tolerance +0.02mm to -0.25mm
  • Inner Dia Housing Washer 12.2 mm
  • Chamfer Dimension 0.5 mm
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Thrust Load 435 lbf
  • Static Thrust Load 2080 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 11740 rpm
  • Weight 0.04 kg

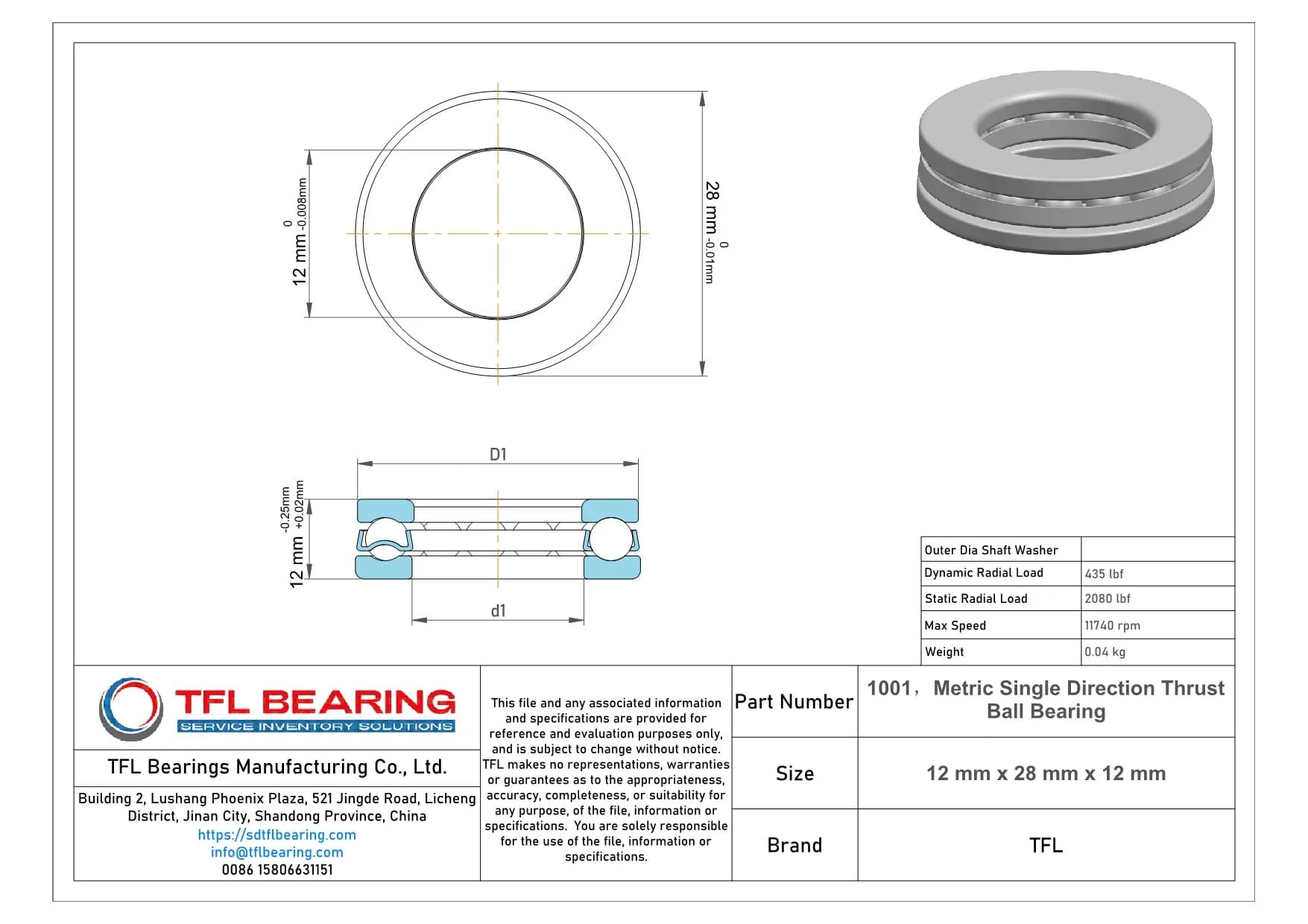

Metric Single Direction Thrust Ball Bearing 1001 dimension drawing
Download DWG Download PDF

Features

Why Choose 1001 Bearing for Precision Tasks?

1001 Bearing is crafted from 52100 chrome steel, offering a balance of strength and precision for thrust applications.
Its dynamic thrust load capacity of 435 lbf ensures reliable performance in precise mechanical systems.

The open seal design allows for easy lubrication, maintaining smooth operation over time.
With a maximum speed of 11,740 rpm, it suits high-speed applications without compromising durability.

1001 Bearing’s compact size (12 mm×28 mm×12 mm) makes it ideal for space-constrained installations.
The chrome steel cage enhances alignment and reduces wear, extending the bearing’s service life.

Application

Industrial Uses of 1001 Bearing
1001 Bearing is commonly used in machine tools, where its single-direction thrust capability handles axial loads efficiently. The open design simplifies lubrication, ensuring smooth operation in industrial settings.

In automotive applications, 1001 Bearing fits well in gear mechanisms and clutch systems, providing reliable performance under thrust forces. Its metric dimensions make it a versatile choice for various vehicle models.

For medical devices like lab equipment, 1001 Bearing’s chrome steel construction offers durability and precision. The material choice ensures consistent performance in critical medical environments.

Automation systems benefit from 1001 Bearing in components like robotic arms, where its compact size and load capacity are advantageous. The bearing’s design supports high-speed operations without compromising stability.

In household appliances such as electric fans, 1001 Bearing ensures quiet and efficient operation. Its lightweight design and reliability make it suitable for everyday use.
