Metric Single Direction Thrust Ball Bearing 1100

Metric Single Direction Thrust Ball Bearing 1100

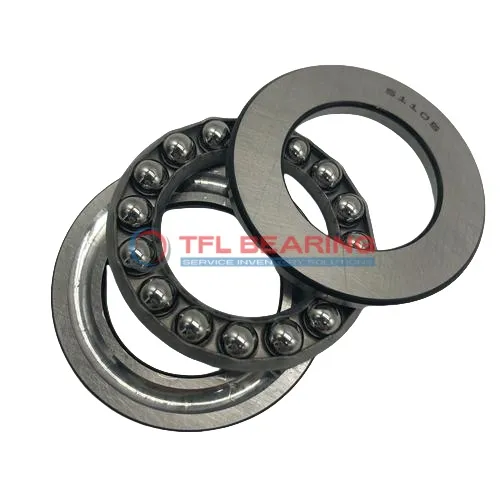

The 1100 is a compact single-direction thrust ball bearing, measuring 10mm in bore and 30mm in outer diameter, crafted from durable 52100 chrome steel. It manages thrust loads up to 700 lbf and reaches speeds of nearly 12,000 RPM.

Its open design simplifies lubrication, while the chrome steel cage enhances durability. The bearing operates reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for light machinery or tools where space is limited but performance is key.

Weighing just 0.05kg, it’s a lightweight yet sturdy choice. Compliant with RoHS and REACH standards, it’s safe for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1100
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Thrust
  • Seal Type Open
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 30 mm
  • Outer Dia Tolerance -0.01mm to 0
  • Width 12.0 mm
  • Width Tolerance +0.02mm to -0.25mm
  • Inner Dia Housing Washer 10.2 mm
  • Chamfer Dimension 0.5 mm
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Thrust Load 700 lbf
  • Static Thrust Load 2718 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 11680 rpm
  • Weight 0.05 kg

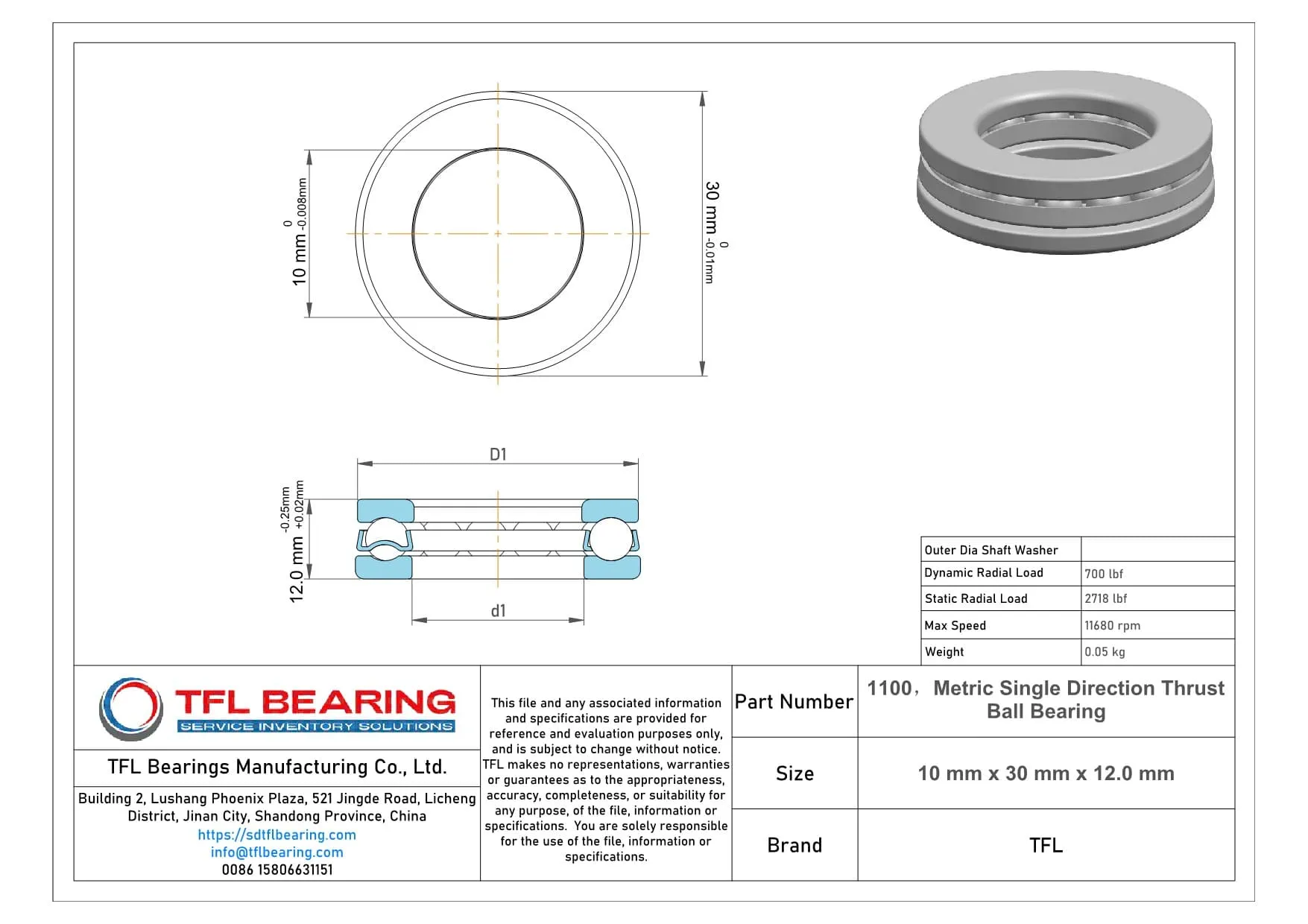

Metric Single Direction Thrust Ball Bearing 1100 dimension drawing
Download DWG Download PDF

Features

How Does 1100 Bearing Reduce Friction?

1100 Bearing is crafted from 52100 chrome steel, ensuring smooth operation with minimal friction.
Its precision design allows for efficient load distribution, enhancing performance in thrust applications.

The open seal type simplifies lubrication, maintaining optimal functionality over time.
With a maximum speed of 11,680 rpm, it delivers reliable performance in various conditions.

1100 Bearing’s durable construction resists wear, extending its service life.
Its static thrust load capacity of 2718 lbf makes it suitable for demanding tasks.

Application

Industrial Uses of 1100 Bearing
1100 Bearing is commonly used in machine tools where its single-direction thrust capacity handles axial loads efficiently. The chrome steel construction ensures durability in demanding industrial environments.

In automotive applications, 1100 Bearing fits well in gear mechanisms and clutch systems, providing reliable performance under thrust forces. Its compact size makes it suitable for tight spaces in vehicle assemblies.

For automation equipment, 1100 Bearing supports smooth operation in robotic arms and conveyor systems. The open design allows for easy lubrication, extending its service life in high-speed scenarios.

Where Is 1100 Bearing Used?
You’ll find 1100 Bearing in small electric motors, where its metric sizing and thrust load capacity are ideal. The chrome steel balls and cage offer consistent performance over time.

In household appliances like washing machines, 1100 Bearing ensures quiet and efficient operation. Its temperature range suits both indoor and outdoor applications.

Built for Heavy-Duty Use: 1100 Bearing
1100 Bearing handles axial loads in industrial pumps and compressors with ease. The 52100 chrome steel material provides excellent wear resistance.

Its max speed rating makes 1100 Bearing a good fit for high-RPM applications. The simple open design allows for straightforward maintenance and lubrication.

Automotive vs Industrial: Applications of 1100 Bearing
In cars, 1100 Bearing works well in transmission systems, offering reliable thrust support. The metric dimensions ensure compatibility with various vehicle models.

For factory equipment, 1100 Bearing excels in conveyor rollers and assembly lines. Its static thrust load capacity ensures stability under heavy loads.
