Self Aligning Ball Bearings 2309TV

Self Aligning Ball Bearings 2309TV

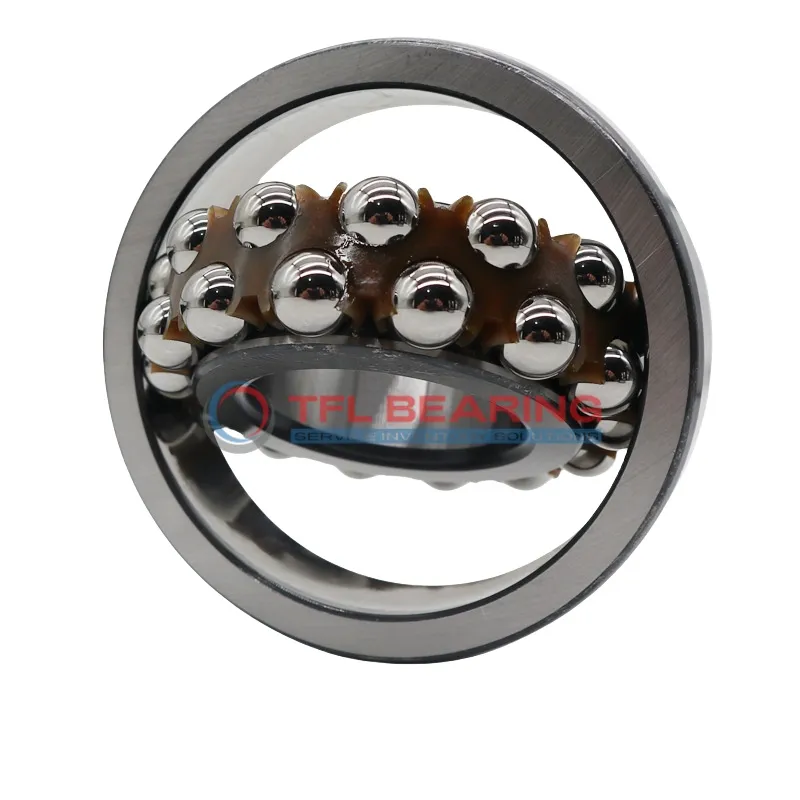

The 2309TV is a self-aligning ball bearing with a 45mm bore and 100mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 8775 lbf and operates smoothly at speeds up to 4300 RPM.

Its double-row design and sealed construction help it stay aligned and protected from dust, while the nylon cage reduces friction. The bearing works in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. It’s well-suited for machinery with misalignment issues, like conveyor systems or agricultural equipment.

Weighing 1.3kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2309TV
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 36 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 60.9 mm
  • Internal Diameter On Outer Ring 90 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 8775 lbf
  • Static Radial Load 3015 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4300 rpm
  • Weight 1.3 kg
Self Aligning Ball Bearings 2309TV dimension drawing
Download DWG Download PDF

Features

Why Choose 2309TV Bearing for Precision Tasks?

2309TV Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load reaches 8775 lbf, making it suitable for demanding industrial applications.

The nylon cage in 2309TV Bearing reduces friction and noise, enhancing operational smoothness.
With a maximum speed of 4,300 rpm, it balances performance and durability.

2309TV Bearing is sealed and pre-lubricated, requiring minimal maintenance over its service life.
It operates efficiently in temperatures ranging from -30° to 110°C, adapting to various environments.

Application

Industrial Uses of 2309TV Bearing
2309TV Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its self-aligning feature helps compensate for shaft misalignment. The sealed design keeps contaminants out, ensuring longer service life in dusty environments.

Where Is 2309TV Bearing Used?
You’ll often find 2309TV Bearing in automotive applications such as gearboxes and wheel hubs, where its radial load capacity handles constant stress. The nylon cage reduces friction, making it a quiet option for vehicle components.

Built for Heavy-Duty Use: 2309TV Bearing
2309TV Bearing excels in construction equipment like cranes and excavators, thanks to its double-row design for added stability. The chrome steel construction ensures it can withstand harsh outdoor conditions without compromising performance.

Automotive vs Industrial: Applications of 2309TV Bearing
In automotive settings, 2309TV Bearing supports smooth rotation in drivetrains, while in industrial settings, it’s ideal for pumps and compressors. Its metric sizing makes it versatile for various machinery across different sectors.

Perfect Fit for Automation: 2309TV Bearing
2309TV Bearing works well in robotic arms and automated assembly lines, where precision and reliability are key. The lubricated design ensures consistent performance even during prolonged operation.
