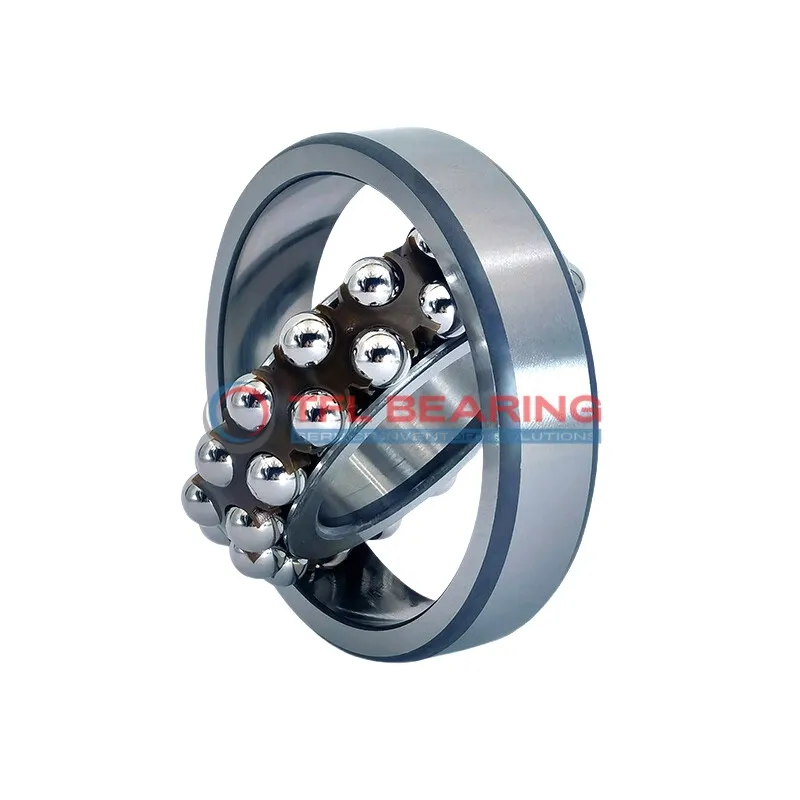

Self Aligning Ball Bearings 2315 KC3

Brand: TFL Bearing Interchangeable: SKF 2315 KC3 75 mm × 160 mm × 55 mm Metric Open
Part number: 2315 KC3
Self Aligning Ball Bearings 2315 KC3
In Stock
US$354.47 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia75 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia160 mm
Outer Dia Tolerance-0.025mm to 0
Width55 mm
Width Tolerance-0.15mm to 0
External Diameter On Inner Ring97.8 mm
Internal Diameter On Outer Ring136.4 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load27,900 lbf
Static Radial Load9,675 lbf
Temperature Range-30° to 110 °C
Max Speed5,600 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceC3
Weight4.45 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2315 KC3 is a self-aligning ball bearing with a 75mm tapered bore and 160mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 27900 lbf and operates smoothly at speeds up to 5600 RPM.

Its double-row design and open seal allow for easy lubrication, while the nylon cage reduces friction for quieter performance. The bearing works reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for machinery with misalignment issues, such as conveyor systems or agricultural equipment.

Weighing 4.45kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

How Does 2315 KC3 Bearing Reduce Friction?

2315 KC3 Bearing features a double-row ball design with chrome steel rings and balls, ensuring smooth radial load distribution.
The nylon cage minimises friction and wear, contributing to quieter operation and longer service life.
With a dynamic radial load capacity of 27900 lbf, it handles heavy loads efficiently.
Its C3 radial clearance allows for better thermal expansion handling in various operating conditions.

Application

Industrial Uses of 2315 KC3 Bearing
2315 KC3 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable performance under radial loads, making it suitable for demanding environments.

Where Is 2315 KC3 Bearing Used?
In automotive applications, 2315 KC3 Bearing supports components like drive shafts and wheel hubs, thanks to its tapered bore for secure fitting. The chrome steel construction provides durability, even under continuous use.

Built for Heavy-Duty Use: 2315 KC3 Bearing
For automation equipment, 2315 KC3 Bearing offers smooth operation in robotic arms and assembly lines. Its nylon cage reduces friction, enhancing efficiency in high-speed scenarios.

Light-Duty vs Heavy-Duty: Best Uses for 2315 KC3 Bearing
In consumer appliances like washing machines, 2315 KC3 Bearing handles moderate loads with ease. For industrial pumps, its C3 clearance ensures optimal performance under varying temperatures.
