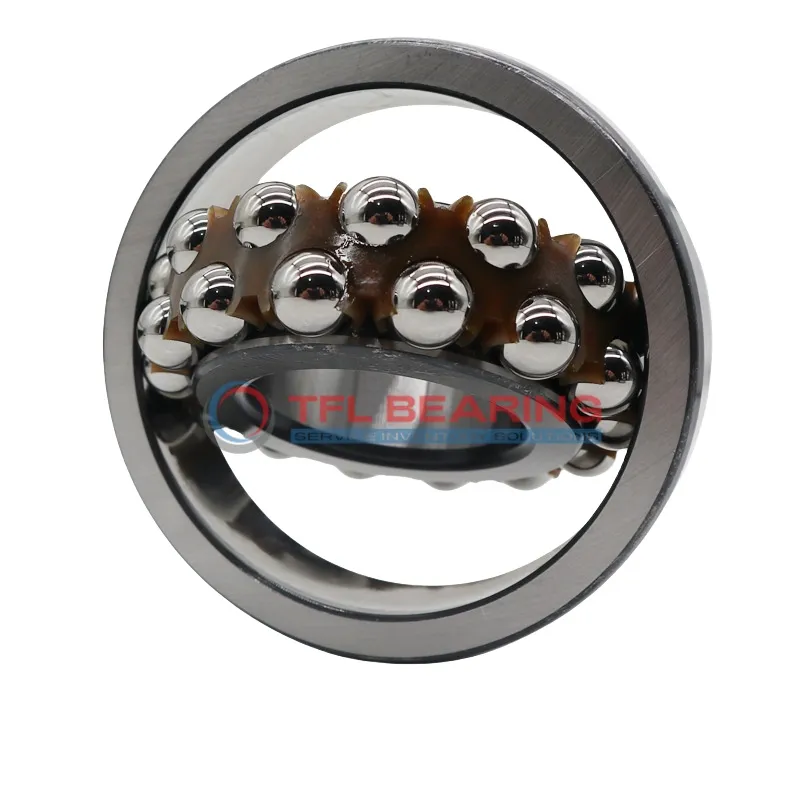

Self Aligning Ball Bearings 2309-TVH-C3

Self Aligning Ball Bearings 2309-TVH-C3

The 2309-TVH-C3 is a self-aligning ball bearing with a 45mm bore and 100mm outer diameter, designed for radial loads. Its double-row construction and sealed design offer reliable performance in various conditions.

Made from chrome steel with a nylon cage, it handles dynamic radial loads up to 8775 lbf and spins smoothly at 4300 RPM. The C3 radial clearance allows for slight misalignment, reducing wear.

Pre-lubricated and sealed, this bearing requires minimal maintenance. It operates well in temperatures from -30°C to 110°C, making it suitable for industrial machinery or conveyors.

Weighing 1.3kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it’s a dependable choice for replacements, interchangeable with SKF models.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2309-TVH-C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 36 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 60.9 mm
  • Internal Diameter On Outer Ring 90 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 8775 lbf
  • Static Radial Load 3015 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4300 rpm
  • Weight 1.3 kg
  • Price（$） 78.17

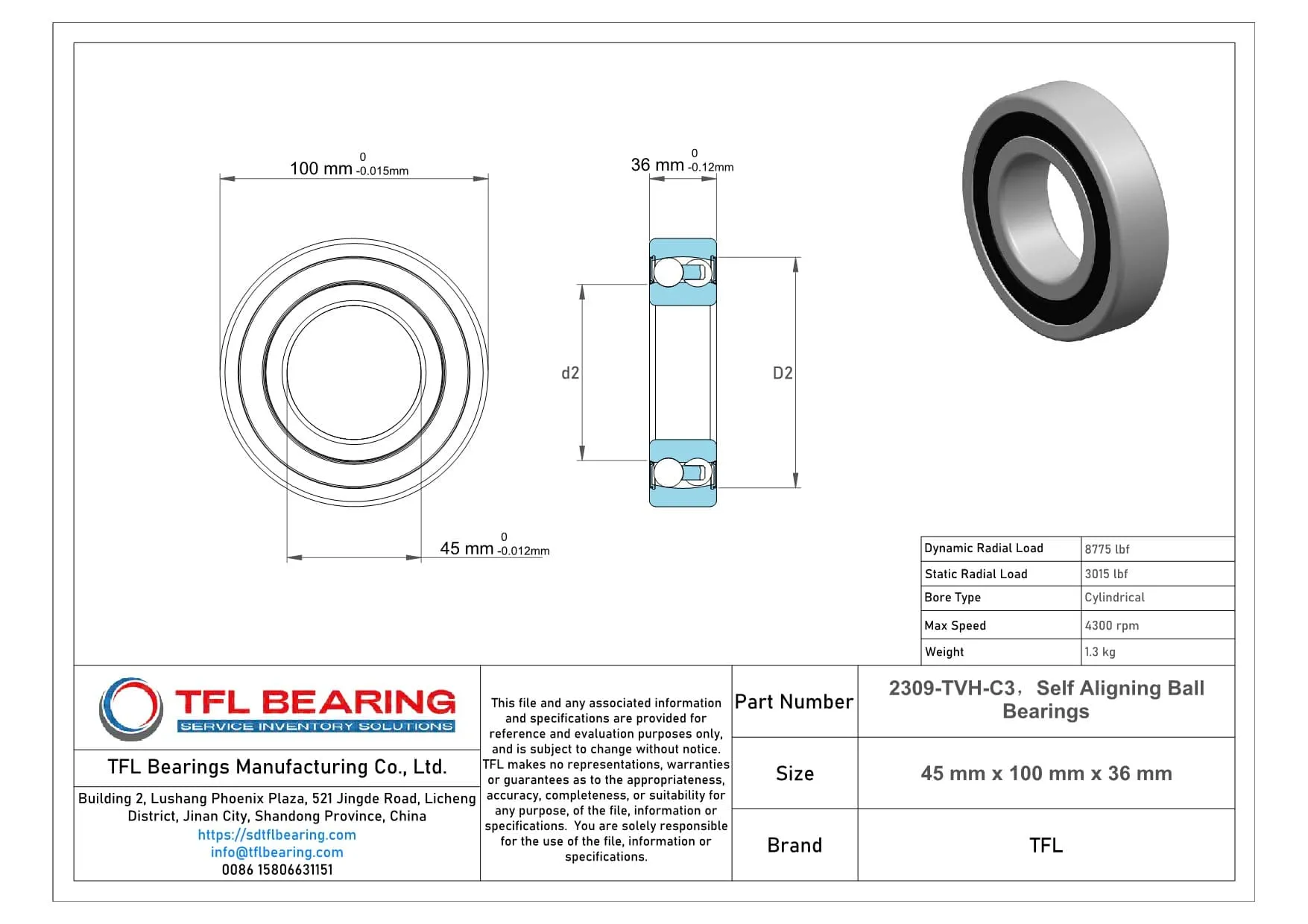

Self Aligning Ball Bearings 2309-TVH-C3 dimension drawing
Download DWG Download PDF

Features

How Is 2309-TVH-C3 Bearing Engineered for Reliability?

2309-TVH-C3 Bearing features a double-row design with chrome steel rings and balls, ensuring strong radial load capacity.
Its dynamic radial load reaches 8775 lbf, making it suitable for demanding applications.
The sealed construction and nylon cage enhance durability while keeping contaminants out.
With a maximum speed of 4,300 rpm, it offers reliable performance in various conditions.

Application

Industrial Uses of 2309-TVH-C3 Bearing
2309-TVH-C3 Bearing is commonly used in industrial machinery, especially in conveyor systems and fans, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring longer service life in dusty environments.

In automotive applications, 2309-TVH-C3 Bearing is ideal for gearboxes and transmissions, handling radial loads with ease. Its nylon cage reduces vibration and noise, making it suitable for smoother vehicle operation.

For automation equipment, 2309-TVH-C3 Bearing supports robotic arms and assembly lines, where precision and reliability are key. The C3 radial clearance allows for thermal expansion, maintaining performance under varying temperatures.

In household appliances like washing machines, 2309-TVH-C3 Bearing’s durability ensures quiet and efficient operation. The chrome steel construction provides excellent resistance to wear, even with frequent use.
