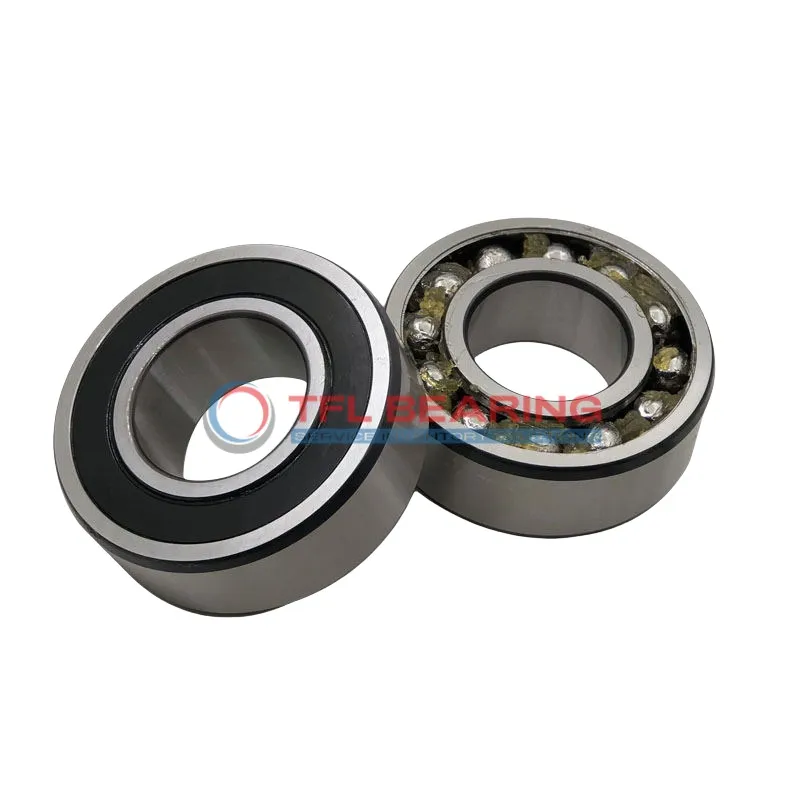

Self Aligning Ball Bearings 2309 E-2RS1TN9

Self Aligning Ball Bearings 2309 E-2RS1TN9

The 2309 E-2RS1TN9 is a self-aligning ball bearing with a 45mm bore and 100mm outer diameter, crafted from sturdy chrome steel. Its double-row design handles radial loads up to 8775 lbf and runs smoothly at speeds up to 4300 RPM.

Sealed on both sides, it keeps dirt out and lubrication in, making it low-maintenance. The nylon cage reduces friction and noise, ideal for quieter operations.

This bearing works well in temperatures from -30°C to 110°C, suitable for various industrial environments. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing 1.3kg, it’s robust yet manageable for its size. Perfect for applications like conveyor systems or agricultural machinery where misalignment might occur. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2309 E-2RS1TN9
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 36 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 60.9 mm
  • Internal Diameter On Outer Ring 90 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 8775 lbf
  • Static Radial Load 3015 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4300 rpm
  • Weight 1.3 kg
  • Price（$） 99.91
Self Aligning Ball Bearings 2309 E-2RS1TN9 dimension drawing
Download DWG Download PDF

Features

How Is 2309 E-2RS1TN9 Bearing Engineered for Reliability?

2309 E-2RS1TN9 Bearing features a double-row design with chrome steel rings and balls, ensuring strong radial load capacity.
Its dynamic radial load reaches 8775 lbf, making it suitable for heavy-duty applications.

The sealed construction and nylon cage help maintain smooth operation while reducing wear.
With a maximum speed of 4,300 rpm, it offers a balance of performance and durability.

2309 E-2RS1TN9 Bearing operates effectively in temperatures ranging from -30° to 110°C.
Its pre-lubricated design ensures minimal maintenance and reliable service over time.

Application

Industrial Uses of 2309 E-2RS1TN9 Bearing
2309 E-2RS1TN9 Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The sealed design helps keep contaminants out, extending the bearing’s lifespan in dusty environments.

In automotive applications, 2309 E-2RS1TN9 Bearing is found in wheel hubs and transmissions, providing reliable radial load support. Its nylon cage reduces noise, making it suitable for passenger vehicles.

For automation equipment, 2309 E-2RS1TN9 Bearing ensures smooth operation in robotic arms and assembly lines. The double-row construction offers added stability, which is essential for precision tasks.

In household appliances like washing machines, 2309 E-2RS1TN9 Bearing handles moderate loads while maintaining quiet performance. The lubricated design ensures low maintenance, ideal for long-term use.
