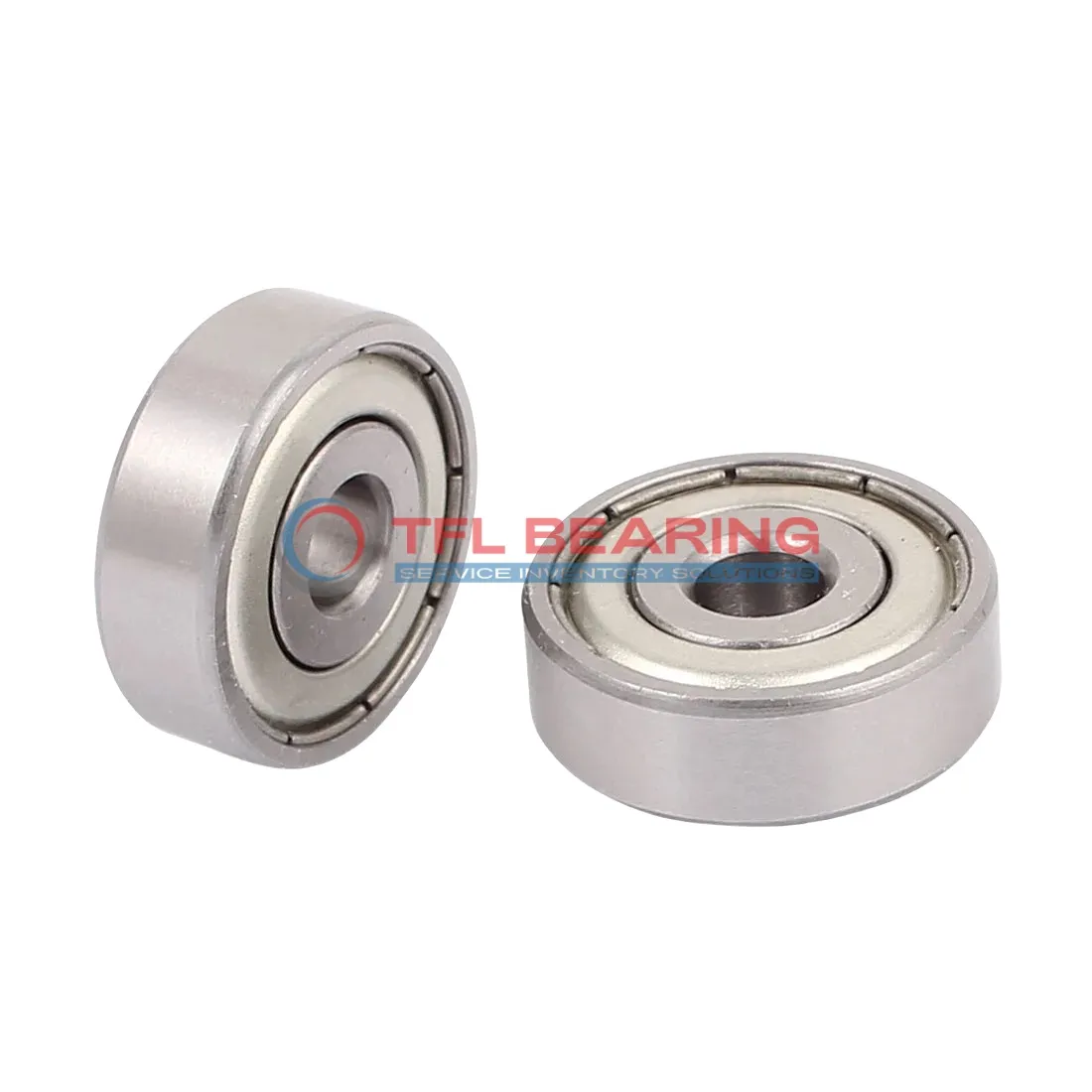

Single Row Deep Groove Ball Bearings 6021-2Z/C4VT127C

Single Row Deep Groove Ball Bearings 6021-2Z/C4VT127C

The 6021-2Z/C4VT127C is a single-row deep groove ball bearing with a 105mm bore and 160mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 16254 lbf and operates smoothly at speeds up to 4000 RPM.

Its shielded design keeps dirt out while maintaining smooth rotation, and the chrome steel cage adds durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 1560g, it’s a robust option for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6021-2Z/C4VT127C
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 105 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 160 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 26 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 16254 lbf
  • Static Radial Load 14792 lbf
  • Max Speed 4000 rpm
  • Weight 1560 g
Single Row Deep Groove Ball Bearings 6021-2Z/C4VT127C dimension drawing
Download DWG Download PDF

Features

How Does 6021-2Z/C4VT127C Bearing Reduce Friction?

6021-2Z/C4VT127C Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The shielded construction helps keep contaminants out while maintaining low friction during operation.

Constructed from chrome steel, 6021-2Z/C4VT127C Bearing offers reliable performance under dynamic loads up to 16,254 lbf.
Its C4 radial clearance ensures stable operation even at higher speeds, reaching up to 4,000 rpm.

6021-2Z/C4VT127C Bearing operates efficiently in temperatures ranging from -30°C to 120°C.
The chrome steel cage enhances durability, making it suitable for long-term use in various industrial applications.

With its balanced design, 6021-2Z/C4VT127C Bearing reduces maintenance needs while ensuring consistent performance.
The precise tolerances and shielded seals contribute to its smooth and quiet operation.

Application

Key Fields for 6021-2Z/C4VT127C Bearing
6021-2Z/C4VT127C Bearing is commonly used in industrial machinery, such as pumps and electric motors, where its shielded design helps keep contaminants out. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 6021-2Z/C4VT127C Bearing supports components like alternators and water pumps, providing reliable performance under radial loads. Its C4 radial clearance allows for slight thermal expansion, making it suitable for varying temperatures.

For automation systems, 6021-2Z/C4VT127C Bearing is a solid choice for robotic arms and conveyor belts, where smooth rotation is essential. The metric sizing ensures compatibility with a wide range of equipment.

In household appliances like washing machines, 6021-2Z/C4VT127C Bearing offers quiet and efficient operation. Its shielded design helps extend service life by reducing dust and debris ingress.
