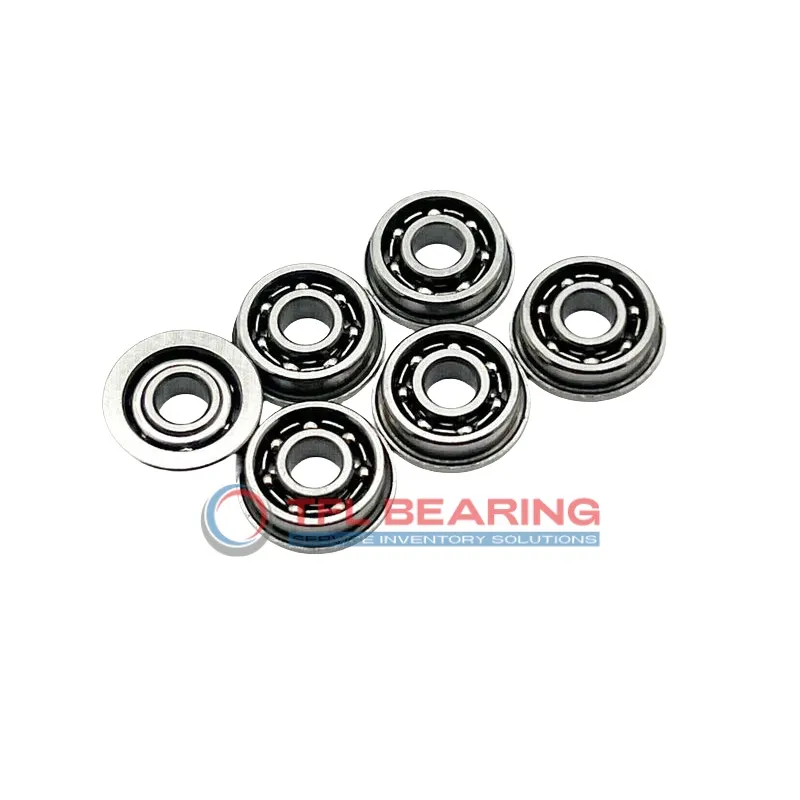

Standard Flanged Ball Bearings F63805

Standard Flanged Ball Bearings F63805

The F63805 is a compact flanged ball bearing measuring 25mm by 37mm, with a width of 10mm and a flange outer diameter of 40mm. Made from chrome steel, it’s built to handle radial loads up to 967 lbf.

Its open design allows for easy lubrication, while the stainless steel cage ensures durability. The bearing can reach speeds of up to 18,000 RPM, making it suitable for fast-moving applications.

The flange provides added stability, helping the bearing stay securely in place. It operates smoothly in temperatures ranging from -30°C to 110°C.

Ideal for use in small machinery or electric motors where space is limited. Compliant with RoHS and REACH standards, it’s a reliable choice for various industrial needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F63805
  • Brand TFL
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.010mm to 0
  • Outer Dia 37 mm
  • Outer Dia Tolerance -0.011 mm to 0
  • Width 10 mm
  • Width Tolerance -0.12 mm to 0
  • Flange Outer Dia 40 mm
  • Flange Thickness 2 mm
  • Ball Qty 15
  • Ball Dia 3.5 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 967 lbf
  • Static Radial Load 659 lbf
  • Lubrication Required
  • Temperature Range -30° to 110°C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 18000 rpm
  • Price（$） 4.2
Standard Flanged Ball Bearings F63805 dimension drawing
Download DWG Download PDF

Features

Performance Features of F63805 Bearing

F63805 Bearing is built with chrome steel rings and balls, offering strong radial load support up to 967 lbf.
The stainless steel cage ensures smooth operation, even at high speeds of 18,000 rpm.

Its compact size of 25 mm×40 mm×10 mm makes it suitable for space-constrained applications.
The open seal design allows for easy lubrication, maintaining performance in various conditions.

F63805 Bearing operates efficiently within a temperature range of -30° to 110°C.
With ABEC-1 tolerance class, it provides reliable precision for standard applications.

Application

Industrial Uses of F63805 Bearing
F63805 Bearing is commonly used in conveyor systems, where its flanged design helps maintain alignment under radial loads. The chrome steel construction ensures durability in dusty or humid industrial environments.

In automotive applications, F63805 Bearing fits well in electric motors and small gearboxes due to its compact size. The open seal allows for easy lubrication, extending service life in high-speed scenarios.

For home appliances like washing machines, F63805 Bearing provides smooth rotation in drum assemblies. Its stainless steel cage resists corrosion from detergents and moisture over time.

Automation vs Robotics: Applications of F63805 Bearing
F63805 Bearing works efficiently in robotic arms, handling precise movements with its ABEC-1 tolerance. The flange prevents slippage during repetitive motions.

In 3D printers, F63805 Bearing supports linear rails where low friction is key. Its C0 clearance offers just enough play for smooth operation without compromising accuracy.
