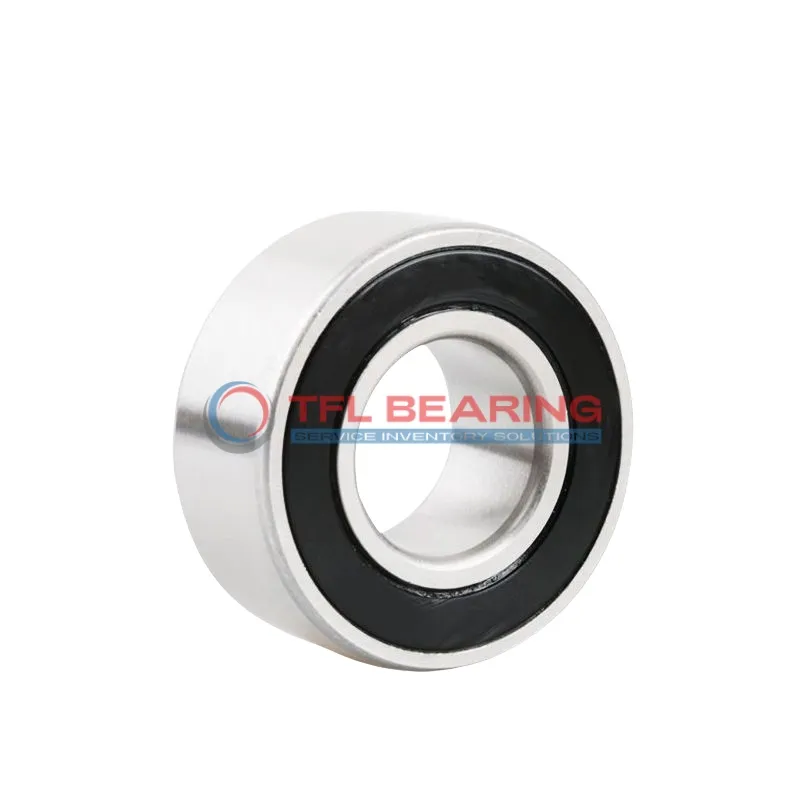

Self Aligning Ball Bearings 2308E-K 2RS

Brand: TFL Bearing Interchangeable: SKF 2308E-K 2RS 40 mm × 90 mm × 33 mm Metric Sealed
Part number: 2308E-K 2RS
Self Aligning Ball Bearings 2308E-K 2RS
In Stock
US$99.85 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia40 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia90 mm
Outer Dia Tolerance-0.015mm to 0
Width33 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring55.4 mm
Internal Diameter On Outer Ring81.8 mm
Chamfer Dimension1.5 mm
Performance
Dynamic Radial Load7,605 lbf
Static Radial Load2,520 lbf
Temperature Range-30° to 110 °C
Max Speed4,800 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceCN
Weight0.96 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2308E-K 2RS is a self-aligning ball bearing with a 40mm tapered bore and 90mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 7605 lbf and runs smoothly at speeds up to 4800 RPM.

Its double-row design and sealed construction help maintain alignment and keep dirt out, while the nylon cage reduces friction. The bearing comes pre-lubricated for easy installation.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for machinery with misalignment issues, like conveyor systems or agricultural equipment.

Weighing 0.96kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it operates reliably in temperatures from -30°C to 110°C.

Features

Why Choose 2308E-K 2RS Bearing for Precision Tasks?

2308E-K 2RS Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 7605 lbf makes it suitable for demanding applications.

The sealed construction and nylon cage reduce friction and protect against contaminants.
This design ensures smooth operation and extends the bearing’s service life.

With a maximum speed of 4,800 rpm, 2308E-K 2RS Bearing balances performance and durability.
Its tapered bore design simplifies installation and enhances alignment accuracy.

The temperature range of -30° to 110°C allows reliable operation in various environments.
Lubrication is pre-applied, reducing maintenance needs and ensuring consistent performance.

Application

Industrial Uses of 2308E-K 2RS Bearing
2308E-K 2RS Bearing is commonly used in industrial machinery like pumps and compressors, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring long service life in dusty environments.

What Makes 2308E-K 2RS Bearing a Preferred Choice?
In automotive applications, 2308E-K 2RS Bearing handles radial loads in components like wheel hubs, thanks to its durable chrome steel construction. The tapered bore provides a secure fit, reducing slippage under heavy loads.

Perfect Fit for Automation: 2308E-K 2RS Bearing
For robotic arms and automated systems, 2308E-K 2RS Bearing offers smooth rotation and low maintenance. Its nylon cage reduces friction, making it ideal for high-precision movements in repetitive tasks.

Light-Duty vs Heavy-Duty: Best Uses for 2308E-K 2RS Bearing
In light-duty applications like conveyor systems, 2308E-K 2RS Bearing ensures reliable performance with minimal upkeep. For heavier loads, its double-row design provides extra stability, making it suitable for industrial gearboxes.
