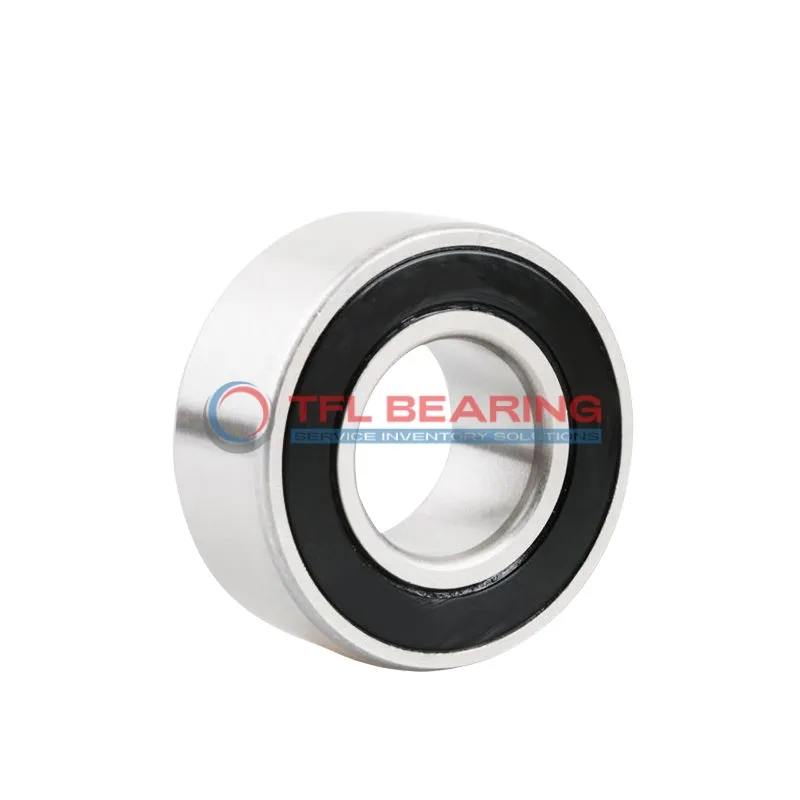

Self Aligning Ball Bearings 2308-K 2RS C/3

Self Aligning Ball Bearings 2308-K 2RS C/3

The 2308-K 2RS C/3 is a self-aligning ball bearing with a 40mm tapered bore and 90mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7605 lbf and runs smoothly at speeds up to 4800 RPM.

Its double-row design and sealed construction keep dirt out and lubrication in, extending its lifespan. The nylon cage reduces friction, making it quieter during operation.

This bearing suits applications where slight misalignment might occur, like conveyor systems or agricultural machinery. It performs reliably in temperatures from -30°C to 110°C.

Weighing 0.96kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for various industries. Interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2308-K 2RS C/3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 33 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 55.4 mm
  • Internal Diameter On Outer Ring 81.8 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 7605 lbf
  • Static Radial Load 2520 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 0.96 kg
  • Price（$） 99.85
Self Aligning Ball Bearings 2308-K 2RS C/3 dimension drawing
Download DWG Download PDF

Features

Why Choose 2308-K 2RS C/3 Bearing for Precision Tasks?

2308-K 2RS C/3 Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 7605 lbf makes it suitable for demanding applications.

The sealed construction and nylon cage reduce contamination risks, enhancing durability.
With a maximum speed of 4,800 rpm, it balances performance and longevity.

2308-K 2RS C/3 Bearing operates smoothly in temperatures from -30° to 110°C, adapting to various environments.
Its tapered bore design simplifies installation, saving time and effort.

The radial clearance of CN ensures reliable operation, even under varying loads.
This bearing is ideal for applications requiring precision and durability.

Application

Common Applications of 2308-K 2RS C/3 Bearing
2308-K 2RS C/3 Bearing is widely used in industrial machinery, especially in applications where misalignment compensation is needed, like conveyor systems and fans. Its sealed design helps keep contaminants out, ensuring longer service life in dusty environments.

In automotive settings, 2308-K 2RS C/3 Bearing can be found in components like wheel hubs and transmissions, where its double-row construction handles radial loads effectively. The taper bore design also simplifies installation in many vehicle models.

For automation equipment, 2308-K 2RS C/3 Bearing’s self-aligning feature makes it suitable for robotic arms and assembly lines, where slight misalignments are common. The nylon cage reduces friction, contributing to smoother operation over time.

In household appliances like washing machines, 2308-K 2RS C/3 Bearing provides reliable performance under varying loads. Its lubricated design ensures quiet operation, making it ideal for noise-sensitive environments.
