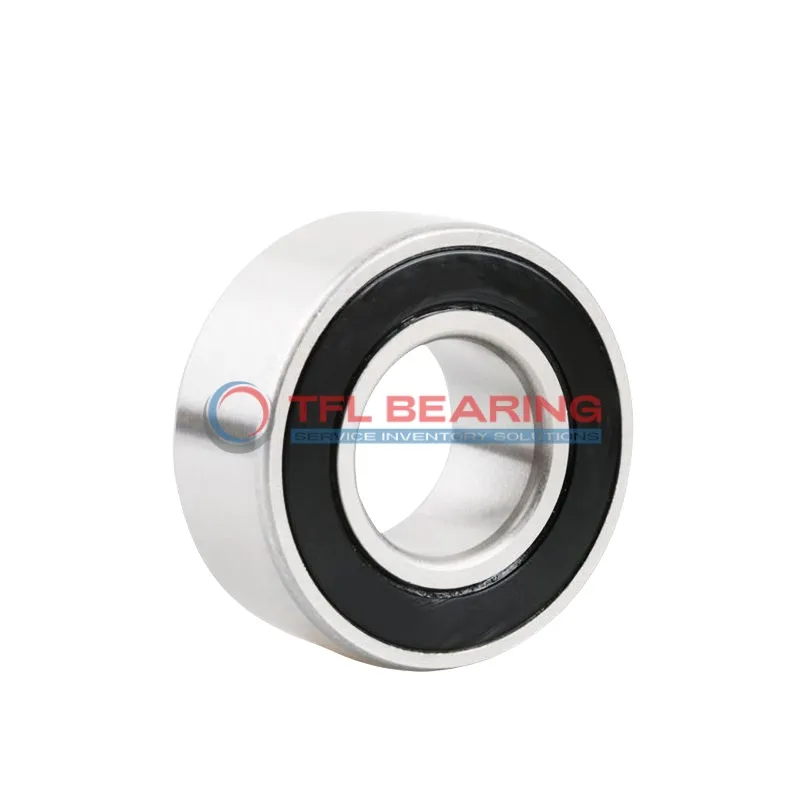

Self Aligning Ball Bearings 2308-2RSTN

Brand: TFL Bearing Interchangeable: SKF 2308-2RSTN 40 mm × 90 mm × 33 mm Metric Sealed
Part number: 2308-2RSTN
Self Aligning Ball Bearings 2308-2RSTN
In Stock
US$132.36 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia40 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia90 mm
Outer Dia Tolerance-0.015mm to 0
Width33 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring55.4 mm
Internal Diameter On Outer Ring81.8 mm
Chamfer Dimension1.5 mm
Performance
Dynamic Radial Load7,605 lbf
Static Radial Load2,520 lbf
Temperature Range-30° to 110 °C
Max Speed4,800 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceCN
Weight0.96 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2308-2RSTN is a self-aligning ball bearing with a 40mm bore and 90mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 7605 lbf and operates smoothly at speeds up to 4800 RPM.

Its double-row design and sealed construction provide reliable performance, while the nylon cage reduces friction for quieter operation. The bearing is pre-lubricated and works in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like conveyor systems or agricultural machinery where misalignment can occur.

Weighing 0.96kg, it offers a sturdy build for its size. Compliant with RoHS and REACH standards for safe use.

Features

Why Choose 2308-2RSTN Bearing for Precision Tasks?

2308-2RSTN Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load reaches 7605 lbf, making it suitable for demanding applications.

The sealed construction and nylon cage help maintain smooth operation while reducing contamination risks.
With a maximum speed of 4,800 rpm, it balances performance and durability.

2308-2RSTN Bearing operates efficiently in temperatures from -30° to 110°C, adapting to various environments.
Its precision engineering ensures reliable performance in radial load applications.

Application

Industrial Uses of 2308-2RSTN Bearing
2308-2RSTN Bearing is commonly used in industrial machinery like conveyor systems and mixers, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring longer service life in dusty environments.

What Makes 2308-2RSTN Bearing a Preferred Choice?
In automotive applications, 2308-2RSTN Bearing is found in gearboxes and wheel hubs, offering reliable performance under radial loads. Its nylon cage reduces friction, making it suitable for high-speed rotations.

Perfect Fit for Automation: 2308-2RSTN Bearing
For robotic arms and automated production lines, 2308-2RSTN Bearing provides smooth movement and low maintenance. The chrome steel construction ensures durability even in continuous operation.

Medical vs Industrial: Where 2308-2RSTN Bearing Excels
In medical devices like MRI machines, 2308-2RSTN Bearing’s precision and low noise are crucial. Meanwhile, its robust design handles heavy loads in industrial pumps and compressors with ease.

Where to Use 2308-2RSTN Bearing
In household appliances like washing machines, 2308-2RSTN Bearing reduces vibration and noise. The lubricated seals ensure quiet operation, making it ideal for everyday use.
