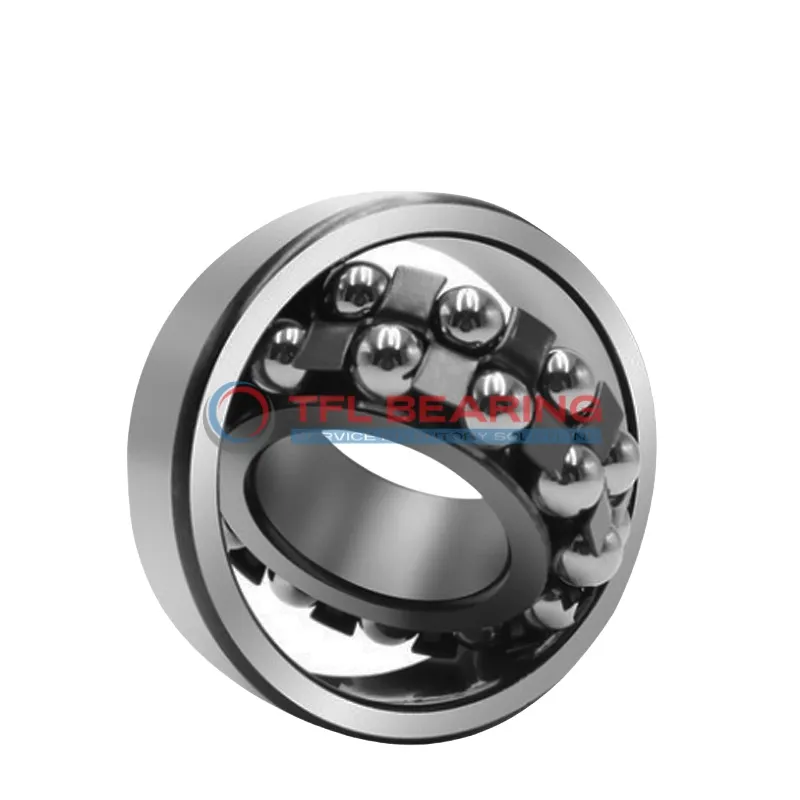

Self Aligning Ball Bearings 2304KJ

Brand: TFL Bearing Interchangeable: SKF 2304KJ 20 mm × 52 mm × 21 mm Metric Sealed
Part number: 2304KJ
Self Aligning Ball Bearings 2304KJ
In Stock
US$20.47 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia20 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia52 mm
Outer Dia Tolerance-0.013mm to 0
Width21 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring28.6 mm
Internal Diameter On Outer Ring46.21 mm
Chamfer Dimension1.1 mm
Performance
Dynamic Radial Load3,218 lbf
Static Radial Load900 lbf
Temperature Range-30° to 110 °C
Max Speed9,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceCN
Weight0.21 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialSteel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2304KJ is a self-aligning ball bearing with a 20mm tapered bore and 52mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 3218 lbf and operates smoothly at speeds reaching 9000 RPM.

Its double-row design and sealed construction offer reliable performance, while the steel cage enhances durability. The bearing works efficiently in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 0.21kg, it’s a robust yet lightweight option. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

Why Choose 2304KJ Bearing for Precision Tasks?

2304KJ Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 3218 lbf makes it suitable for demanding applications.
The sealed construction keeps contaminants out, maintaining smooth operation over time.
With a maximum speed of 9,000 rpm, it offers both reliability and efficiency.

Application

Industrial Uses of 2304KJ Bearing
2304KJ Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The sealed design helps keep contaminants out, extending the bearing’s life in dusty environments.

What Makes 2304KJ Bearing a Preferred Choice?
In automotive applications, 2304KJ Bearing works well in steering columns due to its ability to handle radial loads smoothly. The taper bore ensures a secure fit, reducing slippage during operation.

Built for Heavy-Duty Use: 2304KJ Bearing
For industrial fans, 2304KJ Bearing offers reliable performance with its double-row construction. The chrome steel rings and balls provide good wear resistance, even under continuous use.

Automotive vs Industrial: Applications of 2304KJ Bearing
In agricultural machinery, 2304KJ Bearing supports rotating shafts, thanks to its radial load capacity. The lubricated design ensures smooth operation, reducing maintenance needs in harsh conditions.
