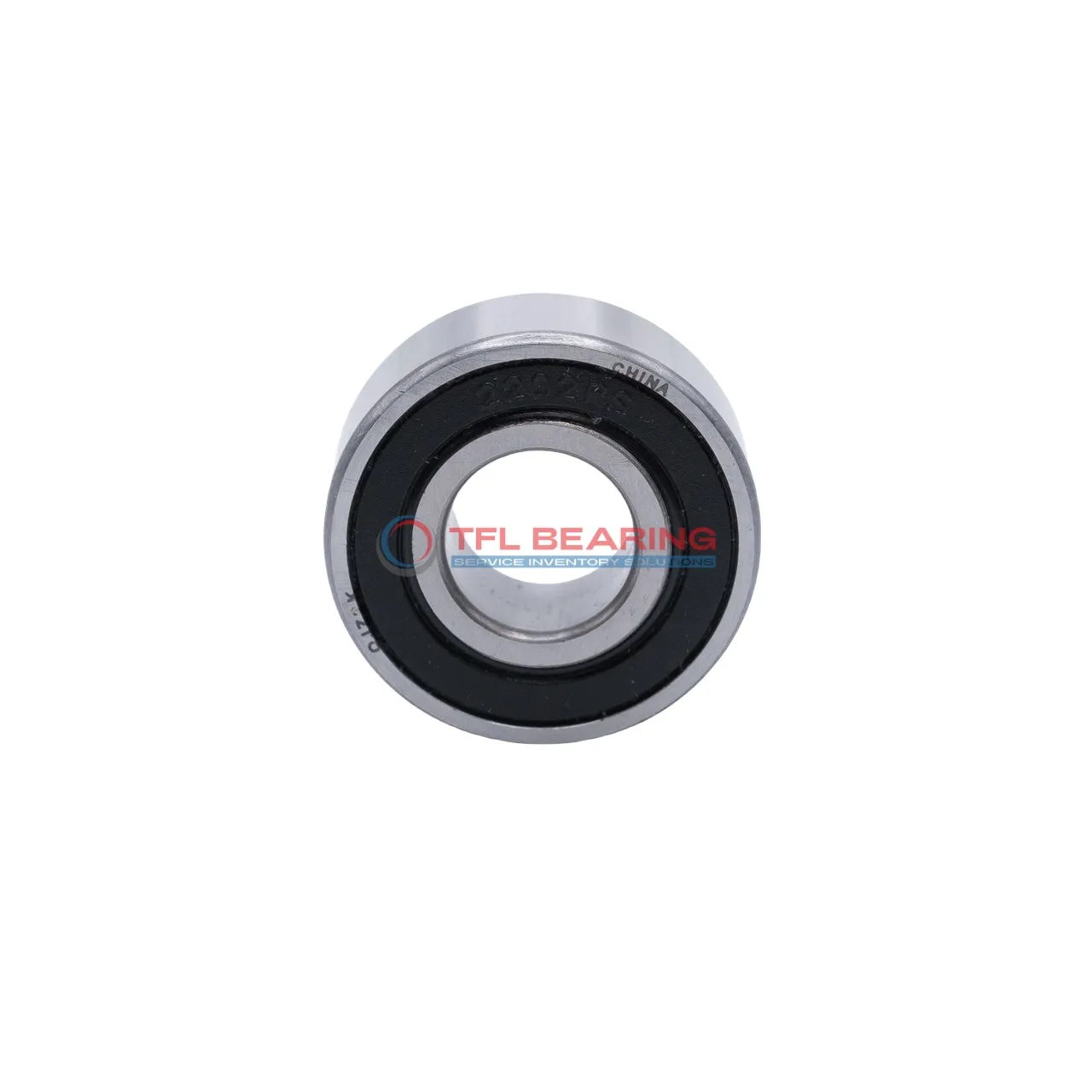

Self Aligning Ball Bearings 2214 E-2RS1TN9

Self Aligning Ball Bearings 2214 E-2RS1TN9

The 2214 E-2RS1TN9 is a self-aligning ball bearing with a 70mm bore and 125mm outer diameter, designed for radial loads. Its compact 31mm width makes it suitable for tight spaces, while the chrome steel construction ensures durability.

This double-row bearing handles radial loads up to 8055 lbf and operates smoothly at speeds up to 3400 RPM. The sealed design keeps lubrication in and contaminants out, reducing maintenance needs.

Its nylon cage minimises friction, and the self-aligning feature compensates for minor misalignments. Ideal for applications like conveyor systems or agricultural machinery where alignment isn’t always perfect.

Weighing 1.45kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2214 E-2RS1TN9
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 125 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 31 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 81.45 mm
  • Internal Diameter On Outer Ring 108.5 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 8055 lbf
  • Static Radial Load 3285 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3400 rpm
  • Weight 1.45 kg
  • Price（$） 149.4
Self Aligning Ball Bearings 2214 E-2RS1TN9 dimension drawing
Download DWG Download PDF

Features

Why Choose 2214 E-2RS1TN9 Bearing for Precision Tasks?

2214 E-2RS1TN9 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load reaches 8055 lbf, making it suitable for demanding applications.
The sealed construction and nylon cage provide smooth operation and reduce maintenance needs.
With a maximum speed of 3,400 rpm, it offers reliable performance in various conditions.

Application

Industrial Uses of 2214 E-2RS1TN9 Bearing
2214 E-2RS1TN9 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its self-aligning feature helps compensate for shaft misalignment. The sealed design keeps contaminants out, extending the bearing’s lifespan in dusty environments.

What Makes 2214 E-2RS1TN9 Bearing a Preferred Choice?
In automotive applications, 2214 E-2RS1TN9 Bearing is ideal for components like wheel hubs and transmissions, thanks to its radial load capacity and durability. The nylon cage reduces friction, ensuring smoother operation at moderate speeds.

Built for Heavy-Duty Use: 2214 E-2RS1TN9 Bearing
For automation equipment, 2214 E-2RS1TN9 Bearing provides reliable performance in robotic arms and assembly lines. Its chrome steel construction offers good resistance to wear, even in high-use scenarios.

Medical vs Industrial: Where 2214 E-2RS1TN9 Bearing Excels
In medical devices like imaging equipment, 2214 E-2RS1TN9 Bearing’s precision and sealed design ensure consistent performance. Meanwhile, in industrial settings, it handles radial loads effectively in pumps and compressors.

Where to Use 2214 E-2RS1TN9 Bearing
2214 E-2RS1TN9 Bearing is a solid choice for household appliances like washing machines, where its self-aligning capability accommodates minor misalignments. The lubricated design also reduces maintenance needs for long-term use.
