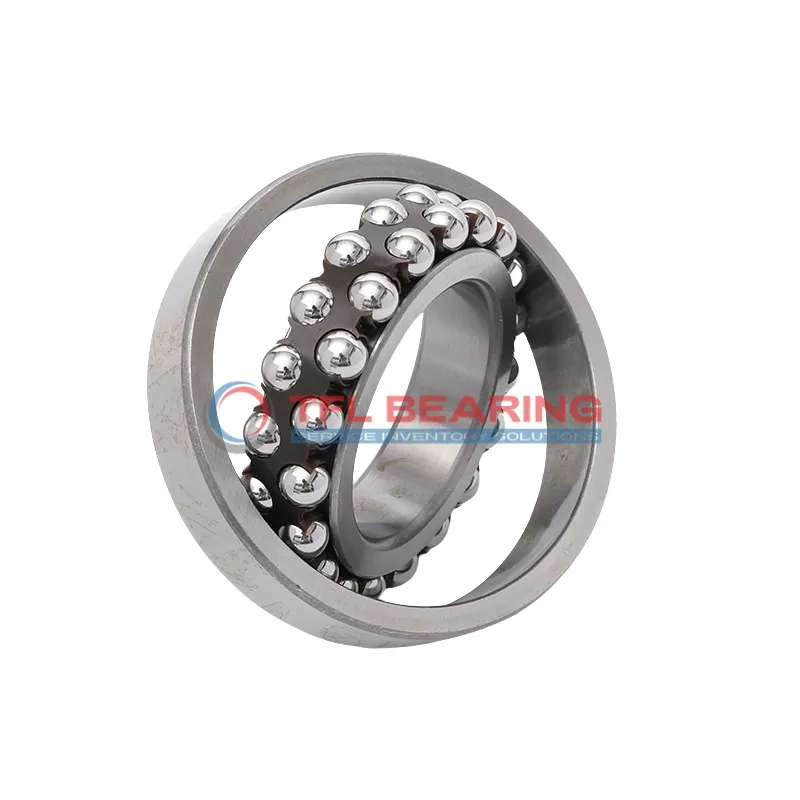

Self Aligning Ball Bearings 1202 ETN9

Brand: TFL Bearing Interchangeable: SKF 1202 ETN9 15 mm × 35 mm × 11 mm Metric Open
Part number: 1202 ETN9
Self Aligning Ball Bearings 1202 ETN9
In Stock
US$10.89 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia15 mm
Bore Dia Tolerance-0.008mm to 0
Outer Dia35 mm
Outer Dia Tolerance-0.011mm to 0
Width11 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring21.15 mm
Internal Diameter On Outer Ring28.9 mm
Chamfer Dimension0.6 mm
Performance
Dynamic Radial Load1,667 lbf
Static Radial Load396 lbf
Temperature Range-30° to 110 °C
Max Speed28,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Weight0.049 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1202 ETN9 is a self-aligning ball bearing with a 15mm bore and 35mm outer diameter, compact at just 11mm wide. Made from chrome steel, it handles radial loads up to 1667 lbf and spins smoothly at speeds up to 28,000 RPM.

Its double-row design and nylon cage help it adjust to minor misalignments while reducing friction. The open seal allows easy lubrication, making maintenance straightforward.

This bearing is interchangeable with SKF models, offering a reliable replacement option. It works well in temperatures from -30°C to 110°C, suitable for electric motors or conveyor systems.

Weighing only 0.049kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use in various applications.

Features

Why Choose 1202 ETN9 Bearing for Precision Tasks?

1202 ETN9 Bearing features a double-row design with chrome steel rings and balls, ensuring smooth radial load handling.
Its dynamic radial load capacity of 1667 lbf makes it suitable for precision applications requiring reliability.
The nylon cage reduces friction and noise, enhancing operational efficiency.
With a maximum speed of 28,000 rpm, it delivers consistent performance in various conditions.

Application

Industrial Uses of 1202 ETN9 Bearing
The 1202 ETN9 Bearing is commonly used in conveyor systems and industrial fans, where its self-aligning feature helps compensate for minor misalignments. Its double-row design provides stable radial load support, making it suitable for continuous operation.

In automotive applications, 1202 ETN9 Bearing fits well in gearboxes and electric motors, ensuring smooth rotation under varying loads. The chrome steel construction enhances its durability, even in high-temperature environments.

For automation equipment like robotic arms, 1202 ETN9 Bearing offers reliable performance with minimal maintenance. The nylon cage reduces friction, contributing to quieter operation in precision-driven systems.

Where Is 1202 ETN9 Bearing Used?
You’ll often find 1202 ETN9 Bearing in household appliances like washing machines, where its self-aligning capability handles vibrations effectively. The lubricated design ensures long service life with minimal upkeep.

In medical devices such as lab centrifuges, 1202 ETN9 Bearing provides consistent performance due to its balanced radial load capacity. The open seal type allows for easy inspection and relubrication when needed.
