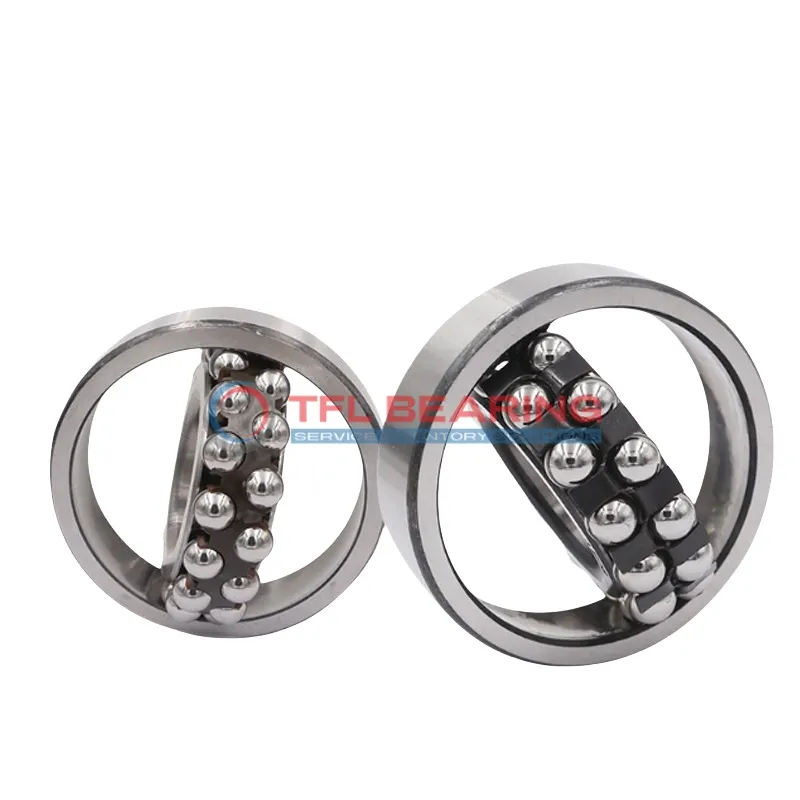

Self Aligning Ball Bearings 2213 C/2

Self Aligning Ball Bearings 2213 C/2

The 2213 C/2 is a self-aligning ball bearing with a 65mm bore and 120mm outer diameter, designed for radial loads. Its double-row construction and sealed design offer reliable performance in various conditions.

Made from chrome steel with a nylon cage, it handles dynamic radial loads up to 7898 lbf and spins smoothly at speeds up to 3600 RPM. The bearing comes pre-lubricated for easy installation.

Its self-aligning feature compensates for minor misalignments, reducing wear and tear. Ideal for applications like conveyor systems or agricultural machinery where alignment might shift.

Weighing 1.35kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it’s safe for use in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2213 C/2
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 31 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 79.3 mm
  • Internal Diameter On Outer Ring 105.8 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 7898 lbf
  • Static Radial Load 3150 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3600 rpm
  • Weight 1.35 kg
  • Price（$） 77.74
Self Aligning Ball Bearings 2213 C/2 dimension drawing
Download DWG Download PDF

Features

Why Choose 2213 C/2 Bearing for Precision Tasks?

2213 C/2 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load reaches 7898 lbf, making it suitable for demanding applications.
The nylon cage reduces friction and noise, enhancing smooth operation.
With a maximum speed of 3,600 rpm, it balances performance and durability.

Application

Industrial Uses of 2213 C/2 Bearing
2213 C/2 Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The sealed design helps keep contaminants out, extending service life in dusty environments.

Where Is 2213 C/2 Bearing Used?
You’ll often find 2213 C/2 Bearing in industrial fans, where its double-row construction handles radial loads efficiently. The nylon cage reduces friction, making it a quiet option for continuous operation.

Built for Heavy-Duty Use: 2213 C/2 Bearing
2213 C/2 Bearing excels in machinery like paper mills, where its chrome steel rings withstand high radial loads. The lubricated design ensures smooth performance even under demanding conditions.

Automotive vs Aerospace: Applications of 2213 C/2 Bearing
In automotive applications, 2213 C/2 Bearing supports components like pumps and compressors. Its metric sizing makes it a versatile choice for various European and Asian vehicle models.

Perfect Fit for Automation: 2213 C/2 Bearing
2213 C/2 Bearing works well in robotic arms, where its self-aligning capability adapts to dynamic movements. The sealed construction also protects against dust in automated production lines.
