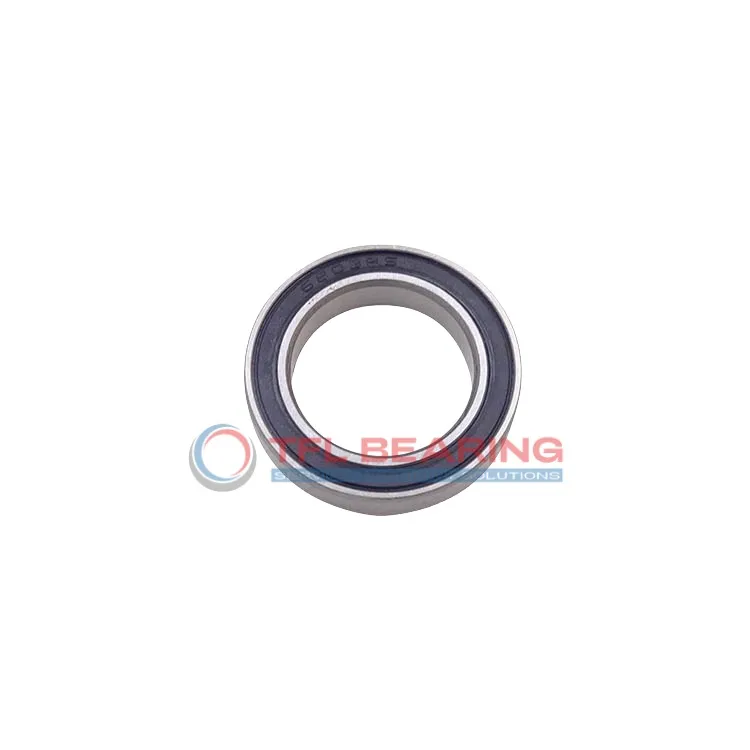

Stainless Steel Deep Groove Ball Bearings W 6205-2RS1/W64

Stainless Steel Deep Groove Ball Bearings W 6205-2RS1/W64

The W 6205-2RS1/W64 is a stainless steel deep groove ball bearing measuring 25mm by 52mm by 15mm, designed for radial loads. It handles dynamic loads up to 2630 lbf and spins smoothly at speeds up to 19,000 RPM.

Its sealed design keeps out dirt and moisture, while the solid oil lubrication ensures long-lasting performance with minimal maintenance. The stainless steel construction resists corrosion, making it suitable for harsh environments.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Ideal for applications like food processing or marine equipment where rust resistance is key.

Weighing just 0.12kg, it’s lightweight yet durable. Compliant with REACH standards for safe use across various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6205-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 15 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 2630 lbf
  • Static Radial Load 1720 lbf
  • Temperature Range -30°to 120 °C
  • Lubrication Soild Oil
  • REACH Compliant
  • Max Speed 19000 rpm
  • Weight 0.12 kg
  • Price（$） 26.58
Stainless Steel Deep Groove Ball Bearings W 6205-2RS1/W64 dimension drawing
Download DWG Download PDF

Features

Why Choose W 6205-2RS1/W64 Bearing for Precision Tasks?

W 6205-2RS1/W64 Bearing is crafted with stainless steel rings and balls, offering excellent corrosion resistance and durability.
Its sealed design keeps contaminants out, ensuring smooth operation in various environments.

The solid oil lubrication reduces maintenance needs while providing consistent performance.
With a dynamic radial load capacity of 2630 lbf, it handles demanding applications with ease.

W 6205-2RS1/W64 Bearing operates at speeds up to 19,000 rpm, balancing efficiency and reliability.
Its precision engineering makes it ideal for tasks requiring consistent, long-lasting performance.

Application

Industrial Uses of W 6205-2RS1/W64 Bearing
W 6205-2RS1/W64 Bearing is commonly used in conveyor systems and packaging machinery, where its sealed design keeps contaminants out. The stainless steel construction ensures it handles moderate radial loads with ease.

What Makes W 6205-2RS1/W64 Bearing a Preferred Choice?
In food processing equipment, W 6205-2RS1/W64 Bearing’s solid oil lubrication reduces maintenance needs. Its corrosion-resistant materials make it ideal for wet or washdown environments.

Built for Heavy-Duty Use: W 6205-2RS1/W64 Bearing
Farm machinery benefits from W 6205-2RS1/W64 Bearing’s durability in dusty conditions. The ABEC 1 tolerance provides reliable performance without requiring high precision.

Automotive vs Aerospace: Applications of W 6205-2RS1/W64 Bearing
While W 6205-2RS1/W64 Bearing fits well in automotive alternators, its speed rating also suits small aerospace actuators. The metric sizing ensures compatibility across industries.

Perfect Fit for Automation: W 6205-2RS1/W64 Bearing
Robotic arms often use W 6205-2RS1/W64 Bearing for smooth radial motion. The sealed design prevents lubricant leakage in continuous operation.
