Self Aligning Ball Bearings 2212 EKTN9/C3

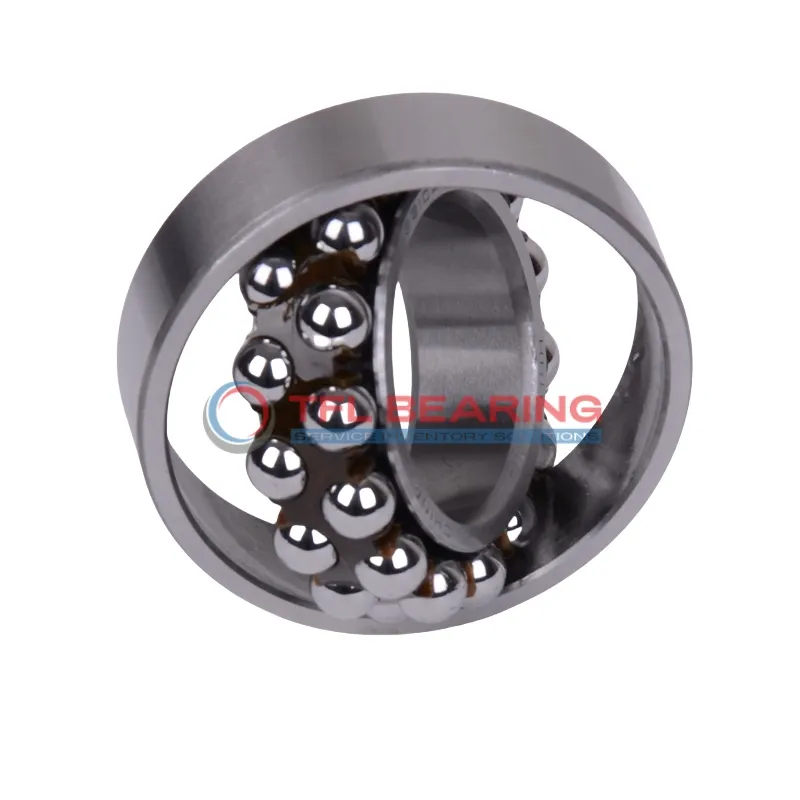

Self Aligning Ball Bearings 2212 EKTN9/C3

The 2212 EKTN9/C3 is a self-aligning ball bearing with a 60mm bore and 110mm outer diameter, designed for radial loads. Its double-row construction and open seal make it durable and easy to maintain.

Made from chrome steel with a nylon cage, it handles dynamic radial loads up to 10980 lbf and spins smoothly at 8000 RPM. The tapered bore ensures a secure fit, while the C3 radial clearance allows for thermal expansion.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Ideal for machinery with misalignment issues, such as conveyor systems or agricultural equipment.

Weighing 1.05kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it operates in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2212 EKTN9/C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 28 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 74.45 mm
  • Internal Diameter On Outer Ring 96.9 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 10980 lbf
  • Static Radial Load 3825 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 8000 rpm
  • Weight 1.05 kg
  • Price（$） 93.14
Self Aligning Ball Bearings 2212 EKTN9/C3 dimension drawing
Download DWG Download PDF

Features

How Does 2212 EKTN9/C3 Bearing Ensure Smooth Radial Load Handling?

2212 EKTN9/C3 Bearing features a double-row design with chrome steel rings and balls, optimised for radial load distribution.
Its dynamic radial load capacity of 10980 lbf ensures reliable performance in various industrial applications.

The nylon cage in 2212 EKTN9/C3 Bearing helps reduce friction and noise, enhancing operational smoothness.
With a maximum speed of 8,000 rpm, it maintains efficiency without compromising durability.

2212 EKTN9/C3 Bearing operates effectively within a temperature range of -30° to 110°C, suitable for diverse environments.
Its C3 radial clearance allows for better thermal expansion handling, ensuring consistent performance.

Application

Industrial Uses of 2212 EKTN9/C3 Bearing
2212 EKTN9/C3 Bearing is commonly used in heavy machinery like conveyors and fans, where its self-aligning feature compensates for minor misalignments. The double-row design provides added stability, making it suitable for high-load applications.

How Does 2212 EKTN9/C3 Bearing Improve Performance?
In automotive systems, 2212 EKTN9/C3 Bearing enhances performance in components like gearboxes, thanks to its tapered bore for secure fitting. The nylon cage reduces friction, ensuring smoother operation at higher speeds.

Built for Heavy-Duty Use: 2212 EKTN9/C3 Bearing
2212 EKTN9/C3 Bearing excels in industrial settings such as pumps and compressors, where radial loads are predominant. Its chrome steel construction offers durability, even in demanding environments.

Medical vs Industrial: Where 2212 EKTN9/C3 Bearing Excels
While 2212 EKTN9/C3 Bearing is robust enough for industrial equipment, its precision also makes it suitable for medical devices like imaging systems. The C3 radial clearance ensures reliable performance under varying temperatures.

Practical Applications of 2212 EKTN9/C3 Bearing
In automation, 2212 EKTN9/C3 Bearing is often found in robotic arms, where its self-aligning capability reduces wear. The lubricated design minimises maintenance, making it a cost-effective choice for continuous operation.
