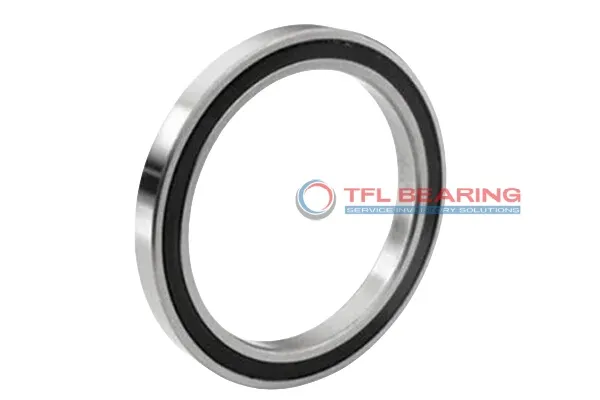

Constant Section (CS) Bearings JG090CP0

Constant Section (CS) Bearings JG090CP0

The JG090CP0 is a constant section bearing measuring 9″×11″×1″, designed for radial loads and made from durable chrome steel. It handles dynamic radial loads up to 8743 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its sealed design keeps lubrication in and contaminants out, while the brass cage ensures reliable performance. The bearing is lubricated for easy maintenance and long service life.

This model is interchangeable with KAYDON bearings, making it a practical choice for replacements. Ideal for applications requiring thin-section bearings, such as robotics or precision machinery.

Weighing 7.2 lbs, it’s robust yet compact for its size. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JG090CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 9"
  • Outer Dia 11"
  • Width 1"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 9.554"
  • Internal Diameter On Outer Ring (Small Side Face) 10.602"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 8743 lbf
  • Static Radial Load 16420 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 12782 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 7.2 lbs
  • price（$） 295.76
Constant Section (CS) Bearings JG090CP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of JG090CP0 Bearing

JG090CP0 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 8743 lbf, ensuring reliable performance in various applications.

The brass cage maintains ball alignment, reducing friction and extending the bearing’s service life.
With a sealed design, JG090CP0 Bearing is protected from contaminants, enhancing durability.

JG090CP0 Bearing operates smoothly within a temperature range of -30°C to 110°C.
Its ABEC-1 tolerance class ensures consistent performance for precision tasks.

Application

Industrial Uses of JG090CP0 Bearing
JG090CP0 Bearing is commonly used in industrial machinery where space is limited but radial load support is essential, such as in robotic arms and conveyor systems. Its thin-section design makes it ideal for compact applications without compromising strength.

Where Is JG090CP0 Bearing Used?
You’ll often find JG090CP0 Bearing in automation equipment, particularly in precision-guided systems like CNC machines. Its sealed construction helps keep contaminants out, ensuring smooth operation in dusty environments.

Built for Heavy-Duty Use: JG090CP0 Bearing
JG090CP0 Bearing handles radial loads effortlessly in applications like packaging machinery, where consistent performance is key. The brass cage adds durability, making it a reliable choice for high-use scenarios.

Automotive vs Aerospace: Applications of JG090CP0 Bearing
In automotive systems, JG090CP0 Bearing supports components like steering columns, while in aerospace, it’s used in control mechanisms. Its inch sizing makes it versatile for various engineering standards.

Perfect Fit for Automation: JG090CP0 Bearing
JG090CP0 Bearing works well in automated production lines, particularly in pick-and-place machines. The chrome steel construction ensures long-lasting performance even with frequent use.
