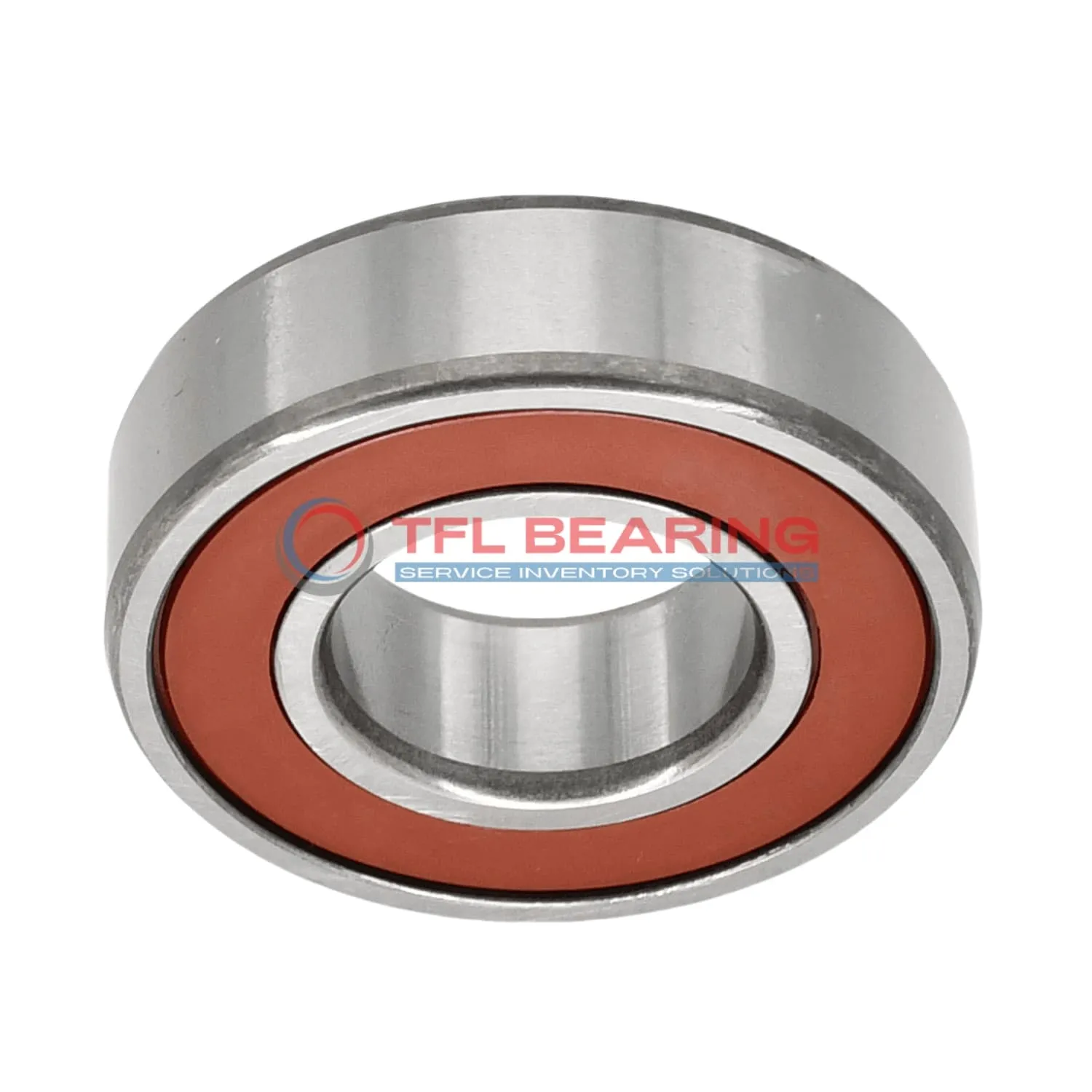

Single Row Deep Groove Ball Bearings 6204-2RSH/C3

Single Row Deep Groove Ball Bearings 6204-2RSH/C3

The 6204-2RSH/C3 is a single-row deep groove ball bearing with a 20mm bore and 47mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 2878 lbf and spins smoothly at speeds up to 15,000 RPM.

Sealed on both sides, it keeps dirt out and grease in, reducing maintenance needs. The C3 radial clearance allows for slight thermal expansion, making it reliable in varying temperatures.

This bearing is interchangeable with SKF models, offering a cost-effective alternative. It’s well-suited for electric motors, pumps, or small machinery where consistent radial load support is needed.

Weighing just 106g, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s safe for use in temperatures ranging from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6204-2RSH/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 14 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2878 lbf
  • Static Radial Load 1495 lbf
  • Max Speed 15000 rpm
  • Weight 106 g
  • price（$） 2.628
Single Row Deep Groove Ball Bearings 6204-2RSH/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6204-2RSH/C3 Bearing

6204-2RSH/C3 Bearing is built with chrome steel rings and balls, offering strong radial load support.
Its dynamic radial load capacity reaches 2878 lbf, making it suitable for various applications.
The sealed design helps keep contaminants out, ensuring smoother operation.
With a maximum speed of 15,000 rpm, it provides reliable performance in demanding conditions.

Application

Industrial Uses of 6204-2RSH/C3 Bearing
The 6204-2RSH/C3 Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep out contaminants. Its C3 radial clearance ensures reliable performance even under varying thermal conditions.

Where Is 6204-2RSH/C3 Bearing Used?
In automotive applications, 6204-2RSH/C3 Bearing fits well in alternators and wheel hubs, thanks to its radial load capacity and sealed construction. The chrome steel rings provide durability for long-term use.

Perfect Fit for Automation: 6204-2RSH/C3 Bearing
For robotic arms and conveyor systems, 6204-2RSH/C3 Bearing offers smooth rotation and low maintenance. Its ISO P0 tolerance makes it suitable for precision tasks in automated environments.

Light-Duty vs Heavy-Duty: Best Uses for 6204-2RSH/C3 Bearing
In light-duty applications like small fans, 6204-2RSH/C3 Bearing ensures quiet operation. For heavier tasks, such as agricultural equipment, its dynamic load rating handles stress effectively.
