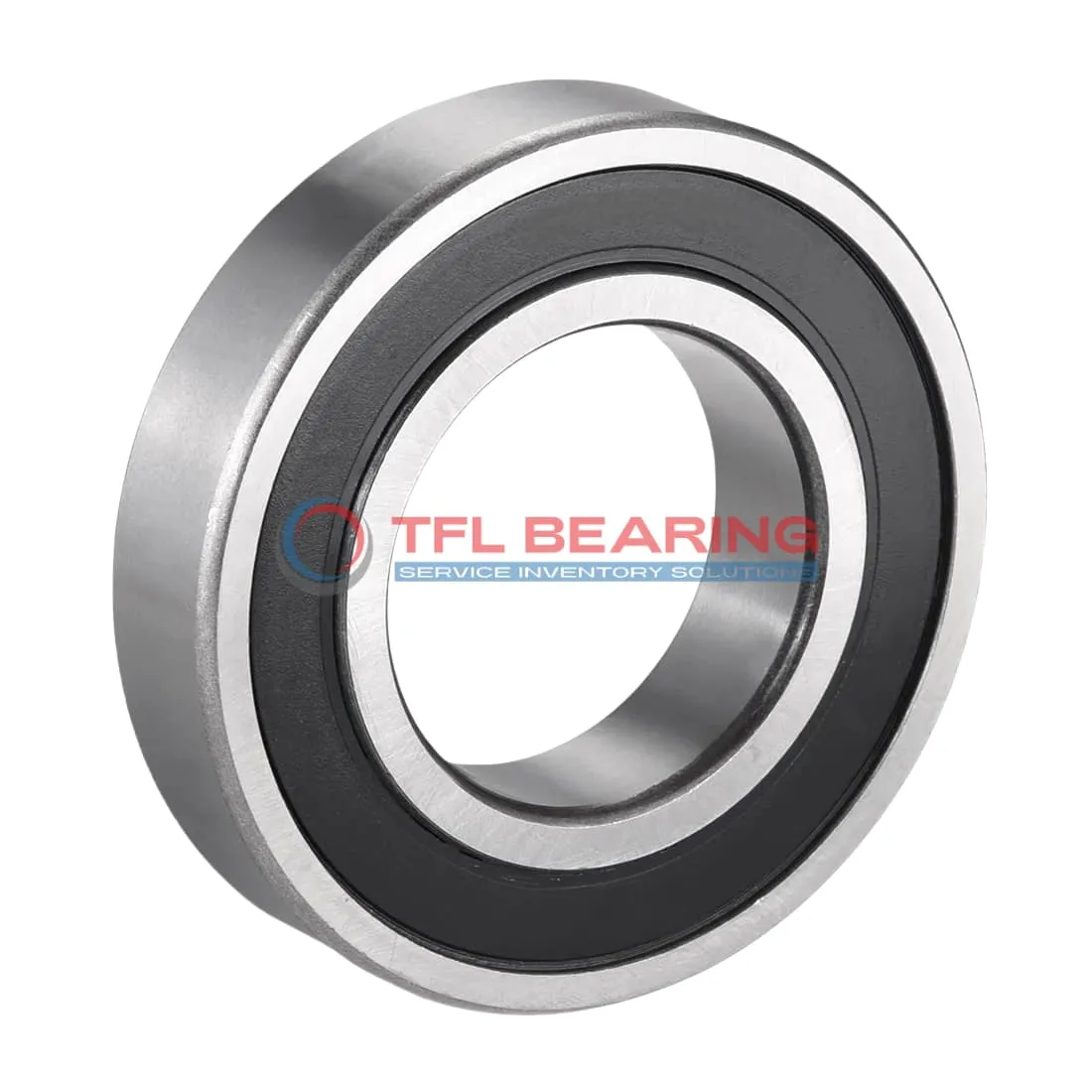

Single Row Deep Groove Ball Bearings 6022-RS1

Single Row Deep Groove Ball Bearings 6022-RS1

The 6022-RS1 is a single-row deep groove ball bearing with a 110mm bore and 170mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 19154 lbf and operates smoothly at speeds up to 2400 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance, while the stainless steel cage adds durability. The bearing performs well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 2.02kg, it’s a robust choice for industrial use. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6022-RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 28 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 19154 lbf
  • Static Radial Load 16523 lbf
  • Max Speed 2400 rpm
  • Weight 2.02 kg
Single Row Deep Groove Ball Bearings 6022-RS1 dimension drawing
Download DWG Download PDF

Features

How Does 6022-RS1 Bearing Reduce Friction?

6022-RS1 Bearing features a sealed design, preventing contaminants from entering and reducing friction.
Its chrome steel construction ensures smooth operation, even under high radial loads.

The single row deep groove design of 6022-RS1 Bearing enhances load distribution, minimising wear.
With a dynamic radial load capacity of 19154 lbf, it handles demanding applications with ease.

6022-RS1 Bearing operates efficiently within a temperature range of -30° to 120°C.
The stainless steel cage maintains ball alignment, contributing to longer service life.

Its P6 tolerance class ensures precision, making 6022-RS1 Bearing suitable for high-performance tasks.
The sealed design also reduces maintenance needs, saving time and effort.

Application

Industrial Uses of 6022-RS1 Bearing
6022-RS1 Bearing is commonly used in industrial machinery like pumps and compressors, where its sealed design helps keep contaminants out. The chrome steel construction ensures it can handle radial loads efficiently in demanding environments.

What Makes 6022-RS1 Bearing a Preferred Choice?
In automotive applications, 6022-RS1 Bearing works well in wheel hubs and transmissions due to its durability and smooth operation. The P6 tolerance class makes it suitable for precision components that require consistent performance.

Built for Heavy-Duty Use: 6022-RS1 Bearing
For automation systems, 6022-RS1 Bearing is a reliable choice for robotic arms and conveyor belts, thanks to its stainless steel cage. Its wide temperature range allows it to perform well in various operating conditions.

Light-Duty vs Heavy-Duty: Best Uses for 6022-RS1 Bearing
In consumer electronics like washing machines, 6022-RS1 Bearing provides quiet and efficient operation. For heavier industrial equipment, its high dynamic radial load capacity ensures long-lasting performance.
