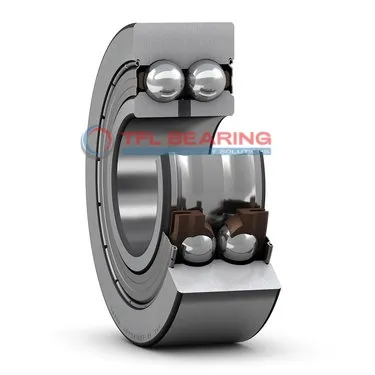

Double Row Angular Contact Ball Bearings (General) 3308 A-2Z

Brand: TFL Bearing Interchangeable: SKF 3308 A-2Z 40 mm × 90 mm × 36.5 mm Metric Shielded
Part number: 3308 A-2Z
Double Row Angular Contact Ball Bearings (General) 3308 A-2Z
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia40 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia90 mm
Outer Dia Tolerance-0.013mm to 0
Width36.5 mm
Width Tolerance-0.05mm to 0
Chamfer Dimension1.5 mm
Performance
Dynamic Radial Load14,738 lbf
Static Radial Load10,800 lbf
Max Speed7,500 rpm
Temperature Range-30° to 110 °C
Characteristics
System of MeasurementMetric
Bearing TypeBall
For Load DirectionAngular Contact
ConstructionDouble Row
Seal TypeShielded
Distance Pressure Point (a)53 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight0.93 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialStainless Steel
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 3308 A-2Z is a double-row angular contact ball bearing with a 40mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 14738 lbf and operates smoothly at speeds up to 7500 RPM.

Its shielded design keeps contaminants out while the stainless steel cage enhances durability. The bearing is pre-lubricated for easy use and performs well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Suitable for machinery requiring high radial load capacity, such as pumps or gear systems.

Weighing 0.93kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safety and environmental friendliness.

Features

Performance Features of 3308 A-2Z Bearing

3308 A-2Z Bearing is built with double-row angular contact design, offering excellent radial load capacity up to 14738 lbf.
The shielded seals protect against contaminants, ensuring smooth operation in various environments.

Chrome steel rings and balls enhance durability, while the stainless steel cage maintains proper ball alignment.
With a maximum speed of 7,500 rpm, it delivers reliable performance in demanding applications.

3308 A-2Z Bearing operates efficiently within a temperature range of -30° to 110°C.
Its P6 tolerance class ensures precision, making it suitable for high-accuracy machinery.

Application

Industrial Uses of 3308 A-2Z Bearing
3308 A-2Z Bearing is commonly used in machine tools, where its double-row design handles combined radial and axial loads efficiently. The shielded seals help keep contaminants out, extending service life in dusty workshops.

What Makes 3308 A-2Z Bearing a Preferred Choice?
In automotive applications like wheel hubs, 3308 A-2Z Bearing offers stable performance due to its chrome steel construction. The P6 tolerance ensures precise alignment, reducing vibration in high-speed scenarios.

Built for Heavy-Duty Use: 3308 A-2Z Bearing
This bearing suits conveyor systems, where its 36.5mm width provides added stability under heavy loads. The stainless steel cage resists corrosion, making it reliable in humid environments.

Medical vs Industrial: Where 3308 A-2Z Bearing Excels
While 3308 A-2Z Bearing works well in industrial pumps, its low-noise operation also fits medical centrifuges. The lubricated design ensures smooth rotation without frequent maintenance.

Automotive vs Aerospace: Applications of 3308 A-2Z Bearing
In cars, 3308 A-2Z Bearing supports transmission shafts, while in aircraft, it aids auxiliary gearboxes. Its 7.5krpm rating balances speed and durability across both sectors.
