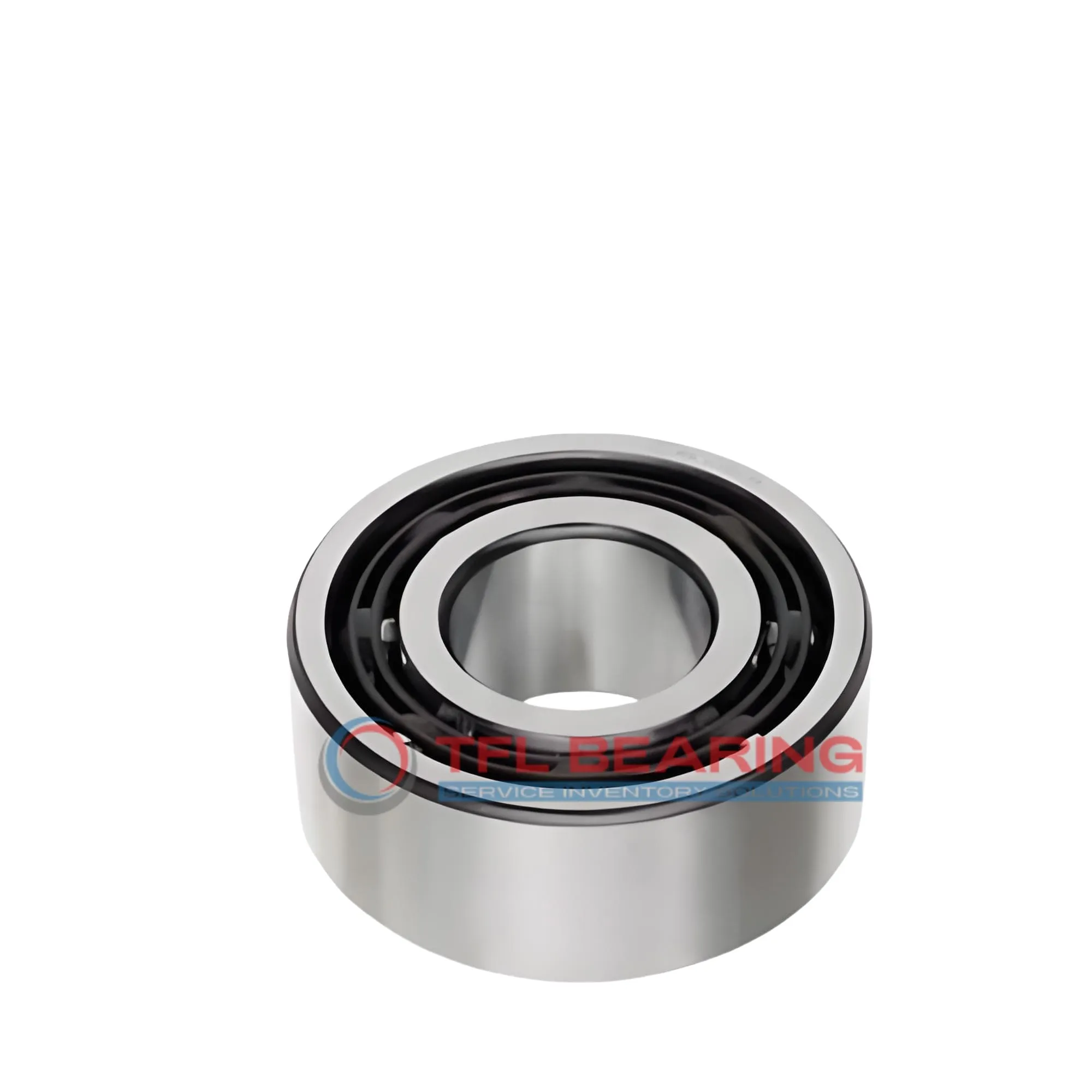

Double Row Angular Contact Ball Bearings (General) 3308 DTN9

Brand: TFL Bearing Interchangeable: SKF 3308 DTN9 40 mm × 90 mm × 36.5 mm Metric Open
Part number: 3308 DTN9
Double Row Angular Contact Ball Bearings (General) 3308 DTN9
In Stock
US$77.80 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia40 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia90 mm
Outer Dia Tolerance-0.013mm to 0
Width36.5 mm
Width Tolerance-0.05mm to 0
Chamfer Dimension1.5 mm
Internal Diameter On Outer Ring59.4 mm
Performance
Dynamic Radial Load15,502 lbf
Static Radial Load12,825 lbf
Max Speed7,000 rpm
Temperature Range-30° to 110 °C
Characteristics
System of MeasurementMetric
Bearing TypeBall
For Load DirectionAngular Contact
ConstructionDouble Row
Seal TypeOpen
Distance Pressure Point (a)84 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight1.05 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 3308 DTN9 is a double-row angular contact ball bearing with a 40mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 15502 lbf and operates smoothly at speeds up to 7000 RPM.

Its open design and nylon cage reduce friction, while the double-row construction provides stability under angular loads. The bearing performs reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for machinery like pumps or gearboxes where combined radial and axial loads are present.

Weighing 1.05kg, it balances durability with manageable size. Compliant with RoHS and REACH standards for safe industrial use.

Features

Performance Features of 3308 DTN9 Bearing

3308 DTN9 Bearing is built with chrome steel rings and balls, offering excellent resistance to radial and angular loads.
Its dynamic radial load capacity of 15502 lbf ensures reliable performance in various applications.

The double-row design of 3308 DTN9 Bearing enhances load distribution, reducing stress on individual components.
Nylon cage material helps maintain smooth operation and reduces friction during use.

3308 DTN9 Bearing operates efficiently within a temperature range of -30° to 110°C, suitable for diverse environments.
With a maximum speed of 7,000 rpm, it balances durability and performance in demanding conditions.

The P6 tolerance class ensures precision and consistency in 3308 DTN9 Bearing’s operation.
Its open design allows for easy lubrication, extending service life and reducing maintenance needs.

Application

Industrial Uses of 3308 DTN9 Bearing
3308 DTN9 Bearing is commonly used in machine tools, where its double-row design handles combined radial and axial loads efficiently. The open seal type allows for easy lubrication, extending service life in demanding conditions.

In automotive applications, 3308 DTN9 Bearing supports wheel hubs and transmission systems, providing stability under high-speed rotations. Its metric sizing ensures compatibility with a variety of vehicle designs.

For automation equipment, 3308 DTN9 Bearing’s nylon cage reduces friction, making it suitable for robotic arms and precision machinery. The P6 tolerance class ensures consistent performance in repetitive tasks.

Medical imaging devices benefit from 3308 DTN9 Bearing’s chrome steel construction, which offers reliable operation in critical environments. The lubricated design minimises maintenance needs for long-term use.
