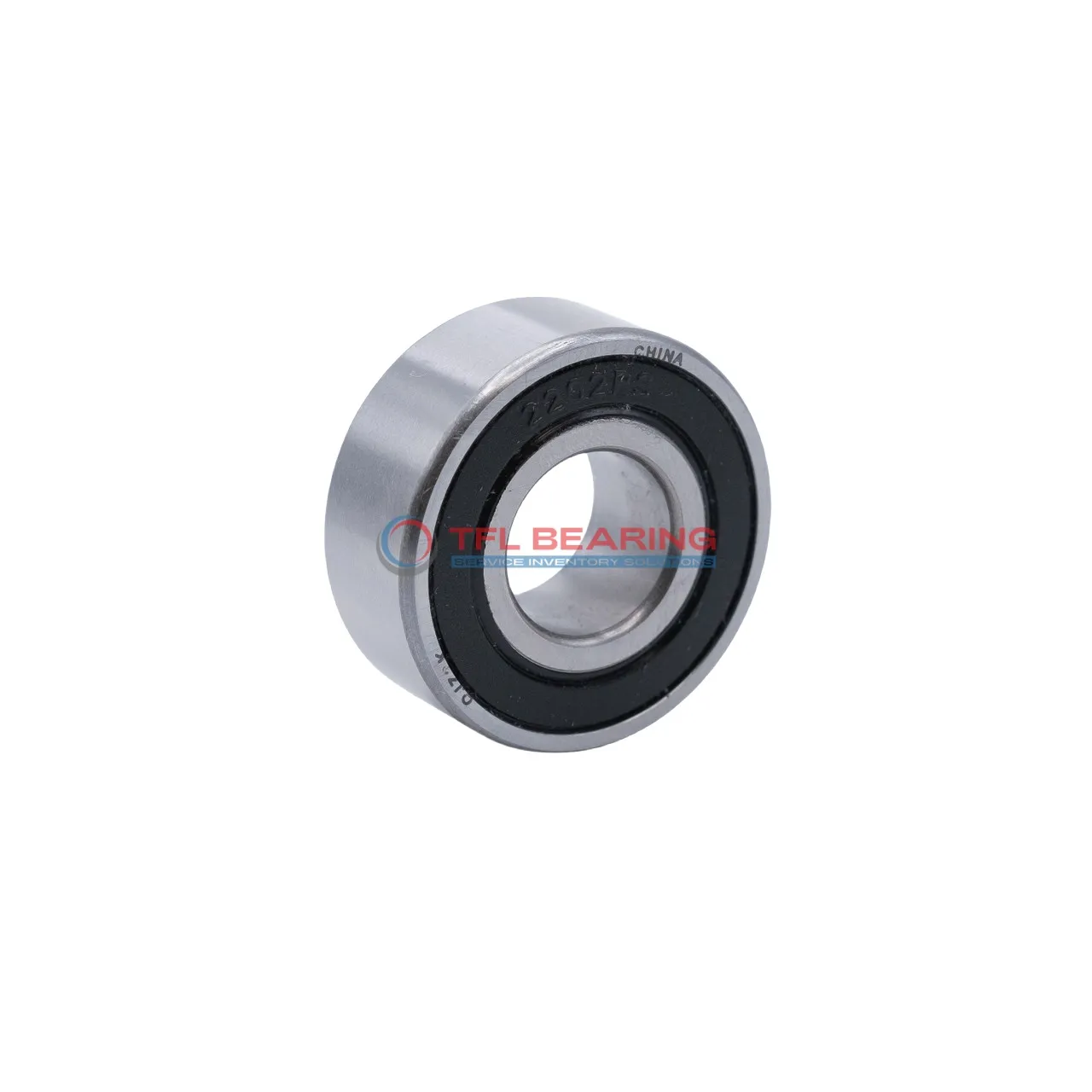

Self Aligning Ball Bearings 2211E-2RS C/3

Brand: TFL Bearing Interchangeable: SKF 2211E-2RS C/3 55 mm × 100 mm × 25 mm Metric Sealed
Part number: 2211E-2RS C/3
Self Aligning Ball Bearings 2211E-2RS C/3
In Stock
US$84.55 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia55 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia100 mm
Outer Dia Tolerance-0.015mm to 0
Width25 mm
Width Tolerance-0.15mm to 0
External Diameter On Inner Ring65.9 mm
Internal Diameter On Outer Ring88.5 mm
Chamfer Dimension1.5 mm
Performance
Dynamic Radial Load6,210 lbf
Static Radial Load2,385 lbf
Temperature Range-30° to 110 °C
Max Speed4,300 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceCN
Weight0.79 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2211E-2RS C/3 is a self-aligning ball bearing with a 55mm bore and 100mm outer diameter, designed for radial loads. Its double-row construction and sealed design offer reliable performance in various conditions.

Made from chrome steel with a nylon cage, it handles dynamic radial loads up to 6210 lbf and spins smoothly at speeds up to 4300 RPM. The sealed design keeps lubrication in and contaminants out, reducing maintenance needs.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. It works well in temperatures from -30°C to 110°C, suitable for industrial machinery or conveyor systems.

Weighing 0.79kg, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and dependable option for demanding applications.

Features

Why Choose 2211E-2RS C/3 Bearing for Precision Tasks?

2211E-2RS C/3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 6210 lbf makes it suitable for demanding applications.
The sealed construction and nylon cage provide smooth operation and reduce maintenance needs.
With a maximum speed of 4,300 rpm, it offers reliable performance in various conditions.

Engineered for Reliability: 2211E-2RS C/3 Bearing

2211E-2RS C/3 Bearing is built with chrome steel components, enhancing durability and resistance to wear.
Its double-row construction allows for self-alignment, accommodating minor misalignments.
The sealed design protects against contaminants, ensuring long service life.
Operating within a temperature range of -30° to 110°C, it performs well in diverse environments.

How Does 2211E-2RS C/3 Bearing Reduce Friction?

2211E-2RS C/3 Bearing uses chrome steel balls and rings, minimising friction during operation.
The nylon cage helps maintain ball alignment, further reducing friction and wear.
Lubricated for smooth performance, it ensures efficient operation under radial loads.
Its sealed design also prevents lubricant leakage, maintaining consistent performance.

Built for Durability: 2211E-2RS C/3 Bearing

2211E-2RS C/3 Bearing’s chrome steel construction provides excellent resistance to wear and corrosion.
The double-row design distributes loads evenly, enhancing longevity.
With a static radial load capacity of 2385 lbf, it handles heavy-duty applications with ease.
Its sealed and lubricated design ensures minimal maintenance and reliable operation.

What Makes 2211E-2RS C/3 Bearing Suitable for High-Temperature Applications?

2211E-2RS C/3 Bearing operates effectively in temperatures ranging from -30° to 110°C.
Its chrome steel components maintain structural integrity under thermal stress.
The sealed design protects internal parts from dust and moisture in harsh environments.
With a maximum speed of 4,300 rpm, it delivers consistent performance in varied conditions.

Application

Common Applications of 2211E-2RS C/3 Bearing
In industrial settings, 2211E-2RS C/3 Bearing is commonly used in conveyor systems and fans, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, extending service life in dusty environments.

Where Is 2211E-2RS C/3 Bearing Used?
You’ll find 2211E-2RS C/3 Bearing in automotive applications like electric motors and pumps, thanks to its reliable radial load capacity. The nylon cage reduces friction, making it quieter for vehicle components.

Built for Heavy-Duty Use: 2211E-2RS C/3 Bearing
This bearing handles tough conditions in construction equipment, where its double-row design distributes loads evenly. The chrome steel construction ensures durability even under constant stress.

Medical vs Industrial: Where 2211E-2RS C/3 Bearing Excels
In medical devices like lab centrifuges, 2211E-2RS C/3 Bearing offers smooth, vibration-free operation. For industrial uses, its high dynamic load rating makes it ideal for heavy machinery.

Practical Applications of 2211E-2RS C/3 Bearing
Home appliances like washing machines benefit from 2211E-2RS C/3 Bearing’s sealed design, which prevents water damage. The lubricated finish ensures quiet performance for everyday use.
