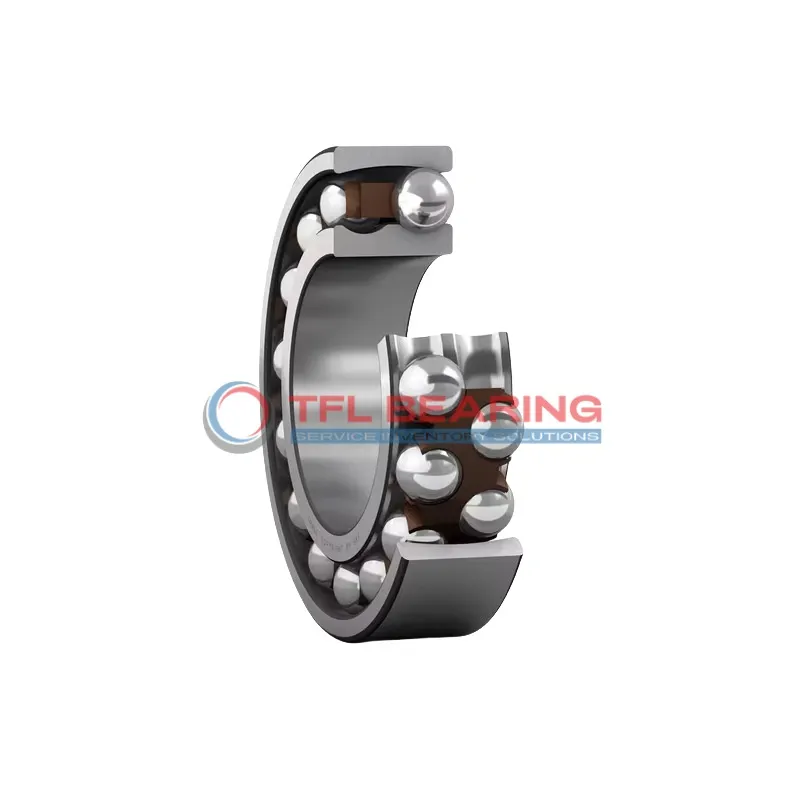

Self Aligning Ball Bearings 2211-K-TVH-C3

Self Aligning Ball Bearings 2211-K-TVH-C3

The 2211-K-TVH-C3 is a self-aligning ball bearing with a 55mm tapered bore and 100mm outer diameter, designed for radial loads. It handles up to 6210 lbf of dynamic load and runs smoothly at speeds up to 4300 RPM.

Made from chrome steel with a nylon cage, it offers durability and quiet operation. The sealed design keeps lubrication in and contaminants out, reducing maintenance needs.

Its double-row construction and C3 radial clearance allow for slight misalignments, making it forgiving in less precise setups. Ideal for applications like conveyor systems or agricultural machinery where alignment might vary.

Weighing 0.79kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements, especially where SKF compatibility is needed.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2211-K-TVH-C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 55 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 25 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 65.9 mm
  • Internal Diameter On Outer Ring 88.5 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 6210 lbf
  • Static Radial Load 2385 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4300 rpm
  • Weight 0.79 kg
  • Price（$） 62.87
Self Aligning Ball Bearings 2211-K-TVH-C3 dimension drawing
Download DWG Download PDF

Features

Why Choose 2211-K-TVH-C3 Bearing for Precision Tasks?

2211-K-TVH-C3 Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 6210 lbf makes it suitable for demanding applications.

The sealed construction and nylon cage reduce friction and protect against contaminants.
With a maximum speed of 4,300 rpm, it offers reliable performance in various conditions.

2211-K-TVH-C3 Bearing’s C3 radial clearance allows for thermal expansion, enhancing durability.
Its tapered bore design ensures secure fitting, reducing installation time and effort.

Application

Key Fields for 2211-K-TVH-C3 Bearing
2211-K-TVH-C3 Bearing is commonly used in industrial machinery, especially in applications where misalignment compensation is needed, like conveyor systems and fans. Its sealed design helps keep contaminants out, ensuring longer service life in dusty environments.

How Does 2211-K-TVH-C3 Bearing Improve Performance?
In automotive applications, 2211-K-TVH-C3 Bearing is often found in gearboxes and drivetrains, where its double-row design handles radial loads efficiently. The tapered bore ensures a secure fit, reducing slippage under high torque.

Perfect Fit for Automation: 2211-K-TVH-C3 Bearing
For robotics and automated systems, 2211-K-TVH-C3 Bearing offers smooth rotation and alignment flexibility, making it ideal for robotic arms and precision machinery. The nylon cage reduces friction, enhancing overall performance.

Medical vs Industrial: Where 2211-K-TVH-C3 Bearing Excels
In medical devices like imaging equipment, 2211-K-TVH-C3 Bearing provides reliable performance with minimal maintenance. Its chrome steel construction ensures durability, while the sealed design keeps it clean in sensitive environments.

Light-Duty vs Heavy-Duty: Best Uses for 2211-K-TVH-C3 Bearing
For light-duty applications like small electric motors, 2211-K-TVH-C3 Bearing offers quiet operation and efficiency. In heavy-duty scenarios, such as industrial pumps, its robust design handles higher loads without compromising performance.
