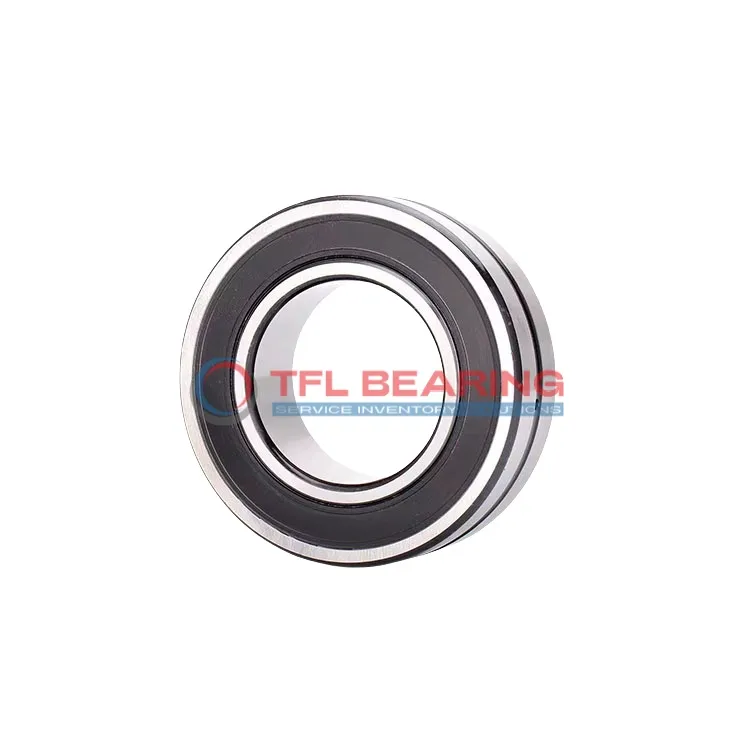

Self Aligning Ball Bearings 2209K-2RSTN

Brand: TFL Bearing Interchangeable: SKF 2209K-2RSTN 45 mm × 85 mm × 23 mm Metric Sealed
Part number: 2209K-2RSTN
Self Aligning Ball Bearings 2209K-2RSTN
In Stock
US$80.24 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia45 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia85 mm
Outer Dia Tolerance-0.015mm to 0
Width23 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring52.9 mm
Internal Diameter On Outer Ring75.25 mm
Chamfer Dimension1.1 mm
Performance
Dynamic Radial Load5,152 lbf
Static Radial Load1,755 lbf
Temperature Range-30° to 110 °C
Max Speed5,300 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceCN
Weight0.53 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2209K-2RSTN is a self-aligning ball bearing with a 45mm tapered bore and 85mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 5152 lbf and runs smoothly at speeds up to 5300 RPM.

Its double-row design and sealed construction help it stay aligned and protected from dust, while the nylon cage reduces noise. The bearing comes pre-lubricated for easy installation and works in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable alternative for replacements. Perfect for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 0.53kg, it’s a robust yet manageable size. Compliant with RoHS and REACH standards for safe use.

Features

How Is 2209K-2RSTN Bearing Engineered for Reliability?

2209K-2RSTN Bearing features a double-row design with chrome steel rings and balls, ensuring strong radial load capacity.
Its dynamic radial load reaches 5152 lbf, making it suitable for demanding applications.

The sealed construction and nylon cage help maintain lubrication and reduce wear over time.
With a maximum speed of 5,300 rpm, it offers a balance of durability and performance.

2209K-2RSTN Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its tapered bore design ensures secure fitting and alignment in various setups.

Application

Where Is 2209K-2RSTN Bearing Used?
2209K-2RSTN Bearing is commonly used in industrial machinery, especially where misalignment compensation is needed, such as in conveyor systems or textile equipment. Its double-row design and sealed construction help maintain performance in dusty or humid environments.

In automotive applications, 2209K-2RSTN Bearing fits well in wheel hubs and transmissions, thanks to its radial load capacity and tapered bore for secure mounting. The nylon cage reduces noise, making it suitable for passenger vehicles.

For automation systems, 2209K-2RSTN Bearing ensures smooth operation in robotic arms and assembly lines. The lubricated design minimises maintenance, while the chrome steel construction offers long-lasting durability.

In household appliances like washing machines, 2209K-2RSTN Bearing handles vibrations effectively. The sealed design prevents dirt ingress, extending the bearing’s lifespan in everyday use.
