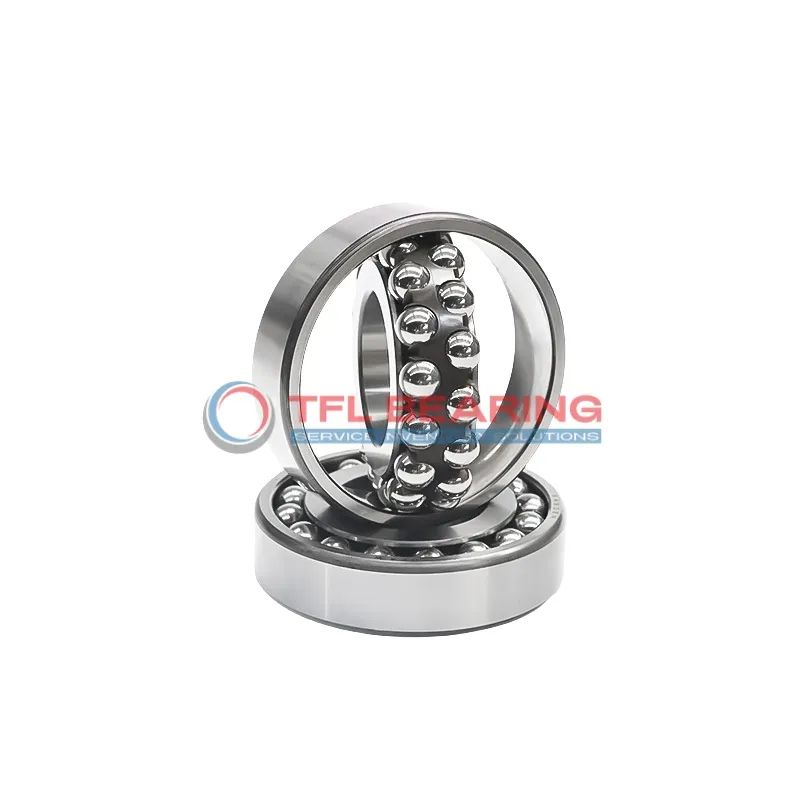

Self Aligning Ball Bearings 2209-K-TVH-C3

Self Aligning Ball Bearings 2209-K-TVH-C3

The 2209-K-TVH-C3 is a self-aligning ball bearing with a 45mm tapered bore and 85mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 5152 lbf and operates smoothly at speeds reaching 5300 RPM.

Its double-row design and sealed construction offer reliable performance, while the nylon cage reduces friction. The bearing works efficiently in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 0.53kg, it’s a durable option for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2209-K-TVH-C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 52.9 mm
  • Internal Diameter On Outer Ring 75.25 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 5152 lbf
  • Static Radial Load 1755 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5300 rpm
  • Weight 0.53 kg
  • Price（$） 43.85
Self Aligning Ball Bearings 2209-K-TVH-C3 dimension drawing
Download DWG Download PDF

Features

How Is 2209-K-TVH-C3 Bearing Engineered for Reliability?

2209-K-TVH-C3 Bearing features a double-row design with chrome steel rings and balls, ensuring strong radial load capacity.
Its dynamic radial load reaches 5152 lbf, making it suitable for demanding applications.

The sealed construction and nylon cage help maintain smooth operation while reducing maintenance needs.
With a maximum speed of 5,300 rpm, it balances performance and durability.

2209-K-TVH-C3 Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its C3 radial clearance ensures reliable performance under varying conditions.

Application

Common Applications of 2209-K-TVH-C3 Bearing
In industrial settings, 2209-K-TVH-C3 Bearing is commonly used in conveyor systems and fans, where its self-aligning feature compensates for minor misalignments. The sealed design helps keep contaminants out, extending service life in dusty environments.

Where Is 2209-K-TVH-C3 Bearing Used?
You’ll often find 2209-K-TVH-C3 Bearing in automotive applications like wheel hubs and transmissions, where its radial load capacity and tapered bore ensure secure fitting. The nylon cage reduces vibration, making rides smoother.

Ideal for Precision: 2209-K-TVH-C3 Bearing
For medical devices like MRI machines, 2209-K-TVH-C3 Bearing offers reliable performance with its chrome steel construction. The C3 radial clearance allows for thermal expansion, crucial in precision equipment.

Automotive vs Industrial: Applications of 2209-K-TVH-C3 Bearing
In automotive uses, 2209-K-TVH-C3 Bearing handles high radial loads in drivetrains, while in industrial gearboxes, its self-aligning capability reduces wear. The lubricated design ensures consistent performance in both scenarios.

Perfect Fit for Automation: 2209-K-TVH-C3 Bearing
Robotic arms and automated assembly lines benefit from 2209-K-TVH-C3 Bearing’s ability to handle misalignment and radial loads. The sealed construction keeps lubrication in and debris out, ideal for high-cycle operations.
