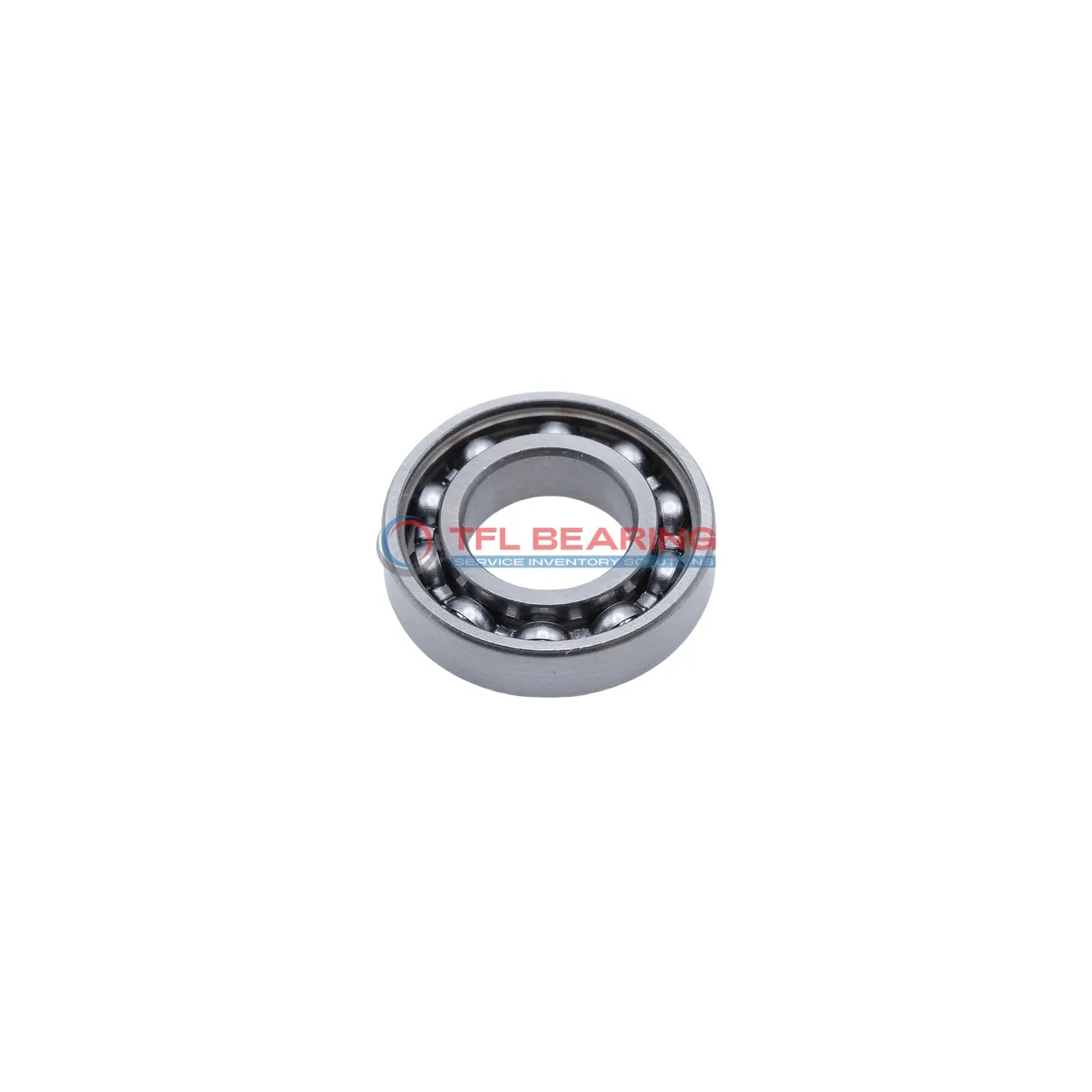

Single Row Deep Groove Ball Bearings 210SFFC

Single Row Deep Groove Ball Bearings 210SFFC

The 210SFFC is a single-row deep groove ball bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 8790 lbf and operates smoothly at speeds up to 8000 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 0.5kg, it offers a good balance of strength and manageability. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 210SFFC
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 8790 lbf
  • Static Radial Load 7756 lbf
  • Max Speed 8000 rpm
  • Weight 0.5 kg
  • price（$） 26.361
Single Row Deep Groove Ball Bearings 210SFFC dimension drawing
Download DWG Download PDF

Features

Performance Features of 210SFFC Bearing

210SFFC Bearing is crafted with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 8790 lbf, making it suitable for demanding applications.

The single-row deep groove design ensures smooth operation and efficient load distribution.
With a maximum speed of 8,000 rpm, it balances performance and durability.

210SFFC Bearing operates in temperatures from -30°C to 120°C, adapting to various environments.
Its open seal type allows for easy maintenance and lubrication.

The ABEC 1 tolerance class ensures reliable precision for general applications.
Constructed entirely from chrome steel, it provides long-lasting performance.

Application

Industrial Uses of 210SFFC Bearing
210SFFC Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity ensures reliable performance. The open design allows for easy lubrication, extending its service life in demanding conditions.

Where Is 210SFFC Bearing Used?
In automotive applications, 210SFFC Bearing fits well in components such as alternators and wheel hubs, providing smooth rotation under radial loads. Its chrome steel construction offers durability, making it suitable for long-term use.

Built for Heavy-Duty Use: 210SFFC Bearing
For automation systems, 210SFFC Bearing supports robotic arms and conveyor belts, where precision and stability are key. The ABEC 1 tolerance ensures consistent performance in high-speed operations.

Automotive vs Industrial: Applications of 210SFFC Bearing
In household appliances like washing machines, 210SFFC Bearing reduces noise and vibration, enhancing user comfort. Its metric sizing makes it a versatile choice for various equipment designs.

Key Fields for 210SFFC Bearing
Medical devices such as centrifuges benefit from 210SFFC Bearing’s reliable radial load handling and low maintenance needs. The chrome steel cage adds extra resistance to wear in sterile environments.
