Constant Section (CS) Bearings NC090AR0

Constant Section (CS) Bearings NC090AR0

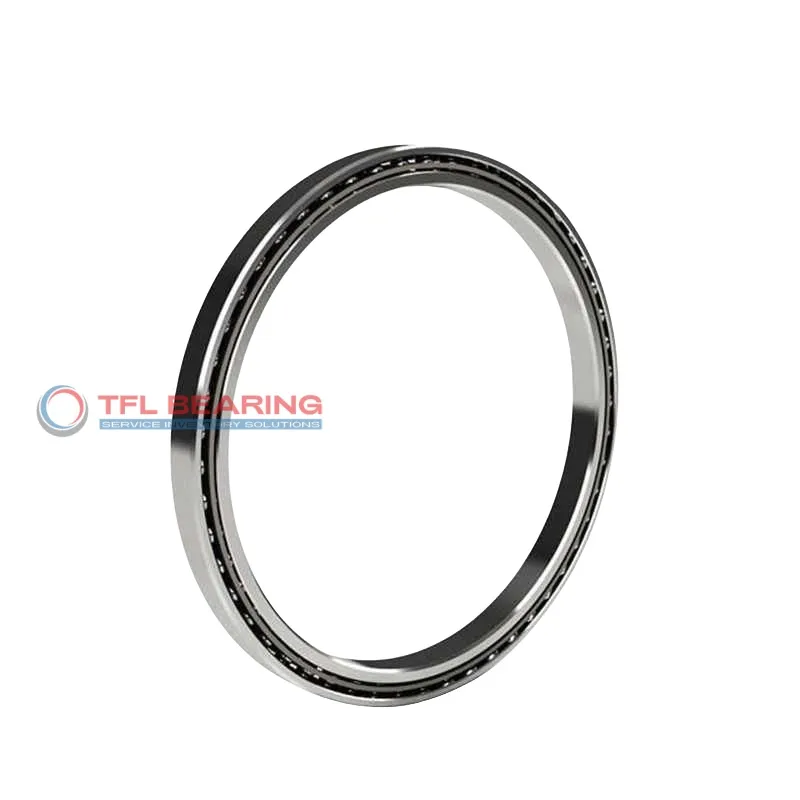

The NC090AR0 is a thin-section angular contact bearing with a 9″ bore and 9.75″ outer diameter, designed for inch-based systems. Its compact 0.375″ width and chromium-plated surface make it ideal for space-constrained applications.

This bearing handles radial loads up to 1822 lbf and static thrust loads of 4630 lbf, with a 30° contact angle for smooth angular performance. It operates well in temperatures from -30°C to 110°C.

Made from durable chrome steel with a brass cage, it offers reliable performance in demanding conditions. The open design allows easy lubrication and maintenance.

Suitable for precision equipment and machinery where thin sections are needed, this model is interchangeable with KAYDON bearings. Its ABEC-1 tolerance ensures consistent performance for general industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NC090AR0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 9"
  • Bore Dia Tolerance -0.0012"– 0"
  • Outer Dia 9.75"
  • Outer Dia Tolerance -0.0012"– 0"
  • Width 0.375"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Endura-kote Plated Bearings
  • Series NC 3/8" x 3/8"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • Contact Angle 30°
  • External Diameter On Inner Ring 9.277"
  • Internal Diameter On Outer Ring (Small Side Face) 9.473"
  • Internal Diameter On Outer Ring (Large Side Face) 9.546"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1822 lbf
  • Static Radial Load 5520 lbf
  • Static Thrust Load 4630 lbf
  • Static Moment 15930 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 3366 lbf
  • Surface Chromium Plating
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.98 lbs
  • price（$） 257.7

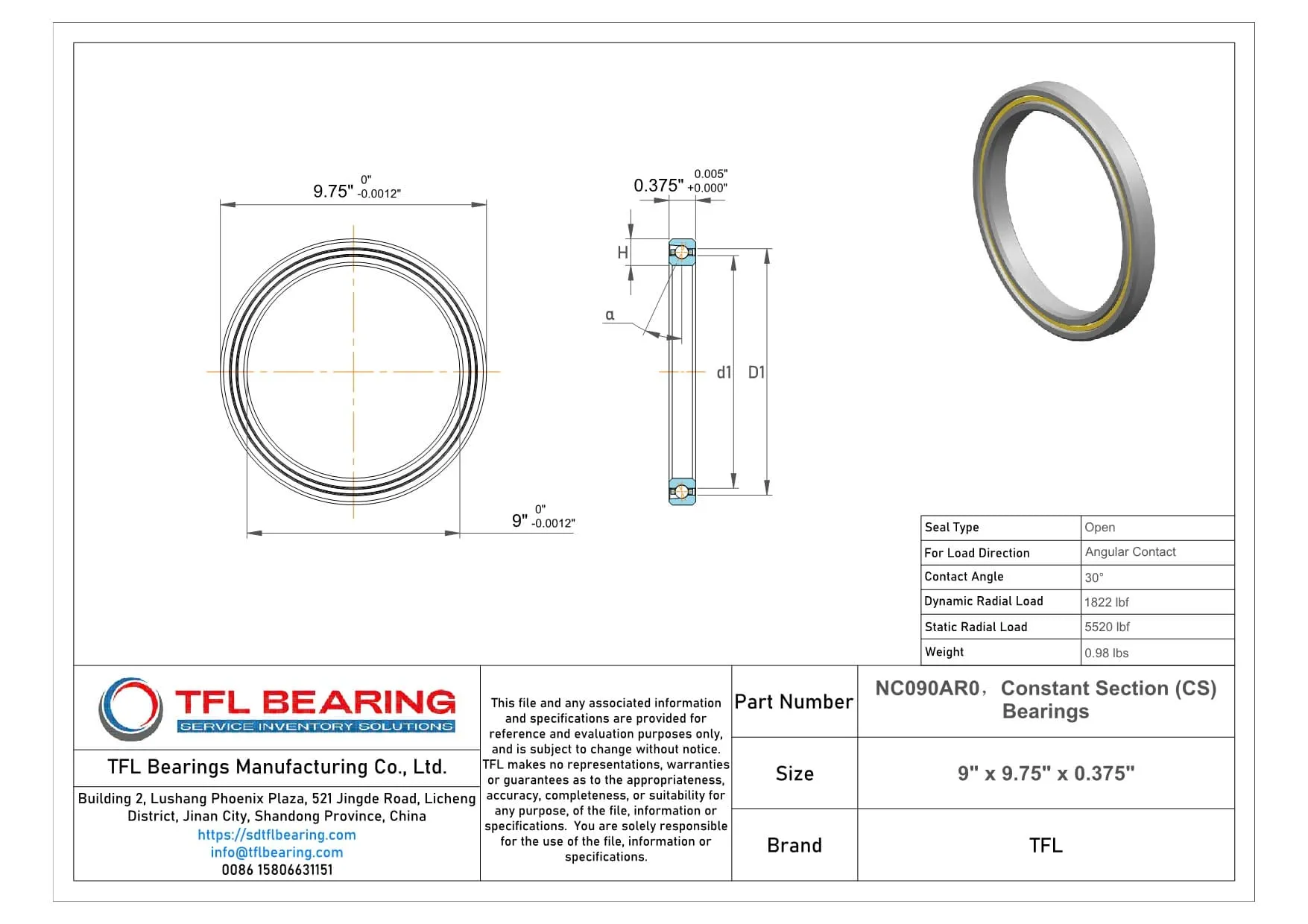

Constant Section (CS) Bearings NC090AR0 dimension drawing
