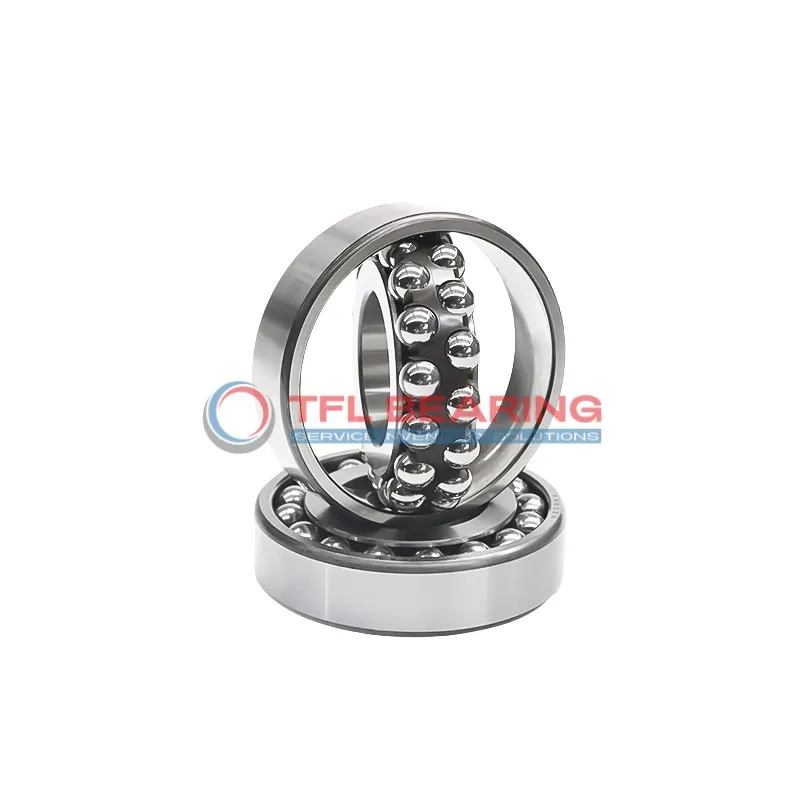

Self Aligning Ball Bearings 2209 EKTN9/C3W64F

Self Aligning Ball Bearings 2209 EKTN9/C3W64F

The 2209 EKTN9/C3W64F is a self-aligning ball bearing with a 45mm tapered bore and 85mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 7312 lbf and operates smoothly at speeds up to 10,000 RPM.

Its double-row design and nylon cage provide durability and reduce friction, while the C3 radial clearance allows for thermal expansion. The open seal makes maintenance straightforward.

This bearing is pre-lubricated and works in temperatures from -30°C to 110°C. It’s interchangeable with SKF models, ideal for machinery with misalignment issues like conveyor systems or agricultural equipment.

Weighing 0.55kg, it’s a robust yet manageable choice for industrial applications. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2209 EKTN9/C3W64F
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 55.32 mm
  • Internal Diameter On Outer Ring 73.2 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 7312 lbf
  • Static Radial Load 2385 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 10000 rpm
  • Weight 0.55 kg
Self Aligning Ball Bearings 2209 EKTN9/C3W64F dimension drawing
Download DWG Download PDF

Features

Performance Features of 2209 EKTN9/C3N9/C3W64F Bearing

2209 EKTN9/C3W64F Bearing features a double-row design, ideal for handling radial loads up to 7312 lbf.
Its chrome steel rings and balls ensure durability, while the nylon cage reduces friction for smoother operation.

The tapered bore design allows for easy installation and secure fitting on shafts.
With a maximum speed of 10,000 rpm, it delivers reliable performance in various applications.

2209 EKTN9/C3W64F Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its C3 radial clearance provides flexibility, making it suitable for different operational conditions.

Application

Industrial Uses of 2209 EKTN9/C3W64F Bearing
2209 EKTN9/C3W64F Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable performance under radial loads in demanding industrial environments.

Where Is 2209 EKTN9/C3W64F Bearing Used?
In automotive applications, 2209 EKTN9/C3W64F Bearing can be found in gearboxes and drivetrains, handling radial loads with ease. The tapered bore provides a secure fit, reducing slippage during high-speed operations.

Built for Heavy-Duty Use: 2209 EKTN9/C3W64F Bearing
This bearing is ideal for heavy machinery like crushers and pulverisers, where its nylon cage reduces friction and noise. The C3 radial clearance allows for thermal expansion in high-temperature settings.

Automotive vs Industrial: Applications of 2209 EKTN9/C3W64F Bearing
In automotive systems, 2209 EKTN9/C3W64F Bearing supports smooth rotation in wheel hubs. For industrial equipment, it excels in pumps and fans, thanks to its robust chrome steel construction.

Perfect Fit for Automation: 2209 EKTN9/C3W64F Bearing
2209 EKTN9/C3W64F Bearing works well in robotic arms, where its self-aligning capability ensures precise movement. The lubricated design minimises maintenance needs in continuous operation.
