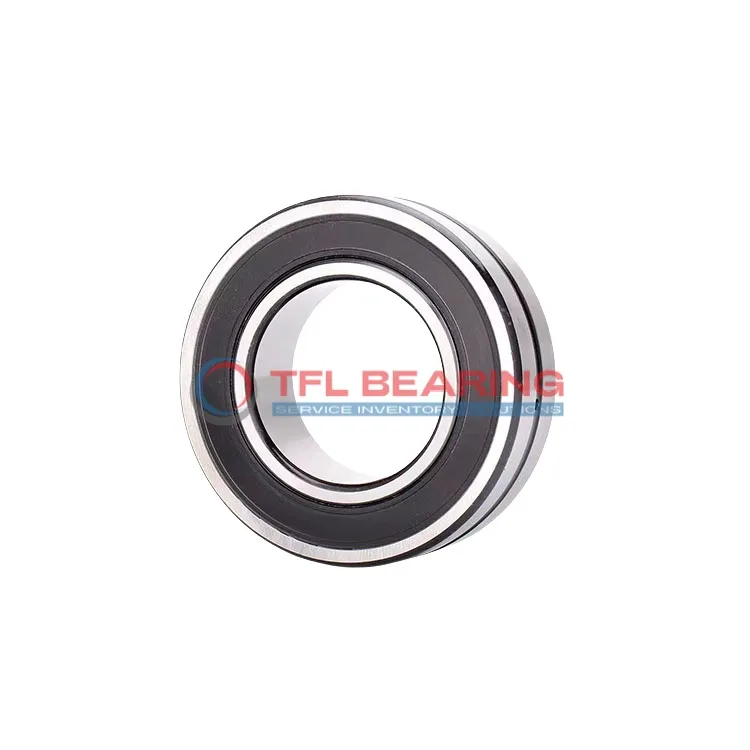

Self Aligning Ball Bearings 2209 E-2RS1TN9/W64

Brand: TFL Bearing Interchangeable: SKF 2209 E-2RS1TN9/W64 45 mm × 85 mm × 23 mm Metric Sealed
Part number: 2209 E-2RS1TN9/W64
Self Aligning Ball Bearings 2209 E-2RS1TN9/W64
In Stock
US$118.14 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia45 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia85 mm
Outer Dia Tolerance-0.015mm to 0
Width23 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring52.9 mm
Internal Diameter On Outer Ring75.25 mm
Chamfer Dimension1.1 mm
Performance
Dynamic Radial Load5,152 lbf
Static Radial Load1,755 lbf
Temperature Range-30° to 110 °C
Max Speed5,300 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceCN
Weight0.53 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2209 E-2RS1TN9/W64 is a self-aligning ball bearing with a 45mm bore and 85mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 5152 lbf and operates smoothly at speeds up to 5300 RPM.

Its double-row design and sealed construction keep dirt out and lubrication in, extending its lifespan. The nylon cage reduces friction, ensuring quiet and efficient performance.

This bearing is pre-lubricated and works in temperatures from -30°C to 110°C. It’s interchangeable with SKF models, making replacements straightforward.

Ideal for machinery with misalignment issues, such as conveyor systems or agricultural equipment. Weighing 0.53kg, it’s a robust choice for demanding applications. Compliant with RoHS and REACH standards.

Features

How Does 2209 E-2RS1TN9/W64 Bearing Reduce Friction?

2209 E-2RS1TN9/W64 Bearing features a double-row design with chrome steel rings and balls, ensuring smooth radial load distribution.
Its nylon cage minimises friction, allowing for quieter operation and reduced energy consumption.
The sealed construction keeps contaminants out, maintaining consistent performance over time.
With a dynamic radial load capacity of 5152 lbf, it delivers reliable operation in various applications.

Application

Industrial Uses of 2209 E-2RS1TN9/W64 Bearing
2209 E-2RS1TN9/W64 Bearing is commonly used in industrial machinery like conveyor systems and fans, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring longer service life in dusty environments.

What Makes 2209 E-2RS1TN9/W64 Bearing a Preferred Choice?
In automotive applications, 2209 E-2RS1TN9/W64 Bearing is ideal for components like electric motors, thanks to its radial load capacity and smooth operation. The nylon cage reduces friction, making it energy-efficient for continuous use.

Perfect Fit for Automation: 2209 E-2RS1TN9/W64 Bearing
For robotics and automation, 2209 E-2RS1TN9/W64 Bearing offers reliable performance in robotic arms and 3D printers. Its double-row construction provides stability, while the lubricated design ensures quiet and efficient movement.

Medical vs Industrial: Where 2209 E-2RS1TN9/W64 Bearing Excels
In medical devices like imaging equipment, 2209 E-2RS1TN9/W64 Bearing’s precision and sealed design are crucial for hygiene and accuracy. Meanwhile, in industrial settings, its durability handles heavy loads with ease.

Where to Use 2209 E-2RS1TN9/W64 Bearing
For household appliances like washing machines, 2209 E-2RS1TN9/W64 Bearing’s self-aligning capability and sealed construction make it a dependable choice. The chrome steel rings ensure long-lasting performance even with frequent use.
