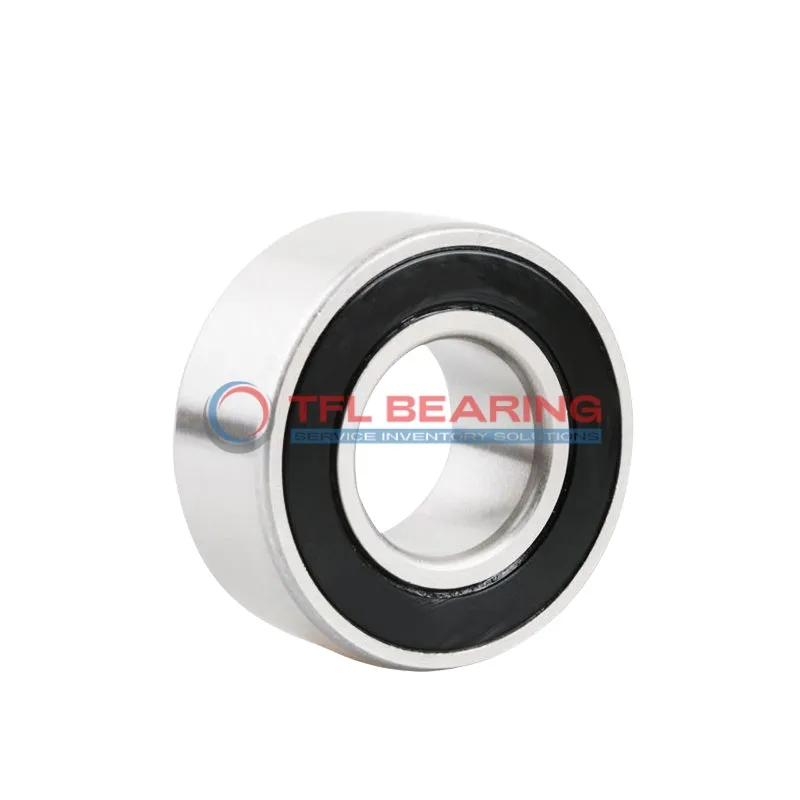

Self Aligning Ball Bearings 2209 E-2RS1KTN9/C3

Brand: TFL Bearing Interchangeable: SKF 2209 E-2RS1KTN9/C3 45 mm × 85 mm × 23 mm Metric Sealed
Part number: 2209 E-2RS1KTN9/C3
Self Aligning Ball Bearings 2209 E-2RS1KTN9/C3
In Stock
US$87.10 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia45 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia85 mm
Outer Dia Tolerance-0.015mm to 0
Width23 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring52.9 mm
Internal Diameter On Outer Ring75.25 mm
Chamfer Dimension1.1 mm
Performance
Dynamic Radial Load5,152 lbf
Static Radial Load1,755 lbf
Temperature Range-30° to 110 °C
Max Speed5,300 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceC3
Weight0.53 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2209 E-2RS1KTN9/C3 is a self-aligning ball bearing measuring 45mm by 85mm by 23mm, crafted from durable chrome steel. It handles radial loads up to 5152 lbf and operates smoothly at speeds up to 5300 RPM.

Its double-row design with sealed construction keeps dirt out and lubrication in, reducing maintenance needs. The nylon cage ensures quiet operation and long service life.

This bearing features a C3 radial clearance, making it suitable for applications with slight misalignments or thermal expansion. It works well in temperatures from -30°C to 110°C.

Ideal for industrial machinery or agricultural equipment where alignment flexibility is needed. Weighing 0.53kg, it’s a robust yet manageable solution for various radial load scenarios. Compliant with RoHS and REACH standards.

Features

How Does 2209 E-2RS1KTN9/C3 Bearing Ensure Smooth Radial Load Handling?

2209 E-2RS1KTN9/C3 Bearing features a double-row design with chrome steel rings and balls, optimised for radial load distribution.
Its dynamic radial load capacity of 5152 lbf ensures reliable performance in various applications.

The sealed design and nylon cage reduce friction and protect against contaminants, extending service life.
With a maximum speed of 5,300 rpm, it maintains efficiency while handling radial loads smoothly.

The C3 radial clearance allows for thermal expansion, making it suitable for a wide temperature range.
Its tapered bore design ensures secure fitting, reducing installation time and effort.

Application

Where Is 2209 E-2RS1KTN9/C3 Bearing Used?
2209 E-2RS1KTN9/C3 Bearing is commonly used in industrial fans and pumps, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, extending service life in dusty environments.

In conveyor systems, 2209 E-2RS1KTN9/C3 Bearing handles radial loads smoothly, thanks to its double-row construction. The nylon cage reduces friction, making it energy-efficient for continuous operation.

For agricultural machinery, 2209 E-2RS1KTN9/C3 Bearing’s tapered bore ensures a secure fit on shafts, even under heavy vibrations. Its C3 clearance allows for thermal expansion in varying temperatures.
