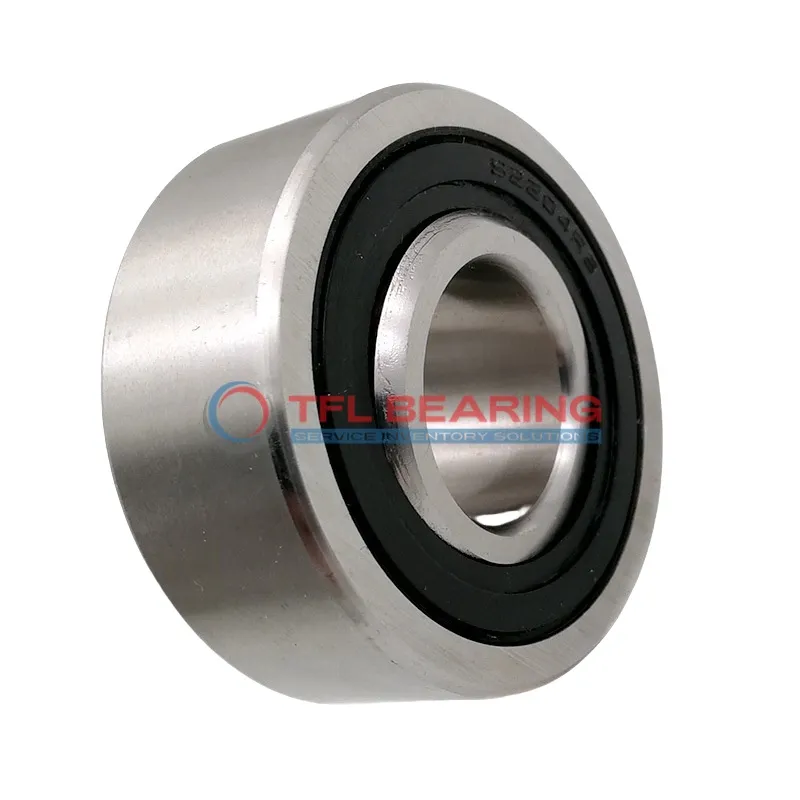

Self Aligning Ball Bearings 2206 2RS

Self Aligning Ball Bearings 2206 2RS

The 2206 2RS is a self-aligning ball bearing with a 30mm bore and 62mm outer diameter, designed for radial loads. Its compact 20mm width makes it suitable for tight spaces, while the double-row construction offers stability.

Made from chrome steel with a nylon cage, it handles dynamic loads up to 3510 lbf and spins smoothly at 7500 RPM. The sealed design keeps lubrication in and contaminants out, reducing maintenance needs.

This bearing works well in temperatures from -30°C to 110°C, making it versatile for various environments. It’s interchangeable with SKF models, simplifying replacements.

Ideal for applications like conveyor systems or agricultural machinery where misalignment can occur. Weighing 0.26kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2206 2RS
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 36.7 mm
  • Internal Diameter On Outer Ring 54.06 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 3510 lbf
  • Static Radial Load 1046 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 7500 rpm
  • Weight 0.26 kg
  • Price（$） 39.43
Self Aligning Ball Bearings 2206 2RS dimension drawing
Download DWG Download PDF

Features

Why Choose 2206 2RS Bearing for Precision Tasks?

2206 2RS Bearing features a double-row ball design, ensuring smooth radial load distribution for precise applications.
Its sealed construction protects against contaminants, making it suitable for various environments.

The chrome steel rings and balls enhance durability, while the nylon cage reduces friction and noise.
With a dynamic radial load capacity of 3510 lbf, it handles demanding tasks with ease.

2206 2RS Bearing operates efficiently at speeds up to 7,500 rpm, balancing performance and longevity.
Its temperature range of -30° to 110°C ensures reliability in diverse working conditions.

Application

Industrial Uses of 2206 2RS Bearing
2206 2RS Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring longer service life in dusty environments.

In automotive applications, 2206 2RS Bearing fits well in wheel hubs and transmission systems, thanks to its radial load capacity. The nylon cage reduces noise, making it suitable for passenger vehicles.

For robotics, 2206 2RS Bearing offers smooth movement in joint assemblies, where precision is key. Its chrome steel construction provides durability even in high-speed operations.

Around the home, 2206 2RS Bearing can be found in washing machines, where its sealed design resists water and detergent. The metric sizing ensures compatibility with various European appliance brands.
