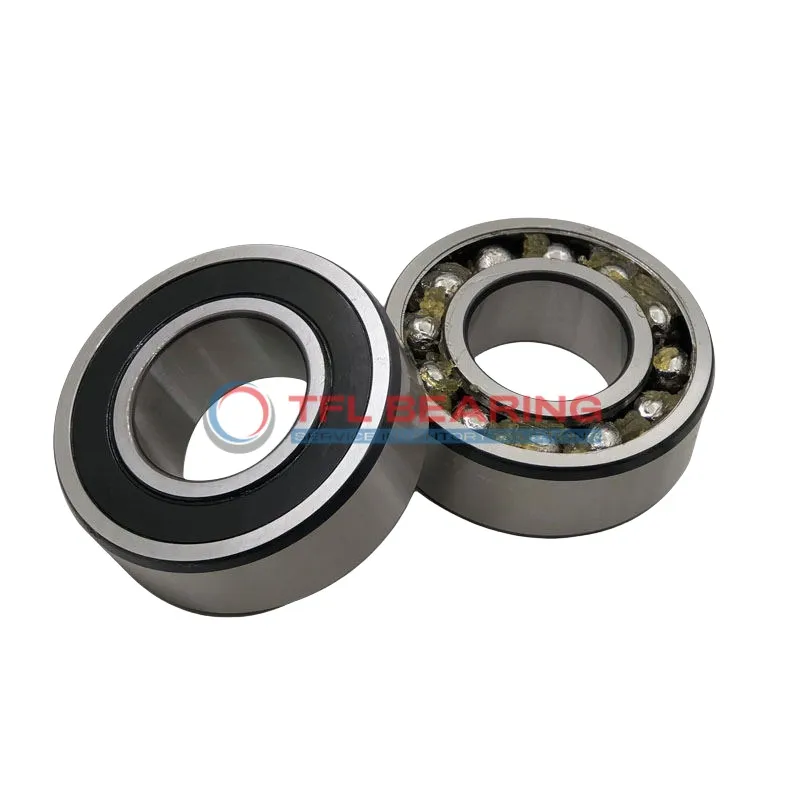

Self Aligning Ball Bearings 2309 E-2RS1TN9/C3

Brand: TFL Bearing Interchangeable: SKF 2309 E-2RS1TN9/C3 45 mm × 100 mm × 36 mm Metric Sealed
Part number: 2309 E-2RS1TN9/C3
Self Aligning Ball Bearings 2309 E-2RS1TN9/C3
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia45 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia100 mm
Outer Dia Tolerance-0.015mm to 0
Width36 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring60.9 mm
Internal Diameter On Outer Ring90 mm
Chamfer Dimension1.5 mm
Performance
Dynamic Radial Load8,775 lbf
Static Radial Load3,015 lbf
Temperature Range-30° to 110 °C
Max Speed4,300 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceC3
Weight1.3 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2309 E-2RS1TN9/C3 is a self-aligning ball bearing with a 45mm bore and 100mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 8775 lbf and operates smoothly at speeds up to 4300 RPM.

Its double-row design and sealed construction help it stay aligned and protected from dust, while the nylon cage reduces friction. The bearing is pre-lubricated for easy use and works in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. It’s well-suited for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 1.3kg, it’s a robust choice for heavy-duty use. Compliant with RoHS and REACH standards, it’s safe for various industrial environments.

Features

Performance Features of 2309 E-2RS1TN9/C3 Bearing

2309 E-2RS1TN9/C3 Bearing is designed with a double-row ball construction, providing excellent radial load capacity.
Its dynamic radial load rating of 8775 lbf ensures reliable performance in various applications.

The sealed design of 2309 E-2RS1TN9/C3 Bearing protects against contaminants, extending its service life.
Nylon cage material reduces friction and noise, making it suitable for smooth operation.

2309 E-2RS1TN9/C3 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its C3 radial clearance allows for thermal expansion, ensuring consistent performance under varying conditions.

With a maximum speed of 4,300 rpm, 2309 E-2RS1TN9/C3 Bearing balances speed and durability.
The chrome steel rings and balls provide strength and resistance to wear.

Application

Industrial Uses of 2309 E-2RS1TN9/C3 Bearing
2309 E-2RS1TN9/C3 Bearing is commonly used in industrial machinery, especially in applications where misalignment might occur, such as conveyor systems and heavy-duty fans. Its double-row design helps accommodate radial loads efficiently, ensuring smooth operation.
The sealed construction of 2309 E-2RS1TN9/C3 Bearing makes it suitable for dusty or humid environments, reducing maintenance needs. This feature is particularly useful in agricultural equipment and construction machinery.

What Makes 2309 E-2RS1TN9/C3 Bearing a Preferred Choice?
2309 E-2RS1TN9/C3 Bearing is often chosen for automotive applications like wheel hubs and transmissions due to its ability to handle radial loads and slight misalignments. The nylon cage provides quiet operation, which is ideal for passenger vehicles.
In automation systems, 2309 E-2RS1TN9/C3 Bearing supports robotic arms and assembly line equipment, where precision and durability are key. Its lubricated design ensures long service life even in high-speed scenarios.

Built for Heavy-Duty Use: 2309 E-2RS1TN9/C3 Bearing
2309 E-2RS1TN9/C3 Bearing is a reliable option for medical devices like diagnostic equipment, where consistent performance is essential. The chrome steel construction offers resistance to wear and corrosion.
For household appliances such as washing machines, 2309 E-2RS1TN9/C3 Bearing provides smooth and quiet operation. Its sealed design helps keep out dust and moisture, extending the lifespan of the appliance.
