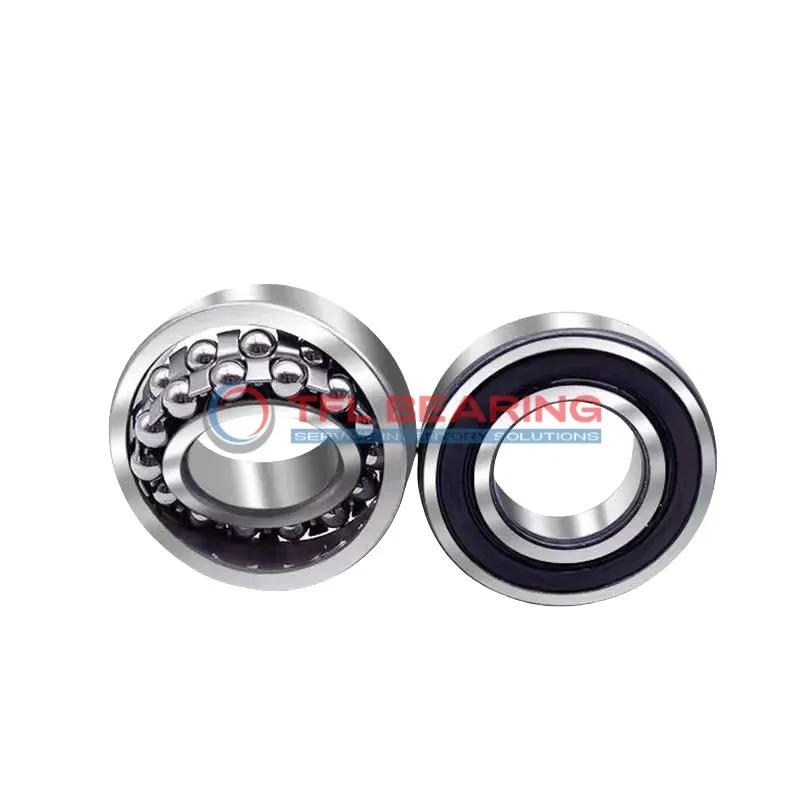

Self Aligning Ball Bearings 2203 E-2RS1TN9

Self Aligning Ball Bearings 2203 E-2RS1TN9

The 2203 E-2RS1TN9 is a self-aligning ball bearing with a 17mm bore and 40mm outer diameter, compact at just 16mm wide. Made from chrome steel, it handles radial loads up to 1989 lbf and spins smoothly at 12,000 RPM.

Its double-row design and sealed construction keep dirt out and lubrication in, while the nylon cage reduces noise. The bearing works in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for applications like electric motors or conveyors where slight misalignment may occur.

Weighing only 0.089kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2203 E-2RS1TN9
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 40 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 21.1 mm
  • Internal Diameter On Outer Ring 34.98 mm
  • Chamfer Dimension 0.6 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 1989 lbf
  • Static Radial Load 495 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 12000 rpm
  • Weight 0.089 kg
  • Price（$） 31.99
Self Aligning Ball Bearings 2203 E-2RS1TN9 dimension drawing
Download DWG Download PDF

Features

Why Choose 2203 E-2RS1TN9 Bearing for Precision Tasks?

2203 E-2RS1TN9 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 1989 lbf makes it suitable for demanding applications.

The sealed construction and nylon cage provide smooth operation and reduce maintenance needs.
With a maximum speed of 12,000 rpm, it balances performance and durability.

2203 E-2RS1TN9 Bearing operates efficiently in temperatures ranging from -30° to 110 °C.
Its compact size (17 mm×40 mm×16 mm) makes it ideal for space-constrained installations.

Application

Common Applications of 2203 E-2RS1TN9 Bearing
2203 E-2RS1TN9 Bearing works well in conveyor systems, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, extending service life in dusty environments.

In automotive applications, 2203 E-2RS1TN9 Bearing is often used in electric motors and fans, thanks to its reliable radial load capacity. The nylon cage reduces noise, making it suitable for quieter vehicle components.

For home appliances like washing machines, 2203 E-2RS1TN9 Bearing handles unbalanced loads smoothly. Its lubricated construction ensures low maintenance, ideal for everyday household use.

Where Is 2203 E-2RS1TN9 Bearing Used?
You’ll find 2203 E-2RS1TN9 Bearing in industrial fans, where its double-row design supports consistent performance. The chrome steel rings provide durability even in continuous operation.

In robotics, 2203 E-2RS1TN9 Bearing fits well in joint mechanisms due to its self-aligning capability. The metric sizing makes it easy to integrate into various automation setups.
