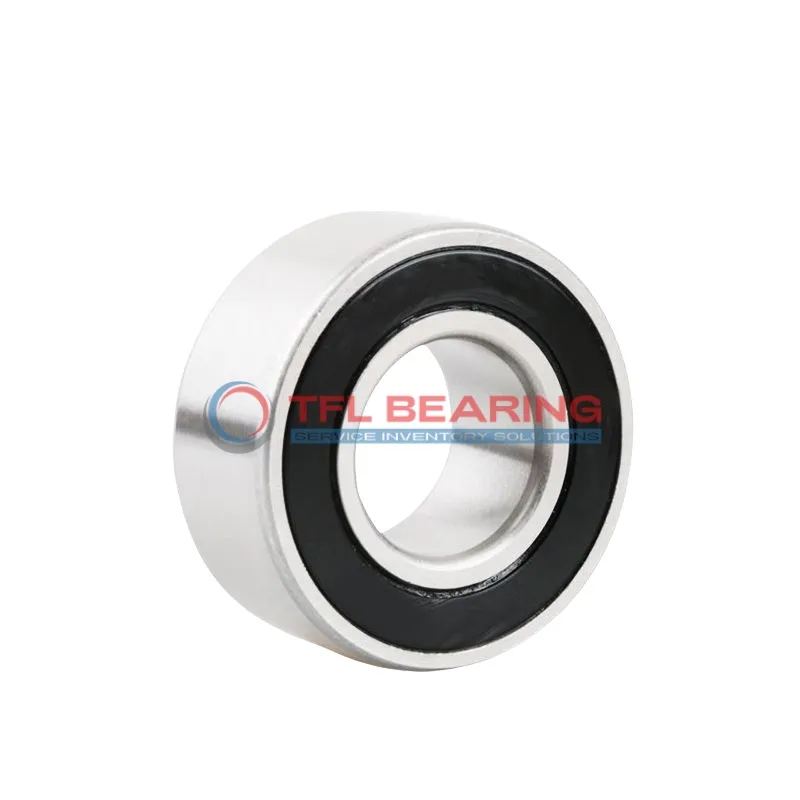

Self Aligning Ball Bearings 2209 2RS KOYO

The 2209 2RS KOYO is a self-aligning ball bearing with a 45mm bore and 85mm outer diameter, designed for radial loads. Its compact 23mm width makes it suitable for tight spaces, while the double-row construction enhances stability.

Made from chrome steel with a nylon cage, it handles radial loads up to 5152 lbf and operates smoothly at speeds up to 5300 RPM. The sealed design keeps lubrication in and contaminants out, reducing maintenance needs.

This bearing works well in temperatures from -30°C to 110°C and is interchangeable with SKF models. Ideal for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 0.53kg, it’s a durable yet lightweight option. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 2209 2RS KOYO
Brand TFL & OEM
Interchangeable SKF
Bore Dia 45 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 85 mm
Outer Dia Tolerance -0.015mm to 0
Width 23 mm
Width Tolerance -0.12mm to 0
External Diameter On Inner Ring 52.9 mm
Internal Diameter On Outer Ring 75.25 mm
Chamfer Dimension 1.1 mm
System of Measurement Metric
Bearing Type Ball
Bore Type Taper 1:12
For Load Direction Radial
Construction Double Row
Seal Type Sealed
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Nylon
Dynamic Radial Load 5152 lbf
Static Radial Load 1755 lbf
Lubrication Lubricated
Temperature Range -30° to 110 °C
Radial Clearance CN
RoHS Compliant
REACH Compliant
Max Speed 5300 rpm
Weight 0.53 kg

Self Aligning Ball Bearings 2209 2RS KOYO dimension drawing

Download DWG Download PDF

Features

How Does 2209 2RS KOYO Bearing Reduce Friction?

2209 2RS KOYO Bearing features a double-row design with chrome steel rings and balls, ensuring smooth radial load distribution.
The nylon cage minimises friction, enhancing efficiency and reducing wear during operation.
With a dynamic radial load capacity of 5152 lbf, it handles demanding applications with ease.
Its sealed design keeps lubrication intact, maintaining performance in various conditions.

Why Choose 2209 2RS KOYO Bearing for Precision Tasks?

2209 2RS KOYO Bearing’s tapered bore design ensures precise alignment, reducing stress on the bearing.
The chrome steel construction provides durability, while the nylon cage lowers noise and vibration.
It supports a maximum speed of 5,300 rpm, making it suitable for high-precision machinery.
The sealed design also protects against contaminants, ensuring long-term reliability.

Engineered for Reliability: 2209 2RS KOYO Bearing

2209 2RS KOYO Bearing is built with high-quality chrome steel for consistent performance under radial loads.
Its double-row configuration and sealed design enhance durability in harsh environments.
The bearing operates smoothly within a temperature range of -30° to 110°C, adapting to various conditions.
With a static radial load capacity of 1755 lbf, it offers dependable support for industrial applications.

Application

Industrial Uses of 2209 2RS KOYO Bearing
2209 2RS KOYO Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring long service life in dusty environments.

In automotive applications, 2209 2RS KOYO Bearing fits well in wheel hubs and suspension systems, thanks to its radial load capacity. The nylon cage reduces friction, making it suitable for smooth, quiet operation.

For automation equipment, 2209 2RS KOYO Bearing supports robotic arms and assembly lines, where precision and reliability are key. Its tapered bore ensures a secure fit, preventing slippage during high-speed movements.

In household appliances like washing machines, 2209 2RS KOYO Bearing handles unbalanced loads with ease. The chrome steel construction provides durability, even under constant use.
