Self Aligning Ball Bearings 2202 E-2RS1TN9/C3

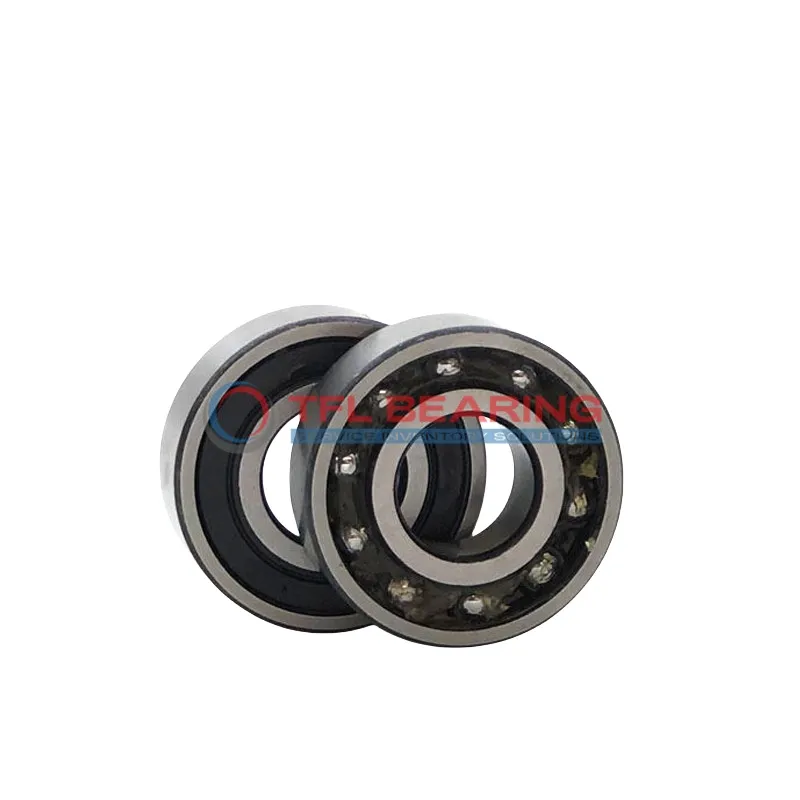

Self Aligning Ball Bearings 2202 E-2RS1TN9/C3

The 2202 E-2RS1TN9/C3 is a self-aligning ball bearing with a 15mm bore and 35mm outer diameter, compact at just 14mm wide. Made from chrome steel, it handles radial loads up to 1667 lbf and spins smoothly at 14,000 RPM.

Its double-row design and sealed construction help it stay aligned in misaligned shafts, while the nylon cage reduces noise. Pre-lubricated and ready to use, it works in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making replacements easy. Ideal for applications like electric motors or conveyors where slight shaft misalignment may occur.

Weighing only 0.058kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2202 E-2RS1TN9/C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 14 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 19.05 mm
  • Internal Diameter On Outer Ring 30.4 mm
  • Chamfer Dimension 0.6 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 1667 lbf
  • Static Radial Load 396 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 14000 rpm
  • Weight 0.058 kg
Self Aligning Ball Bearings 2202 E-2RS1TN9/C3 dimension drawing
Download DWG Download PDF

Features

Why Choose 2202 E-2RS1TN9/C3 Bearing for Precision Tasks?

2202 E-2RS1TN9/C3 Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 1667 lbf makes it suitable for applications requiring accuracy and durability.
The sealed design and nylon cage help maintain smooth operation while protecting against contaminants.
With a maximum speed of 14,000 rpm, it offers reliable performance in various conditions.

Application

Industrial Uses of 2202 E-2RS1TN9/C3 Bearing
2202 E-2RS1TN9/C3 Bearing is commonly used in conveyor systems, where its self-aligning feature helps accommodate minor misalignments. The sealed design keeps contaminants out, ensuring long-lasting performance in dusty environments.

Where Is 2202 E-2RS1TN9/C3 Bearing Used?
In automotive applications, 2202 E-2RS1TN9/C3 Bearing fits well in electric motors and gearboxes, thanks to its radial load capacity. The nylon cage reduces friction, making it ideal for high-speed operations.

Built for Heavy-Duty Use: 2202 E-2RS1TN9/C3 Bearing
2202 E-2RS1TN9/C3 Bearing excels in industrial fans, where its double-row construction handles heavy loads effortlessly. The C3 radial clearance allows for thermal expansion, ensuring reliability in varying temperatures.

Medical vs Industrial: Where 2202 E-2RS1TN9/C3 Bearing Excels
In medical devices like lab equipment, 2202 E-2RS1TN9/C3 Bearing offers smooth operation due to its precision engineering. Meanwhile, in industrial settings, its durability makes it a go-to for machinery requiring consistent performance.

Perfect Fit for Automation: 2202 E-2RS1TN9/C3 Bearing
2202 E-2RS1TN9/C3 Bearing is a great choice for robotic arms, where its self-aligning capability compensates for slight misalignments. The lubricated design ensures minimal maintenance, perfect for automated systems.
